Buy Kern Platform scales IOC 60K-3 Weight range 60 kg Readability 1 g, 2 g via PSU

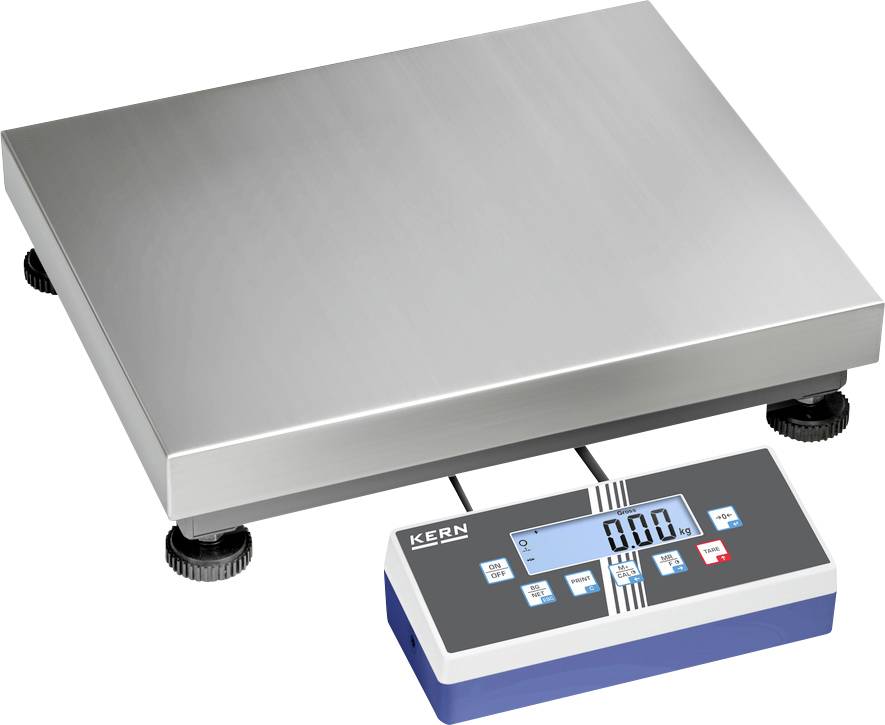

A digital scale with a stainless steel platform displays '0.00 kg' on the screen. It has adjustment buttons on the feet for height modification.

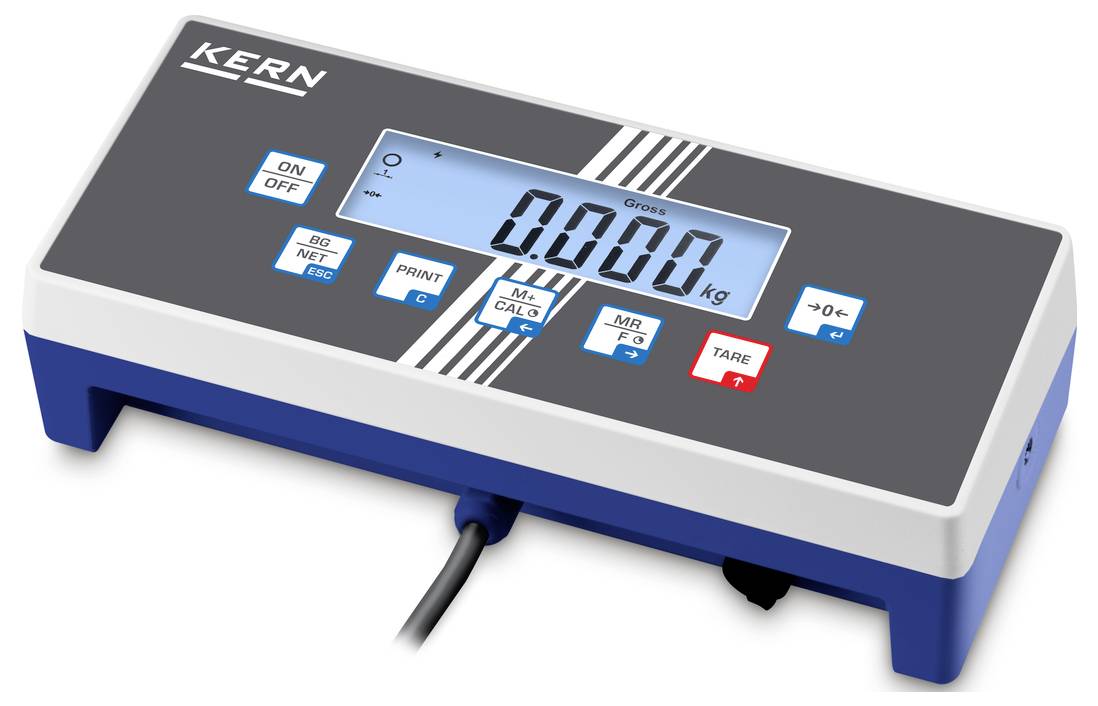

Digital scale with blue display showing '0.000 kg'. Control buttons: 'ON/OFF', 'TARE', 'PRINT', 'CAL', for weight measurement.

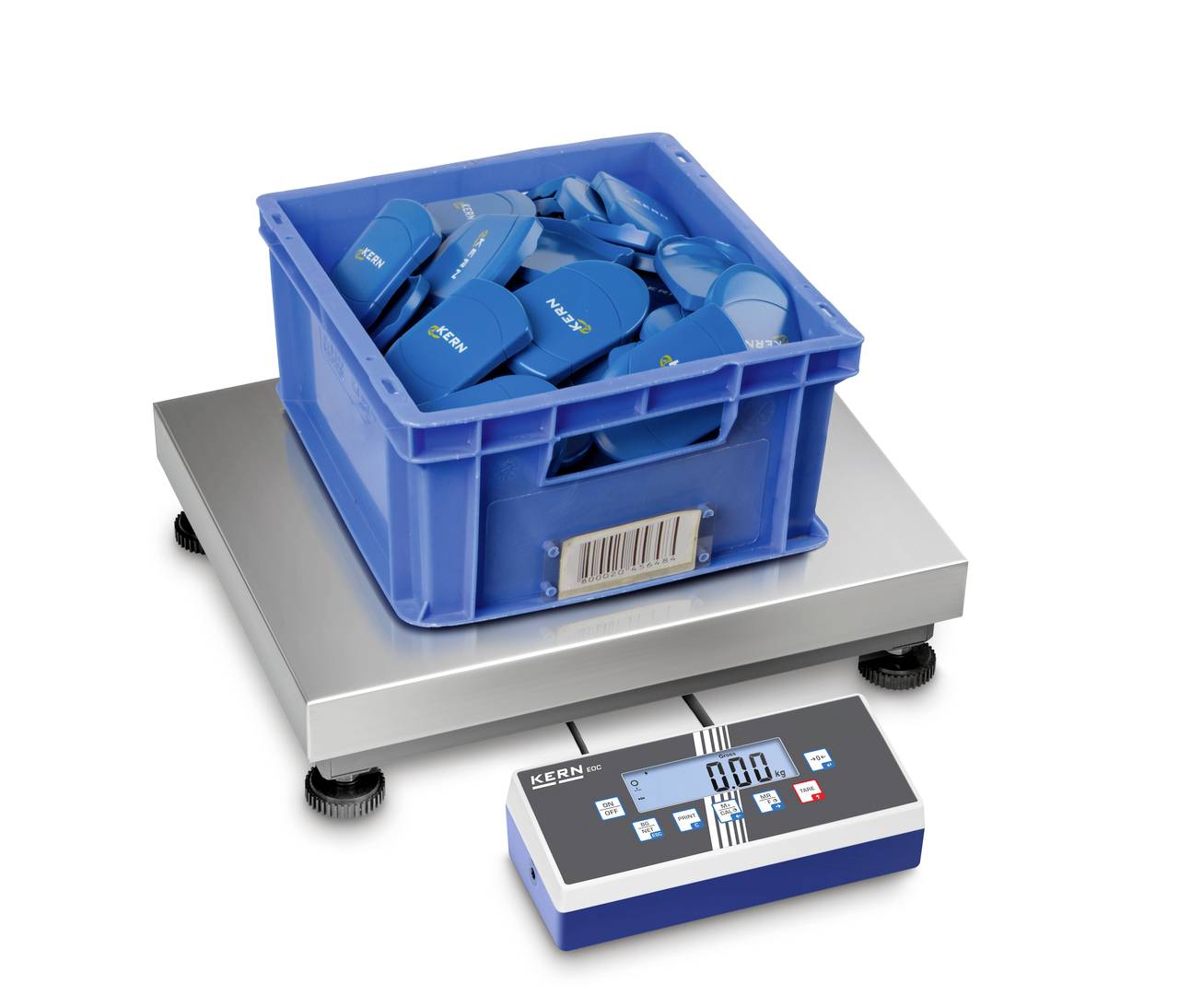

Blue plastic crate full of blue keyrings on a digital scale. The scale display shows 0.00 kg.

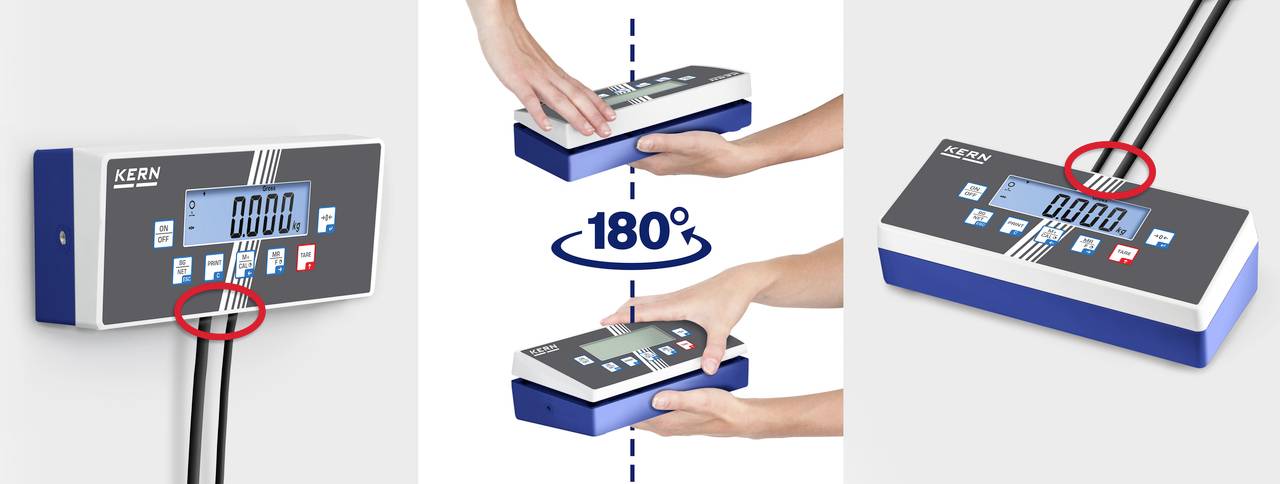

'The illustration shows a display with the inscription "0.00" with a 180-degree rotatable mount. Hands are turning the device to a new position.'

1/4

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Display type: LCD
Display digit height - large: 25 mm

Weight range: 60 kg

Product type: Platform scales

Readability: 1 g
2 g

Display: Digital

Power supply (LOV): via PSU

: Manufacturer's standards (no certificate)

Dim: (L x W x H) 300 x 400 x 110 mm

Weight: 8 kg

Weight resolution: 0.002 kg

Calibratable: No

Weighing plate: Stainless steel

Width: 400 mm

Height: 110 mm

Length: 300 mm

Reproducibility: 0.001 kg
0.002 kg

Type: IOC 60K-3

Features: Calibratable

Top plate (width): 400 mm

Top plate (length): 300 mm

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2498152 Kern Platform scales IOC 60K-3 Weight range 60 kg Readability 1 g, 2 g via PSU

User & Safety Instructions

User & Safety Instructions 2498152 Kern Platform scales IOC 60K-3 Weight range 60 kg Readability 1 g, 2 g via PSU

Information

Information 2498152 Kern Platform scales IOC 60K-3 Weight range 60 kg Readability 1 g, 2 g via PSU

Description

Industry 4.0: A wide range of (optional) data interfaces enable easy transfer of weighing data to tablets, laptops, PCs, networks, smartphones, Printers, etc. High mobility: Thanks to battery operation (optional) and compact, lightweight design suitable for use at several locations (laboratory, production, quality inspection, order picking etc.). Platform: Stainless steel weighing plate, painted steel substructure, silicone-coated aluminum load cell, dust and splash-water protection IP65. Spirit level and foot screws for exact leveling of the scale as standard, thus exact weighing results. Query and remote control of the scale via external control devices or computers using Kern Communication Protocol (KCP). The KCP is a standardized interface command set for CORE scales and other instruments that allows the retrieval and control of all relevant parameters and device functions. Kern devices with KCP can be connected to computers, industrial controls and other digital systems very easily. The KCP protocol is largely compatible with the MT-SICS protocol. Only possible via RS-232 data interface, further interfaces on request.

This text is machine translated.
