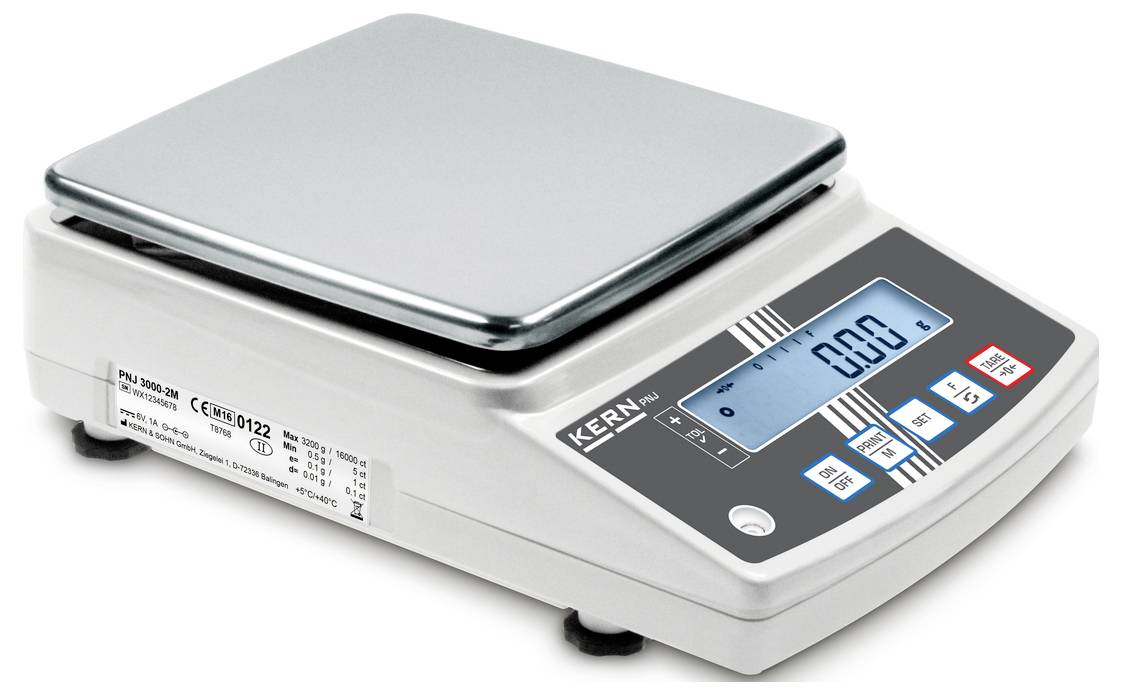

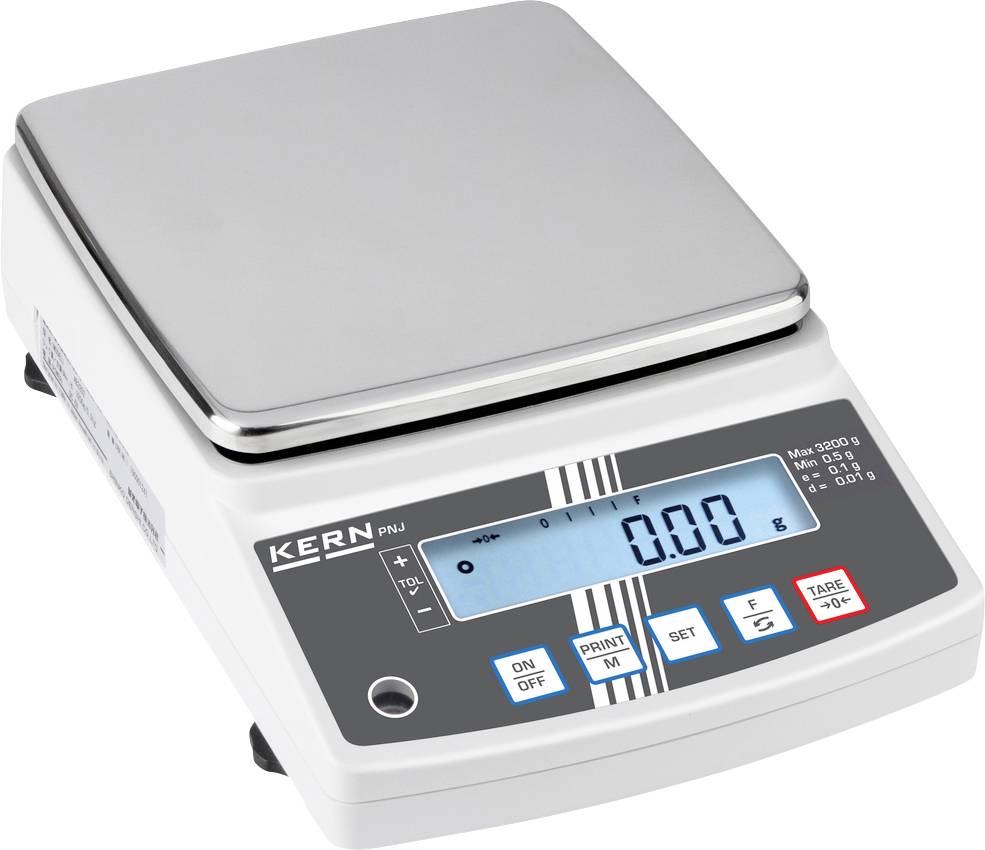

Kern PNJ 3000-2M Precision scales Weight range 3.200 kg Readability 0.01 g via PSU Multicolour
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
The new standard in the laboratory with the robust tuning fork weighing system
- PNJ only: Internal adjustment mechanism, guarantees high accuracy and makes location-independant. ideal for mobile, reportable applications, such as ambulatory gold and jewelry
- PNS only: CAL calibration program for adjusting the accuracy using an external test weight
- High-quality tuning fork weighing system for fast display of weighing value, precise dosing and high mechanical robustness
- Capacity indicator: An increasing light band indicates the remaining available weighing range
- Accurate counting: Automatic reference optimization gradually improves the average part weight
- Compact dimensions, advantageous in confined spaces
- Large, impact-resistant stainless steel weighing plate
- Large glass windguard with 3 sliding doors for easy access to the weighing material, for models with weighing plate size Ø 140 mm, weighing room B×T×H 172×171×160 mm,
- This text is machine translated.
Technical specifications
- Series
PNJ
- Weight range
3.200 kg
- Product type
Precision scales
- Weight resolution
0.01 g
- Readability
0.01 g
- Weighing plate dimensions
190 mm x 190 mm
- Load capacity
3200 g
- Display
Digital
- Power supply (LOV)
via PSU
Manufacturer's standards (no certificate)
- Factory colour
Multicolour
- Power supply (details)
220 V - 240 V AC, 50 Hz
- Dim
(L x W x H) 293 x 196 x 89 mm
- Weight
3.6 kg
- Calibratable
Yes
- Calibration service
963-127
- Weighing plate
Stainless steel
- Width
196 mm
- Height
89 mm
- Length
293 mm
- Reproducibility
0.01 g
- Type
PNJ 3000-2M
- Features
Calibratable
Counting
Calibratable
- Top plate (width)
190 mm
- Top plate (length)
190 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1551751 Kern PNJ 3000-2M Precision scales Weight range 3.200 kg Readability 0.01 g via PSU Multicolour
User & Safety Instructions
User & Safety Instructions 1551751 Kern PNJ 3000-2M Precision scales Weight range 3.200 kg Readability 0.01 g via PSU Multicolour
Information
Information 1551751 Kern PNJ 3000-2M Precision scales Weight range 3.200 kg Readability 0.01 g via PSU Multicolour
Description
Hints
The selected product is a calibration approved part.If there is a need to be calibrated according to EU directives, please order the conformity assessment (calibration) via the optional accessories.Subsequent initial calibration is not possible.In the case of articles with first-time verification, the right of withdrawal is fundamentally excluded.Under the EU Directive 2014/31/EU, scales must be officially conformity-assessed ("calibrated") when used as follows:a) in the course of business, if the price of a commodity is determined by weighing.b) in the manufacture of medicinal products in pharmacies and in analyzes in the medical and pharmaceutical laboratories.c) for official purposes.d) in the manufacture of prepackages.e) in medicine.
