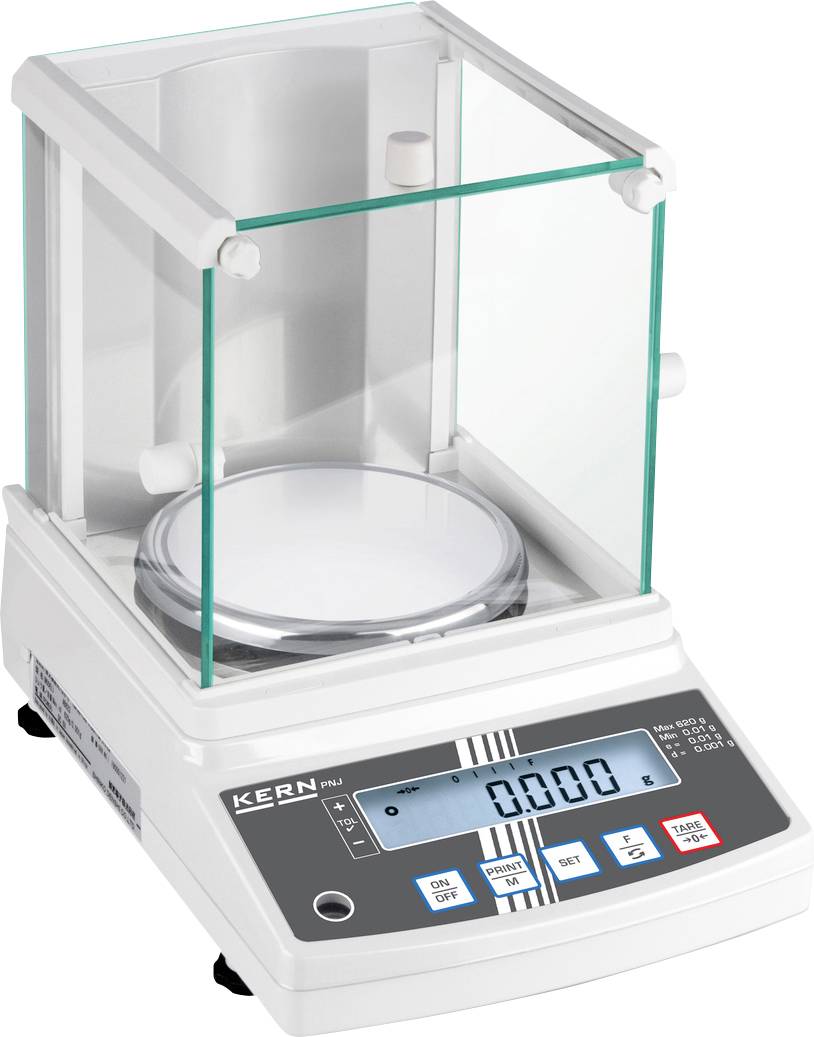

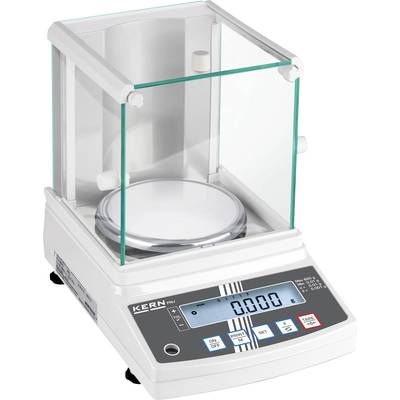

Kern PNJ 600-3M Precision scales Weight range 620 g Readability 0.001 g via PSU Multicolour
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Kern PNJ 600-3M Precision scales Weight range 620 g Readability 0.001 g via PSU Multicolour
- PNJ only: Internal adjustment mechanism, guarantees high accuracy and makes location-independant. ideal for mobile, reportable applications, such as ambulatory gold and jewelry
- PNS only: CAL calibration program for adjusting the accuracy using an external test weight
- High-quality tuning fork weighing system for fast display of weighing value, precise dosing and high mechanical robustness
- Capacity indicator: An increasing light band indicates the remaining available weighing range
- Accurate counting: Automatic reference optimization gradually improves the average part weight
- Compact dimensions, advantageous in confined spaces
- Large, impact-resistant stainless steel weighing plate
- Large glass windguard with 3 sliding doors for easy access to the weighing material, for models with weighing plate size Ø 140 mm, weighing room B×T×H 172×171×160 mm,
- This text is machine translated.
Technical specifications
- Weight range
620 g
- Product type
Precision scales
- Readability
0.001 g
- Weighing plate dimensions
140 mm
- Display
Digital
- Power supply (LOV)
via PSU
Manufacturer's standards (no certificate)
- Factory colour
Multicolour
- Power supply (details)
220 V - 240 V AC, 50 Hz
- Dim
(L x W x H) 293 x 196 x 266 mm
- Weight
4.2 kg
- Calibratable
Yes
- Calibration service
963-127
- Weighing plate
Stainless steel
- Width
196 mm
- Height
266 mm
- Length
293 mm
- Reproducibility
0.001 g
- Type
PNJ 600-3M
- Features
Calibratable
Counting
Calibratable
- Top plate (Ø)
140 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1552480 Kern PNJ 600-3M Precision scales Weight range 620 g Readability 0.001 g via PSU Multicolour
User & Safety Instructions
User & Safety Instructions 1552480 Kern PNJ 600-3M Precision scales Weight range 620 g Readability 0.001 g via PSU Multicolour
Information
Information 1552480 Kern PNJ 600-3M Precision scales Weight range 620 g Readability 0.001 g via PSU Multicolour
Description
Hints
The selected product is a calibration approved part.If there is a need to be calibrated according to EU directives, please order the conformity assessment (calibration) via the optional accessories.Subsequent initial calibration is not possible.In the case of articles with first-time verification, the right of withdrawal is fundamentally excluded.Under the EU Directive 2014/31/EU, scales must be officially conformity-assessed ("calibrated") when used as follows:a) in the course of business, if the price of a commodity is determined by weighing.b) in the manufacture of medicinal products in pharmacies and in analyzes in the medical and pharmaceutical laboratories.c) for official purposes.d) in the manufacture of prepackages.e) in medicine.
