Kern Scales assembly kit CW 3000RKFN Weight range 3000 kg
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Sauter CW 3000RKFN mod kit
- Scales kit for individual construction of floor scales – suitable for rough industrial use under moist conditions
- This text is machine translated.
Technical specifications
- Weight range
3000 kg
- Product type
Scales assembly kit
Manufacturer's standards (no certificate)
- Calibratable
Yes
- Weighing plate
Steel
- Type
CW 3000RKFN
- Features
Calibratable
- Series
CW KFN
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3702050 Kern Scales assembly kit CW 3000RKFN Weight range 3000 kg
User & Safety Instructions
User & Safety Instructions 3702050 Kern Scales assembly kit CW 3000RKFN Weight range 3000 kg
Information
Information 3702050 Kern Scales assembly kit CW 3000RKFN Weight range 3000 kg
Description
Features
- With the Sauter scales kits individual weighing solutions, e.g. individual weighing systems in industry, vehicle construction and agriculture can be built. This allows versatile requirements to be implemented on dimensions, materials, combinable peripherals, etc. Particularly suitable for the construction of platform scales, funnel scales, silo scales, embedded in the floor and other weighing devices. Range of application: Mass and pressure measurements under harsh environmental conditions

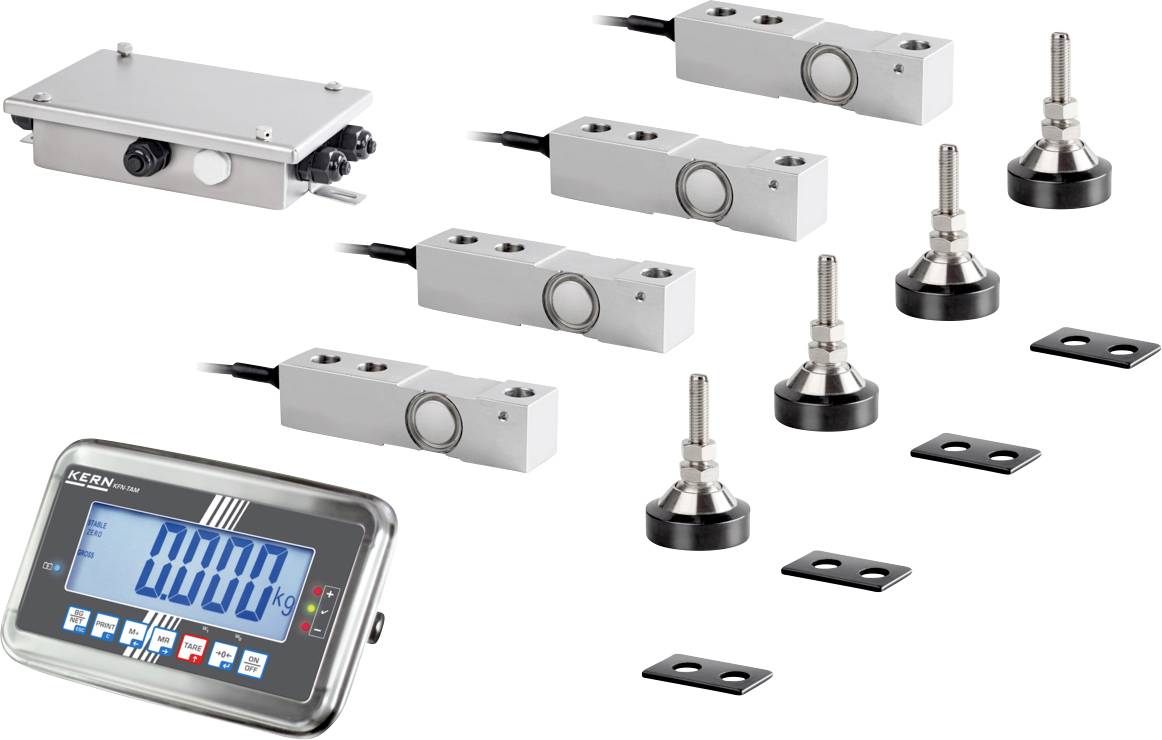

- Details of load cells (4 × Sauter CT 1000-3Q1):
- - Accuracy according to OIML R60 C3
- - RoHS compliant
- - Dust and splash-proof IP68/IP69K
- - Alloyed steel
- - 6-wire connection
- - Nominal value: 2 mV/V.
- Junction box Sauter CJ X467:
- - Robust stainless steel housing with IP67 dust and splash protection ;
