Kern Scales assembly kit CW 4500 Weight range 4500 kg
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Scale kit Sauter CW 4500
- Scales kit with design approval for individual construction of floor scales – suitable for harsh industrial use under humid ambient conditions
- This text is machine translated.
Technical specifications
- Weight range
4500 kg
- Product type
Scales assembly kit
Manufacturer's standards (no certificate)
- Calibratable
Yes
- Type
CW 4500
- Series
CW
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3702053 Kern Scales assembly kit CW 4500 Weight range 4500 kg
User & Safety Instructions
User & Safety Instructions 3702053 Kern Scales assembly kit CW 4500 Weight range 4500 kg
Information
Information 3702053 Kern Scales assembly kit CW 4500 Weight range 4500 kg
Description
Features
- With the Sauter scales kits individual weighing solutions, e.g. individual weighing systems in industry, vehicle construction and agriculture can be built. This allows versatile requirements to be implemented on dimensions, materials, combinable peripherals, etc. Particularly suitable for the construction of platform scales, funnel scales, silo scales, embedded in the floor and other weighing devices. Range of application: Mass and pressure measurements under harsh environmental conditions

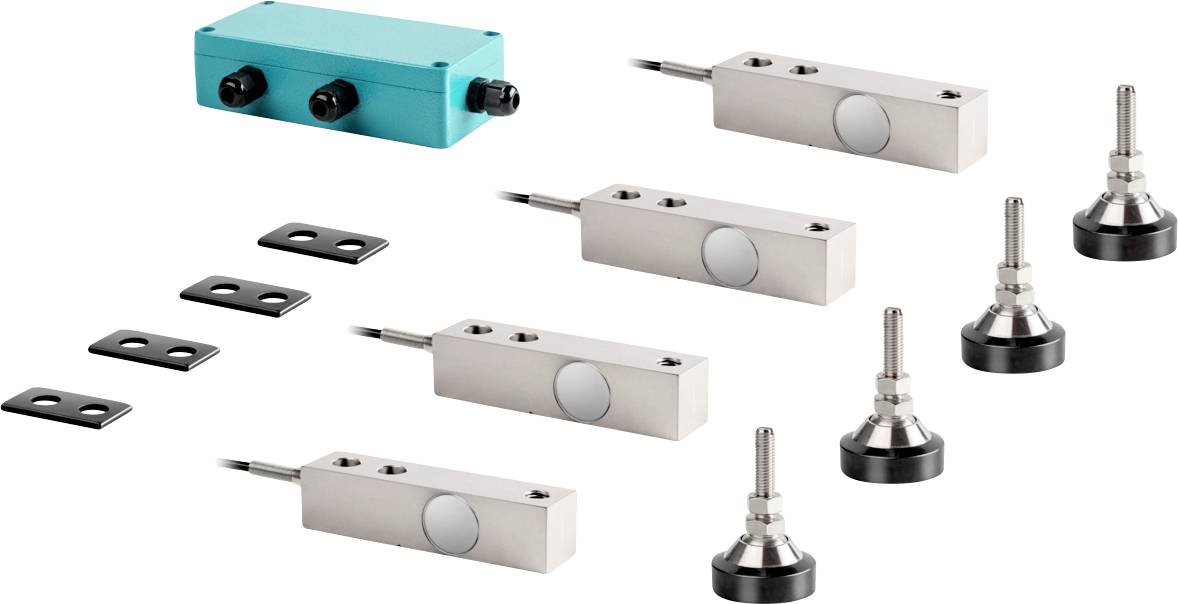

- Details of load cells (4 × Sauter CT 1500-3P1):
- - Accuracy according to OIML R60 C3
- - RoHS compliant
- - IP67 dust and splash protection (in accordance with EN 60529)
- - Nickel-plated steel
- - Nominal value: 3 mV/V.
- - 4-wire connection
- Junction box Sauter CJ P4PG:
- - Robust die-cast aluminum housing
- - IP65 dust and splash protection
- Tip: Use the Sauter CW in combination with one of our evaluation devices, e.g. KFS-TM, YKV
