Kern Sound level meter BSWA-01
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
Sound level meter
- Reading type
SPL
Manufacturer's standards (no certificate)
- Dim
(L x W x H) 70 x 70 x 50 mm
- dB (C) SPL reading range (max.)
94 - 114 dB
- dB (C) SPL reading range (max.)
114 dB
- dB SPL (C) reading range (min.)
94 dB
- Width
70 mm
- Height
50 mm
- Length
70 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2340024 Kern Sound level meter BSWA-01
User & Safety Instructions
User & Safety Instructions 2340024 Kern Sound level meter BSWA-01
Description

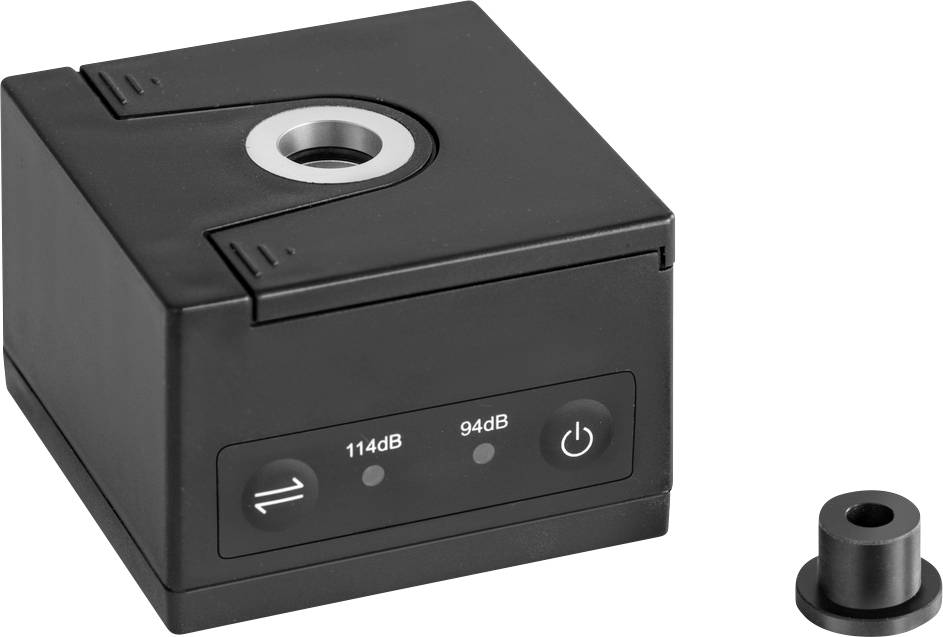

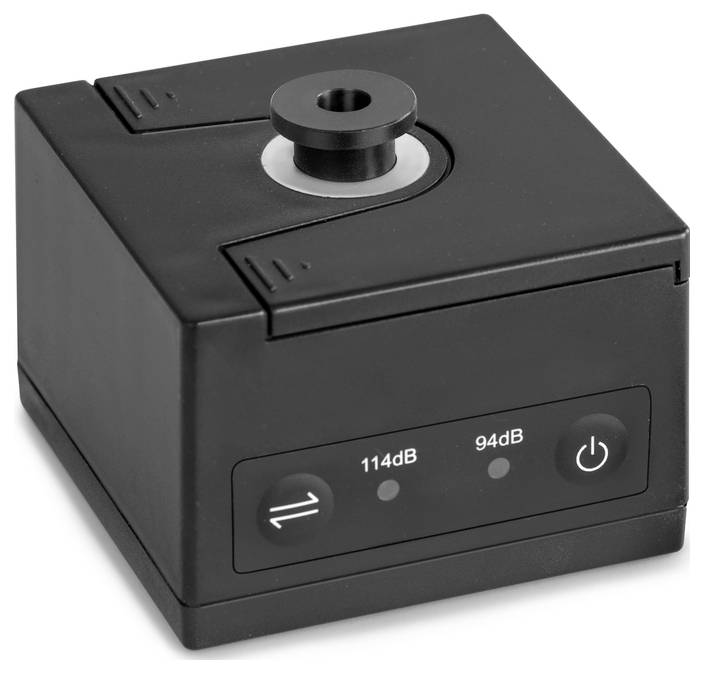

Calibrator for regular adjustment of the sound level meter
This text is machine translated.
This text is machine translated.
Features
- Applicable standards: IEC60942:2003 Class 1, ANSI S1.40-1984, GB/T 15173-1994
- Output frequency 1 kHz (+/- 0.5 %)
- Output Sound pressure, selectable 94 dB or 114 dB (± 0.3 dB)
- 2 % distortion factor
- Stabilization time < 10 s.
- The calibrator is suitable for 1/2" and 1/4" microphones (adapter included) in accordance with IEC 61094-4 standard
