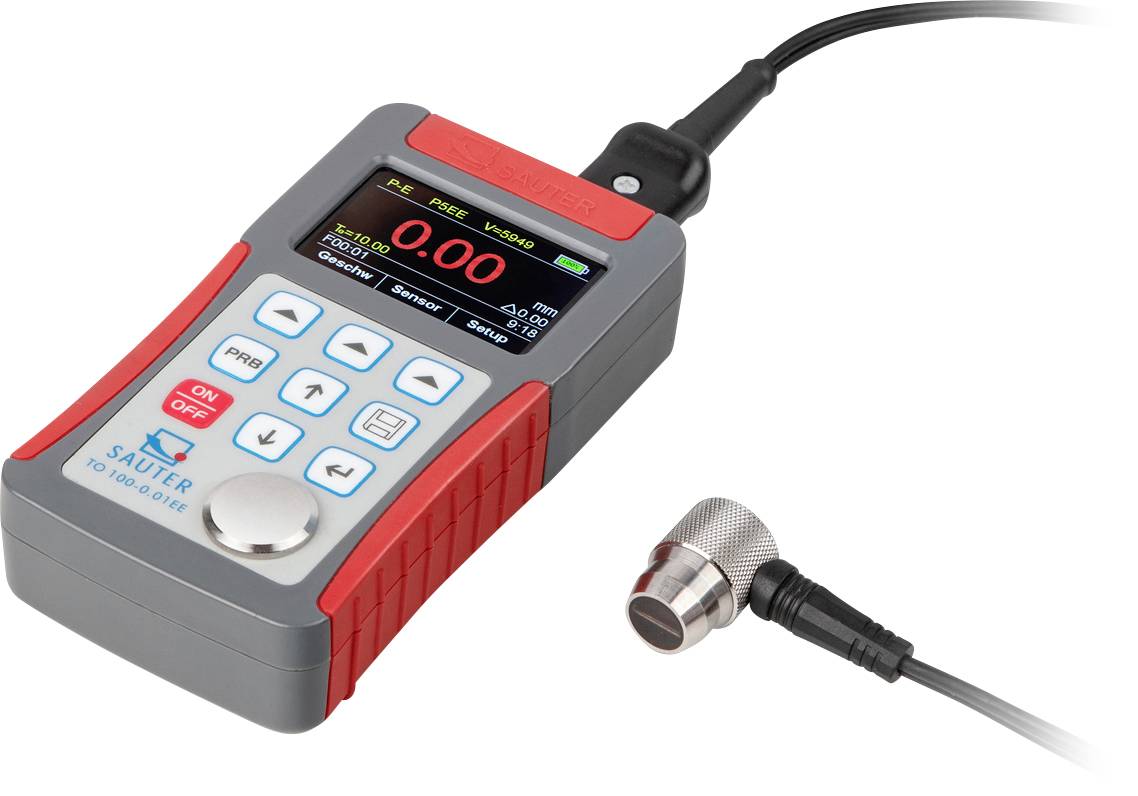

A digital measuring device with a red side handle, display, and control buttons. Beside it, a connected sensor or testing instrument.

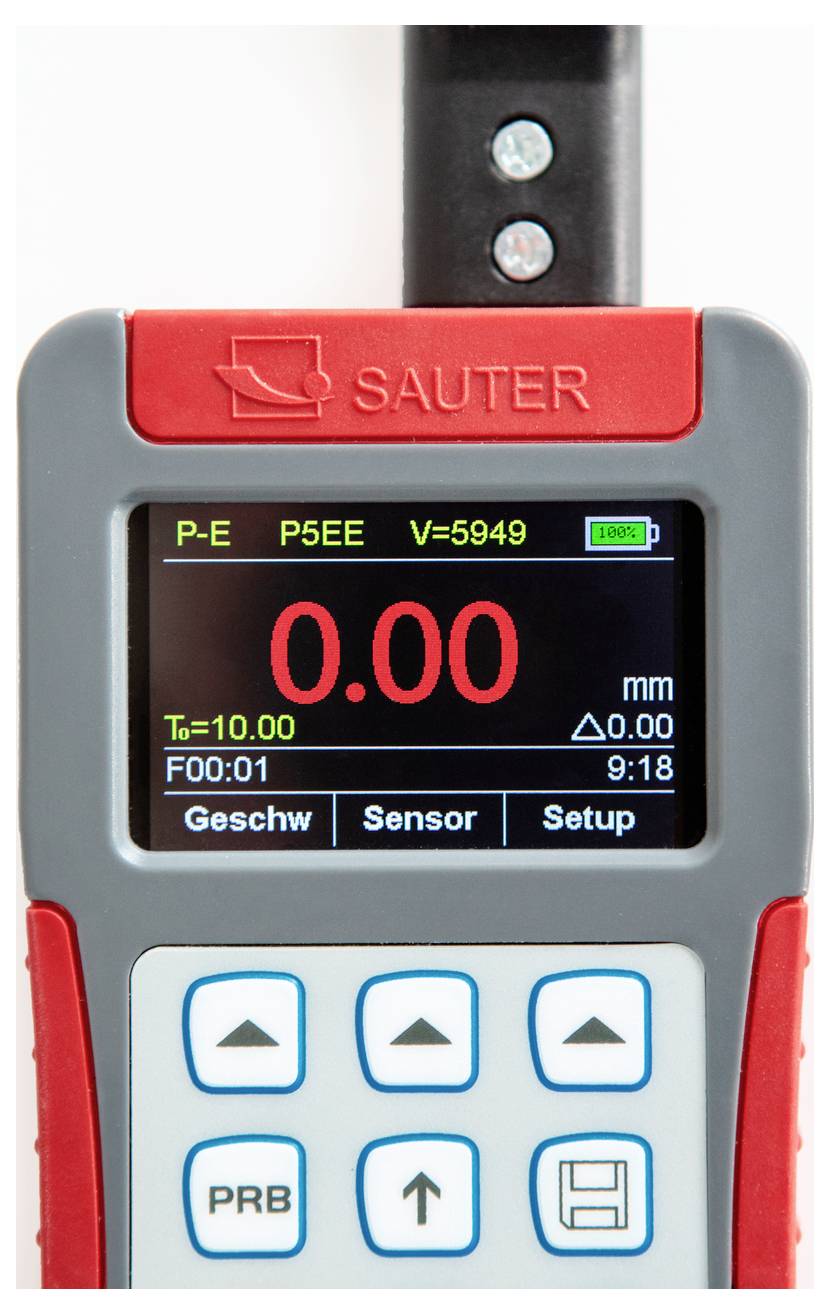

'Digital thickness gauge with digital display. Shows zero value in millimetres. Control panel with buttons and display for measurement settings.'

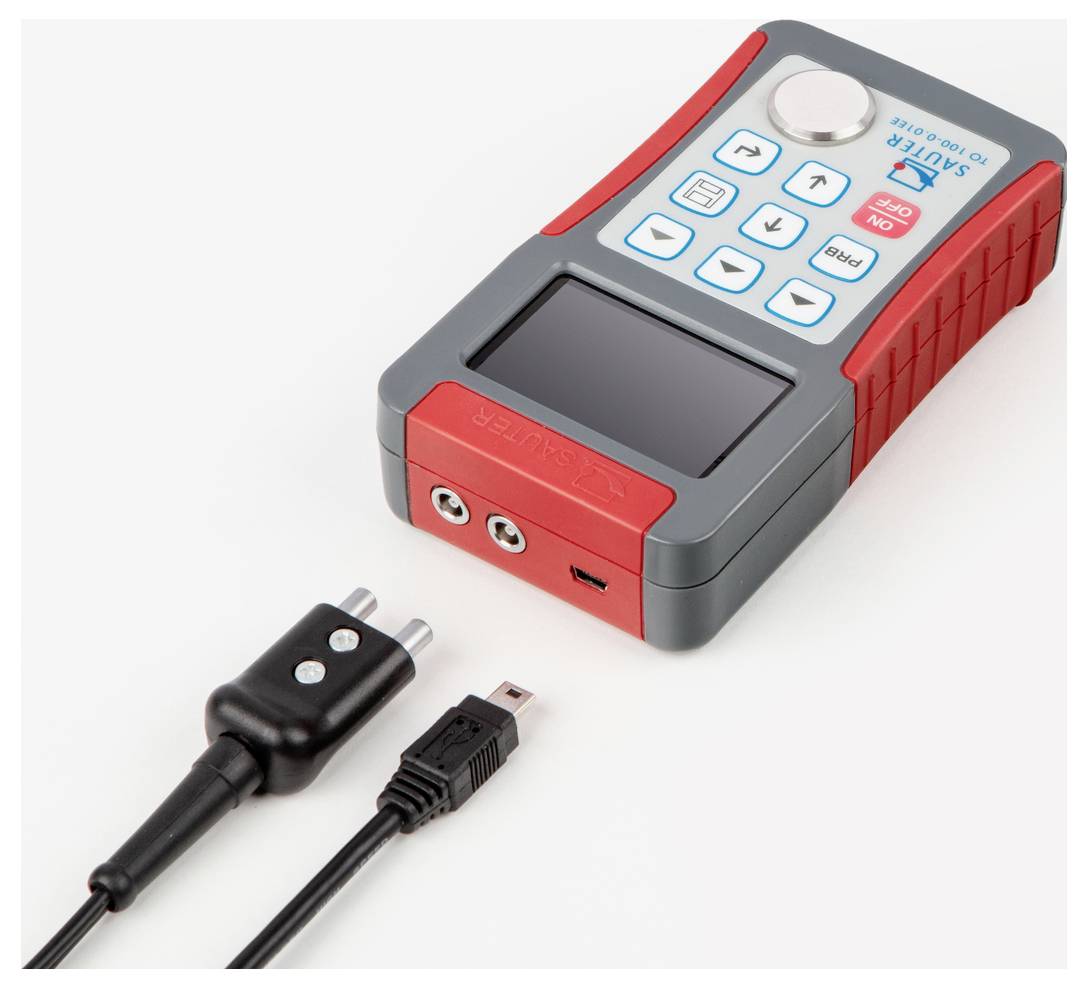

Portable measuring device with a screen and control buttons, connected by a black cable with USB and coaxial connectors.

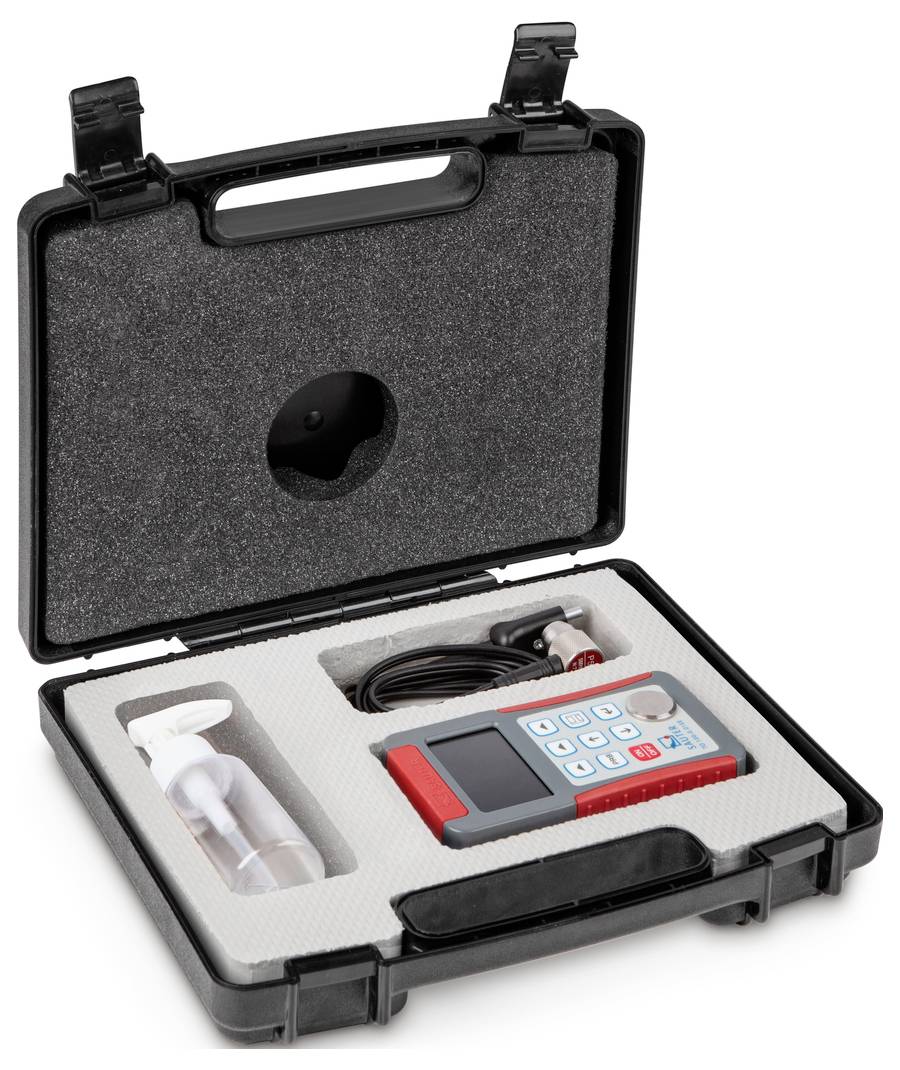

An open suitcase with a measuring device, cables, and a spray bottle nestled in foam inserts, ready for transport or use.

1/4

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Sauter TO 100-0.01EE Ultrasonic Thickness Gauge

NT measurement technology dual measurement modes (pulse echo, echo echo) high-precision mode premium display internal data memory for up to 100 series of data a 100 individual measured values
This text is machine translated.

Technical specifications

Pulse echo = 0.7-600 mm
Echo echo = 3-100 mm

Product type: Thickness gauge

: Manufacturer's standards (no certificate)

Dim: (L x W x H) 130 x 69 x 31 mm

Weight: 1.4 kg

Display: LCD

Resolution: 0.01 mm

Content: 1 pc(s)

Measuring type: Ultrasound

Width: 69 mm

Height: 31 mm

Length: 130 mm

Interfaces: USB

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2340191 Kern TO 100-0.01EE Thickness gauge

User & Safety Instructions

User & Safety Instructions 2340191 Kern TO 100-0.01EE Thickness gauge

Information

Information 2340191 Kern TO 100-0.01EE Thickness gauge

Features

Premium material thickness measuring device on ultrasonic basis:
New NT measurement technology generation
Automatic sensor adjustment (V-Path
Correction for better accuracy and
Faster display speed) dual measurement modes for determining the
Material thickness:
- Pulse echo mode (up to 600 mm)
- Echo echo mode (up to 100 mm) Echo echo measurements: Determination of the
Actual material thickness independant of one
Existing coating, such as a color
Or an anti-corrosion layer on the
Carrier metal. This allows the wall thickness, for example
Of pipes non-destructive, without removal
The coating is determined and the measured value
Already corrected by the coating thickness
Are shown on the display. Can be used on these materials, for example:
Metals, plastics, ceramics, composite
Materials, epoxy, glass and other high-precision mode: Reading accuracy
Switchable from 0.1 mm to 0.01 mm Premium display via color TFT display
(320×240) with adjustable brightness,
Good in all environmental conditions
Can be read from its large internal data memory for up to
100 data series à 100 individual values Energy-Save operation with 2× AA batteries and
An operating time of at least 100 hours,
Adjustable power-off time (sleep mode) and
Adjustable display switch-off (standby mode) Data interface USB for convenient
Data download from the device memory
To the PC, by default adjustment options: 0-point adjustment,
1-point adjustment, 2-point adjustment through
Measuring vons Material of different thickness 3 different measuring modes with standard
Measurement (single measurement), scan mode
(For continuous measurement and display
The ACTUAL value, THE MIN and MAX value of the
Series) and DIFF mode with calculation of the
Difference between ACTUAL measured value and one
Manually specified nominal thickness Limit alarm function: Upper and
Lower limit value can be set.
The measurement process is supported by an acoustic and visual signal

Scope of delivery

TO 100-0.01EE standard measuring probe ATU-US12 Operating instructions Carrying case
