Buy Kern UFA 1.5T0.5 Weigh bars UFA 1.5T0.5 Weight range 1500 kg Readability 500 g via PSU Grey

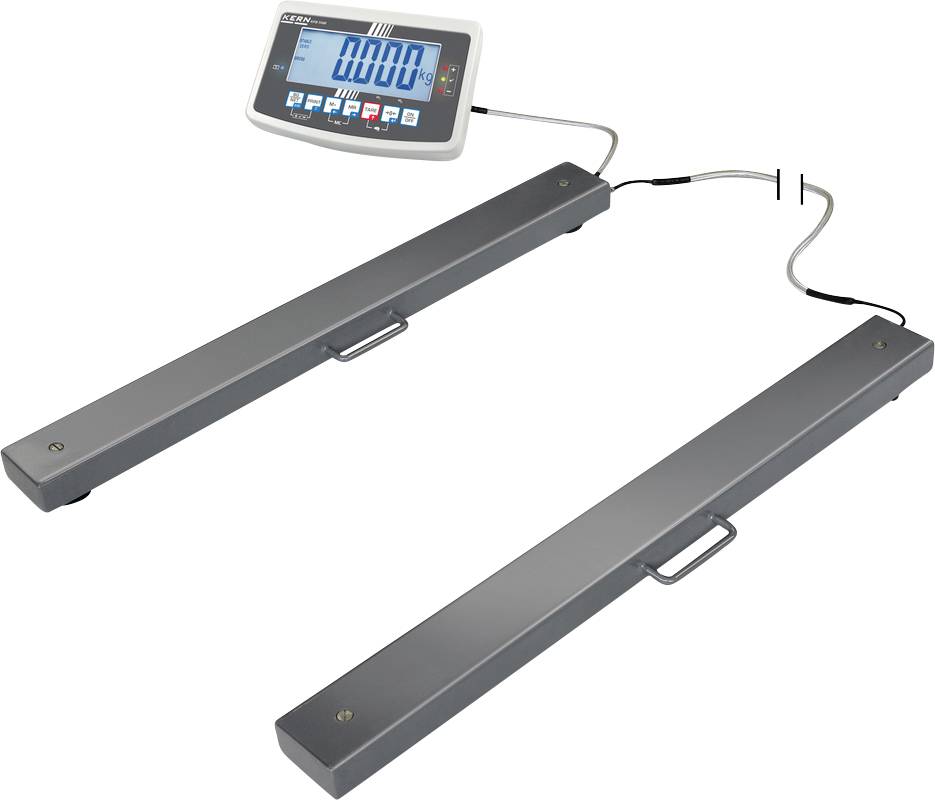

'Electronic scales with two long, rectangular measuring bars and a digital display. Shows weight in kilograms.'

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Weight range: 1500 kg

Product type: Weigh bars

Readability: 500 g

Display: Digital

Power supply (LOV): via PSU

: Manufacturer's standards (no certificate)

Factory colour: Grey

Power supply (details): 110 V - 230 V AC

Dim: (L x W x H) 83 x 1270 x 83 mm

Weight: 40 kg

Weight resolution: 500 g

Calibratable: No

Weighing plate: Steel (painted)

Width: 1270 mm

Height: 83 mm

Length: 83 mm

Reproducibility: 0.5 kg

Type: UFA 1.5T0.5

Features: Calibratable

Top plate (width): 1200 mm

Top plate (length): 120 mm

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 2252489 Kern UFA 1.5T0.5 Weigh bars UFA 1.5T0.5 Weight range 1500 kg Readability 500 g via PSU Grey

User & Safety Instructions

User & Safety Instructions 2252489 Kern UFA 1.5T0.5 Weigh bars UFA 1.5T0.5 Weight range 1500 kg Readability 500 g via PSU Grey

Information

Information 2252489 Kern UFA 1.5T0.5 Weigh bars UFA 1.5T0.5 Weight range 1500 kg Readability 500 g via PSU Grey

Description

Flexible solution for large, voluminous or long weighing goods. High mobility: Battery-powered (optional) and compact, low profile design suitable for multi-site use. Weighing scales: Steel, painted, 4 silicone-coated aluminum load cells, dust and splash-water protection IP67. Weighing scales available as a component also without evaluation unit. Sturdy handles for transporting the weigh bars. UFA-L: One roll each per weighing scale for easy transport of the scales. Table base including wall bracket for the evaluation unit as standard. Summing of weight values and counting parts. UFA-S: Model with shorter weighing scales, ideal for weighing compact weighing goods or animals in transport boxes. Safety cover included in delivery. Did you know? Our floor scales are delivered in a robust wooden box. This protects the high-quality weighing technology from environmental influences and loads during transport. Kern – always an idea ahead. Shipping by carrier. Dimensions, gross weight, shipping costs please request.
