Name: Kern UID 600K-1M Pallet scales UID 600K-1M Weight range 600 kg Readability 200 g via PSU Grey
Brand: Kern
SKU: 2252497

Portable U-shaped floor weighing system with digital display, indicating weight measurements for industrial applications.

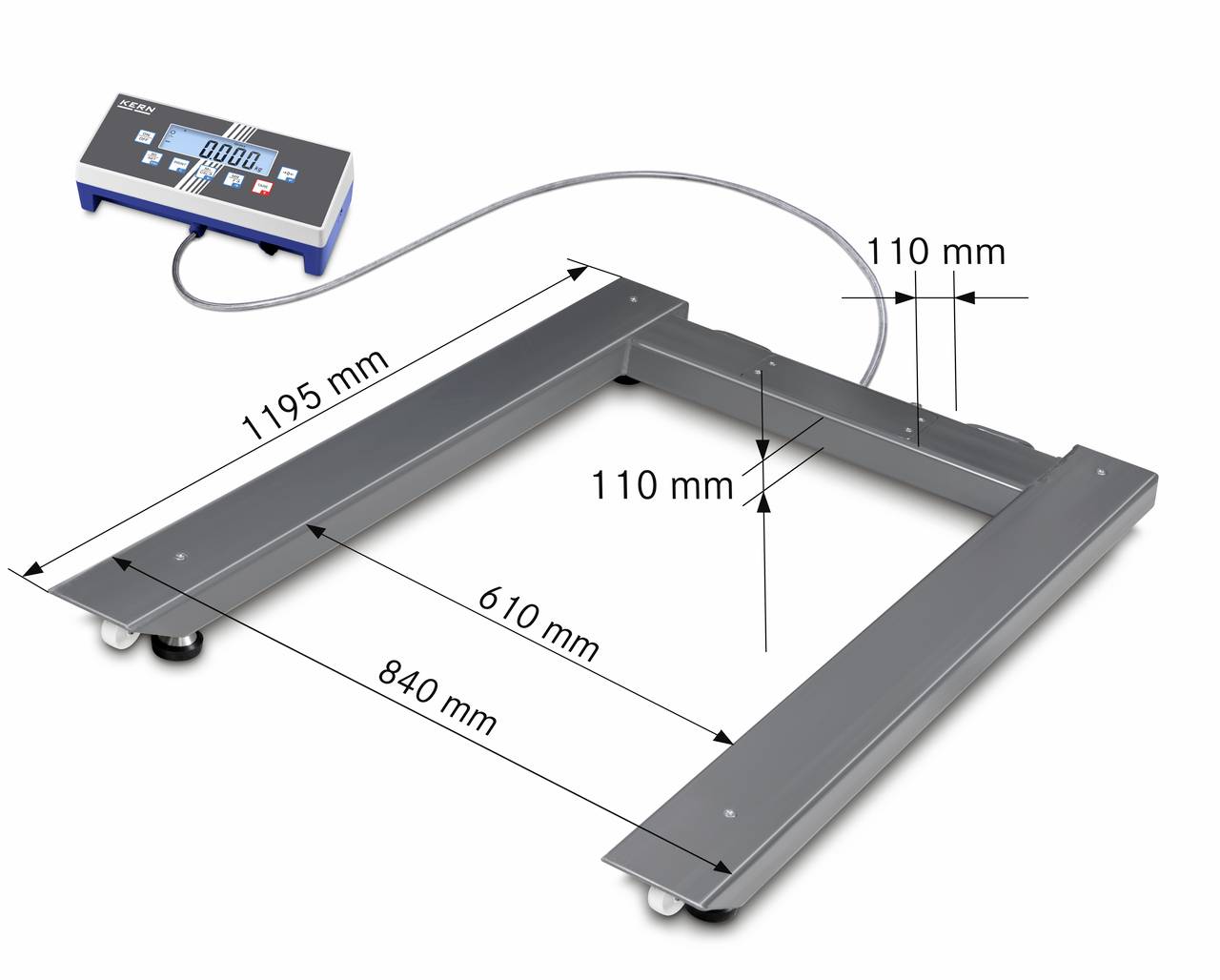

The illustration depicts a U-shaped platform scale with an external display, connected by a cable. Dimensions: 1195 x 840 x 110 mm.

1/2

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Weight range: 600 kg

Product type: Pallet scales

Readability: 200 g

Display: Digital

Power supply (LOV): via PSU

: Manufacturer's standards (no certificate)

Factory colour: Grey

Power supply (details): 100V-240V AC 50 0.400 AMAX

Dim: (L x W x H) 840 x 1195 x 110 mm (folded)

Weight: 44 kg

Weight resolution: 200 g

Calibratable: Yes

Weighing plate: Steel (powder-coated)

Dim. (add. text): folded

Width: 1195 mm

Height: 110 mm

Length: 840 mm

Reproducibility: 0.2 kg

Type: UID 600K-1M

Features: Calibratable
Calibratable

Top plate (width): 1195 mm

Top plate (length): 840 mm

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2252497 Kern UID 600K-1M Pallet scales UID 600K-1M Weight range 600 kg Readability 200 g via PSU Grey

User & Safety Instructions

User & Safety Instructions 2252497 Kern UID 600K-1M Pallet scales UID 600K-1M Weight range 600 kg Readability 200 g via PSU Grey

Information

Information 2252497 Kern UID 600K-1M Pallet scales UID 600K-1M Weight range 600 kg Readability 200 g via PSU Grey

Description

NEW: Two-area pallet scales! ideal for weighing high maximum loads, but in the lower load range, high resolution cannot be dispensed with. This means that two scales can be replaced by one – saving space and money!High mobility thanks to battery operation in the processing unit and platform. Load acceptance: Steel, powder-coated, 4 silicone-coated aluminum load cells, dust and splash-water protection IP67. Scales can be transported comfortably by means of 2 rollers and 1 hand grip and can be stowed away in a space-saving way. Thanks to interfaces such as RS-232 or USB, WLAN, Bluetooth, Ethernet (optional), the scales can be easily integrated into existing networks and facilitates data exchange between scales and PCs or printers. Query and remote control of the scale via external control devices or computers using THE Kern Comunication Protocol (KCP). The KCP is a standardized interface command set for CORE scales and other instruments that allows the retrieval and control of all relevant parameters and device functions. Kern devices with KCP can be connected to computers, industrial controls and other digital systems very easily. The KCP is largely compatible with the MT-SICS protocol. Only possible via RS-232 data interface. Safety cover included in delivery.

This text is machine translated.

Scope of delivery

- Power unit
- Safety hood
- Operating instructions

Hints

The selected product is a calibration approved part.If there is a need to be calibrated according to EU directives, please order the conformity assessment (calibration) via the optional accessories.Subsequent initial calibration is not possible.In the case of articles with first-time verification, the right of withdrawal is fundamentally excluded.Under the EU Directive 2014/31/EU, scales must be officially conformity-assessed ("calibrated") when used as follows:a) in the course of business, if the price of a commodity is determined by weighing.b) in the manufacture of medicinal products in pharmacies and in analyzes in the medical and pharmaceutical laboratories.c) for official purposes.d) in the manufacture of prepackages.e) in medicine.
