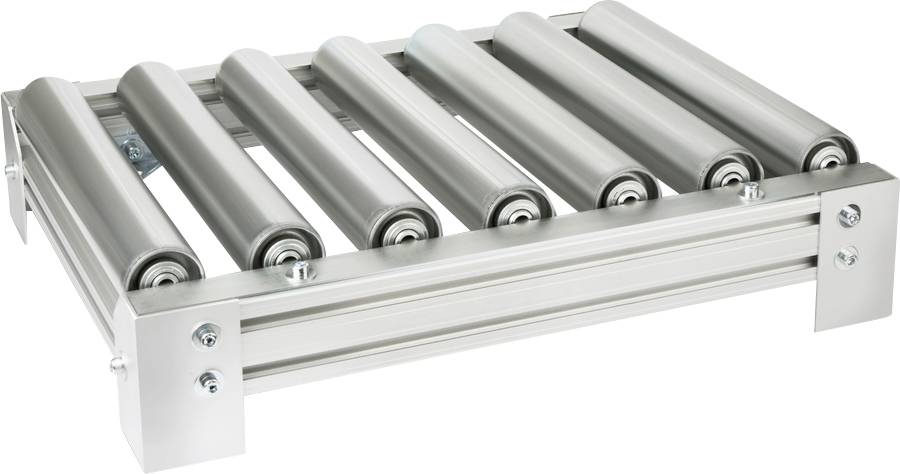

Metal rollers arranged side by side in a rectangular frame, for transporting heavy objects.

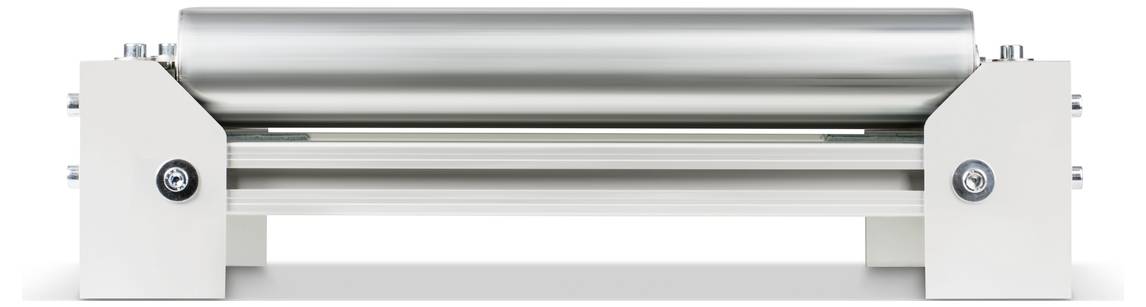

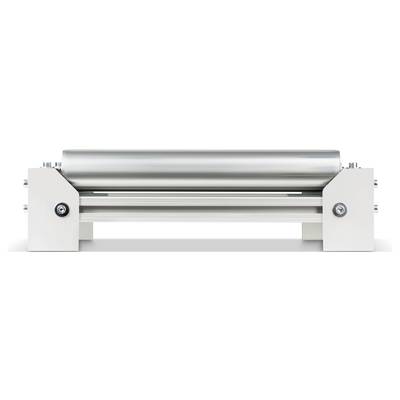

A metal cylinder lies horizontally on a stable white frame, potential industrial application.

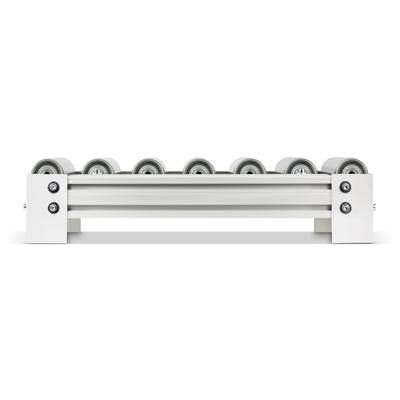

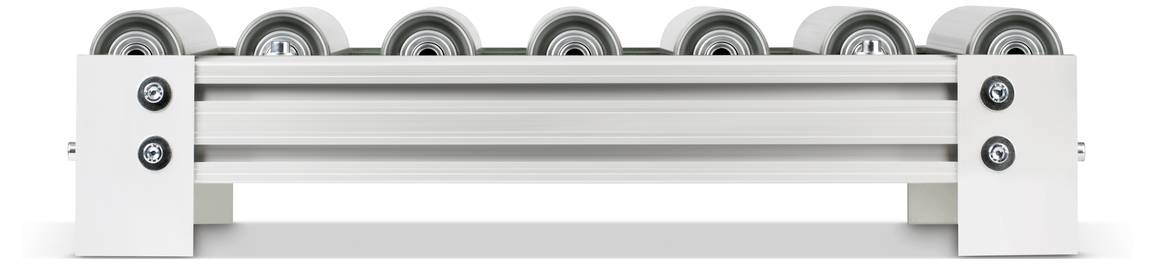

A metal horizontal roller conveyor with six rollers supports the transportation of goods through smooth movement.

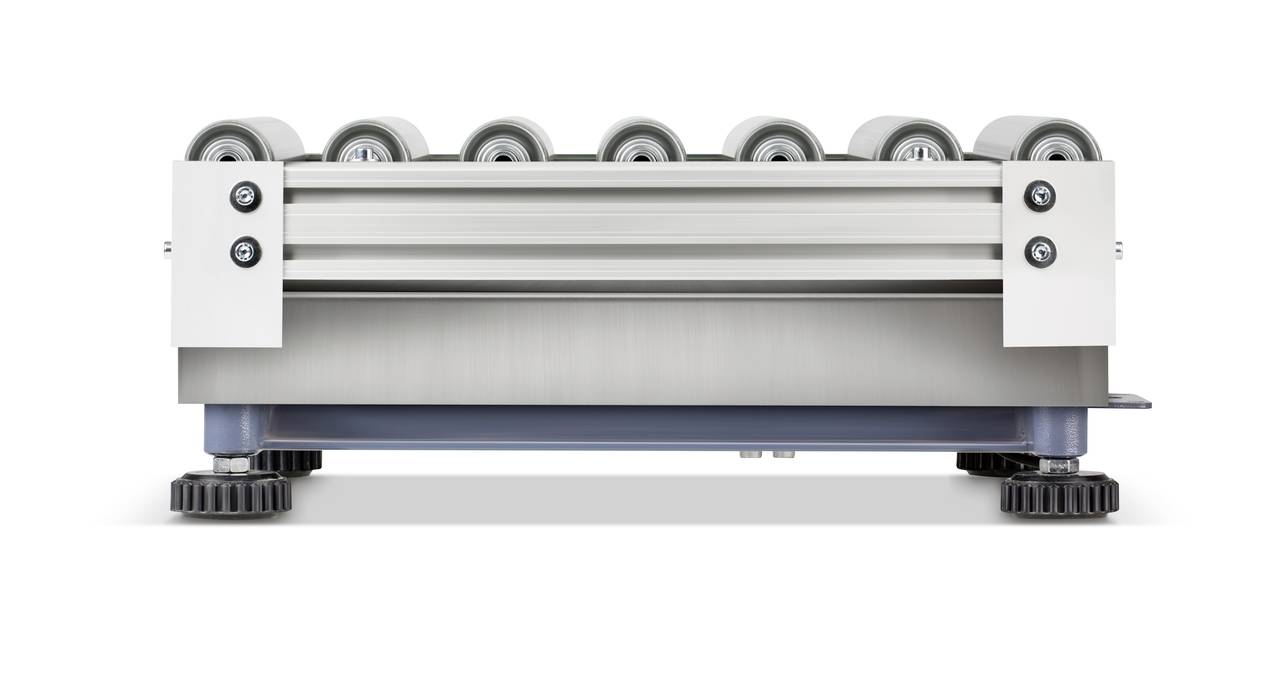

A grey industrial roller conveyor system with multiple rollers, suitable for transporting items in a production environment.

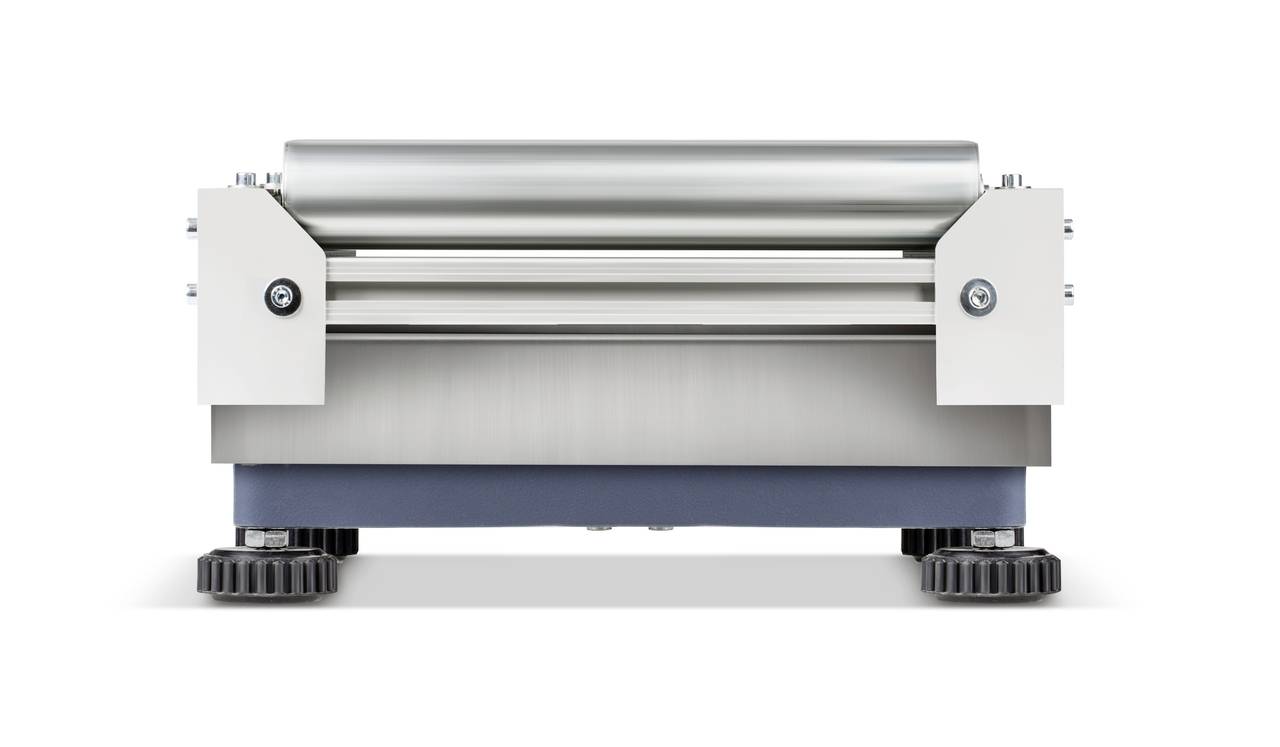

Metal device with two rollers mounted on a base, used for material processing. It stands on adjustable feet for stability.

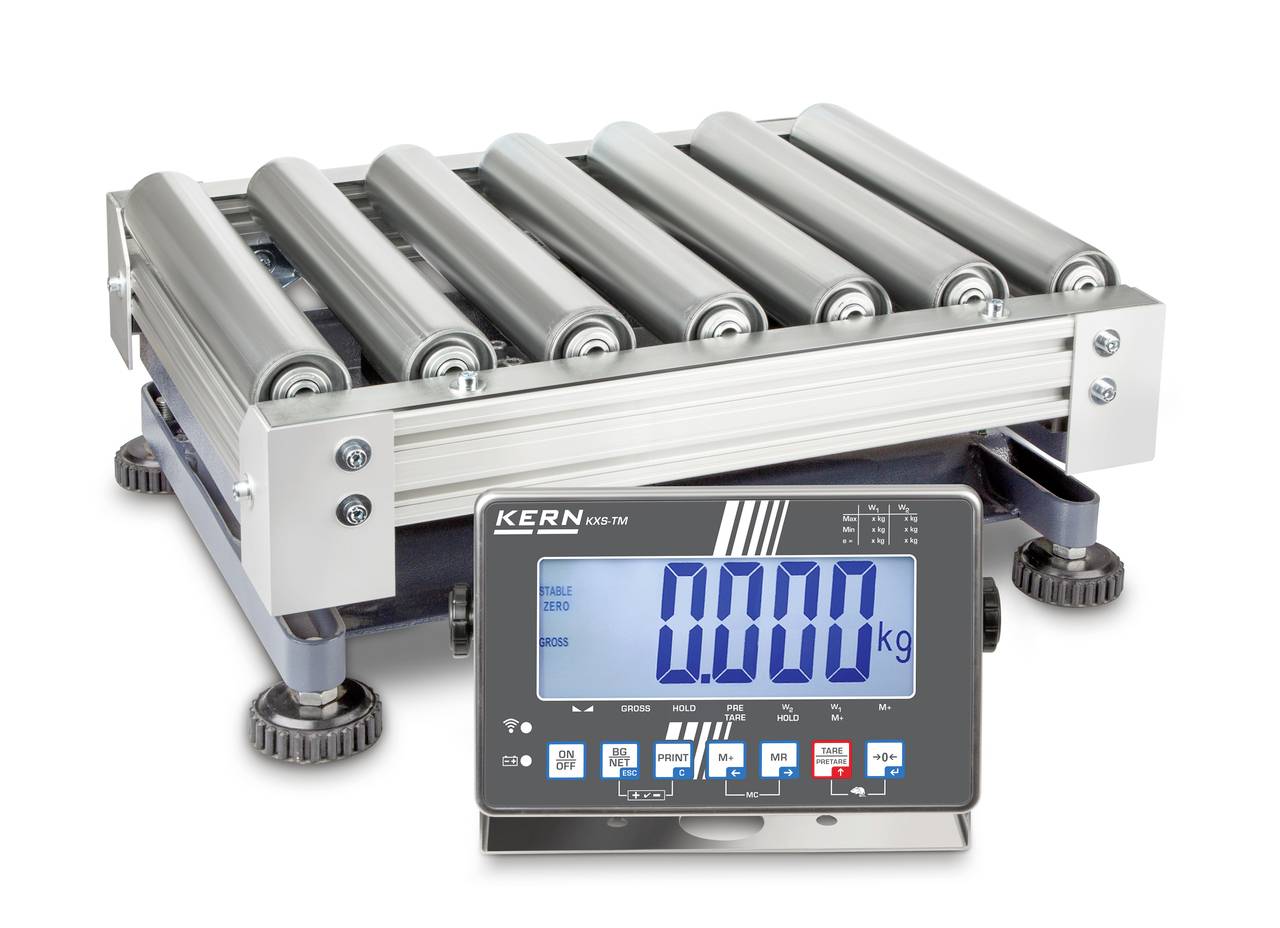

Digital platform scale with a digital display reading 0.000 kg, suitable for industrial applications. Display shows zero weight.

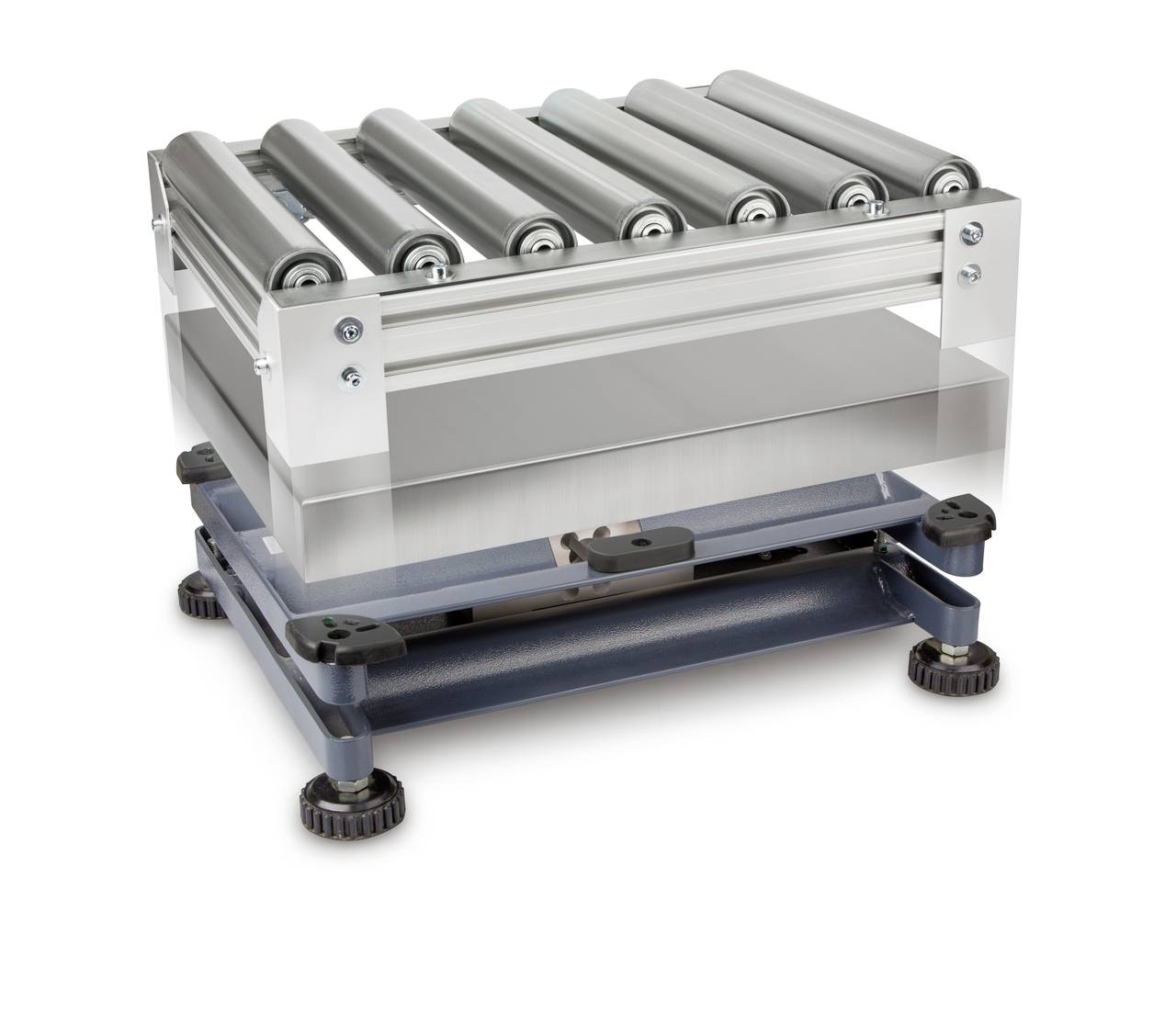

Conveyor belt module with rollers on adjustable base. Device for transporting objects, suitable for industrial applications.

1/7

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

The ideal combination for weight determination in conveyor systems: high-quality ball-bearing roller conveyors in conjunction with core platform scales

Because of the slightly common core roller track attachments CORE YRO can transform your platform scales in a robust measuring system for fast and flexible weight determination in conveyor systems
Particularly suitable for use in production or shipping lines, where time money means. Here you can either be weighed goods or packages crossing the scales or fixed station heavy goods thanks to the roller track comfortably on the scales, weighed and to the connected roller track can be forwarded
Simply connect the roller track attachment on a platform attach - done! (E. g. IFB, IFG, IFS, IXS, KFP-V40, KXP-V 20 LM or sxs)
Core YRO-01: suitable for platforms with weighing plate size B × T 400 × 300 mm
Core YRO-02: suitable for platforms with weighing plate size B × T 500 × 400 mm
Core YRO-03: suitable for platforms with weighing plate size B × T 650 × 500 mm
Robust aluminum frame. The modular structure enables a comfortable dismantle to clean or replace individual components
Smooth, hot-dip galvanised, ball-bearing steel rollers
Suitable for use in a dry environment
Roller distance approx. 30 mm
This text is machine translated.

Technical specifications

Product type: Conveyors

Compatible with (details): IXS 60K-2LAM
IXS 60K-3LA
SXS 60K-2LAM
SXS 100K-2AM
IXS 100K-3A
IXS 100K-2AM
SXS 100K-2NM
IXS 60K-3LN
IXS 60K-2LNM
SXS 60K-2LNM
IFB 100K-3
IFB 150K20DM
IFB 60K-3L
IFB 60K10DLM
IFS 100K-2M
IFS 100K-3
IFS 60K-2LM
IFS 60K0.5DL
IXS 100K-2M
IXS 100K-3
IXS 60K-2LM
IXS 60K-3L
KFP 150V20M
KFP 60V20LM
KFP 60V30LM
SXS 100K-2M
SXS 60K-2LM
KXP 150V20M
KXP 60V20LM
IXS 100K-3N
IXS 100K-2NM
Show more

Dim: (W x H x D) 505 x 130 x 405 mm

Calibratable: No

Weighing plate: Steel

Height: 130 mm

Depth: 405 mm

Width: 505 mm

UKCA: not relevant
