Kingbright KPS-3227SP1C Ambient Light Sensor Case version SMD -
EAN:
Part number:
Item no:
Datasheet (PDF)
1075 Piece(s)
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
10
-
€ 0.54
30
7% = € 0.04
€ 0.50
50
11% = € 0.06
€ 0.48
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 10
Total (€ 0.54 / piece)
€
Technical specifications
- Current I(C): 20 mA
- Emitter reverse voltage U(CEO): 6 V
- Power P(TOT): 100 mW
- Packaging type
Tape cut
- Type
KPS-3227SP1C
- Type
SMD
- Wavelength (min.)
580 nm
- Wavelength (max.)
580 nm
- Wave length
580 nm
- Min. temperature
-40 °C
- Max. temperature
+85 °C

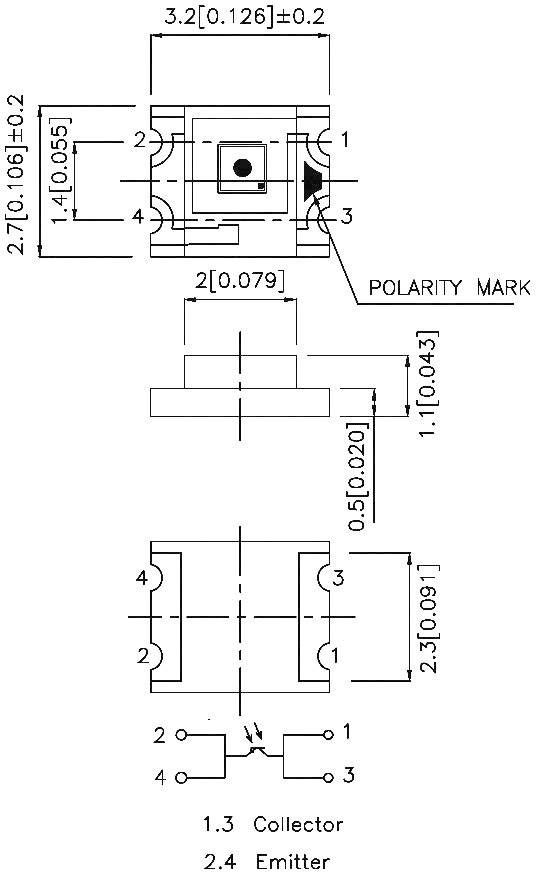

- Length
3.2 mm
- Width
2.7 mm
- Height
1.1 mm
- Dim
(L x W x H) 3.2 x 2.7 x 1.1 mm
- Type
KPS-3227SP1C
- Operating temperature
-40 - +85 °C
- Casing
SMD
- Operating voltage
-
- Product type
Photo sensor
Documents & Downloads
Datasheet
Datasheet 180380 Kingbright KPS-3227SP1C Ambient Light Sensor Case version SMD -
Description
The KPS-3227SP1C is a "Low-Cost" NPN-Silicon photo-transistor for surrounding light It reacted to the visible spectrum and is adapted to the sensitivity of the human eye. Application: Recognition of the ambient light for controlling of display lighting in e.g. mobile phones, PDAs, laptops or video cameras.
