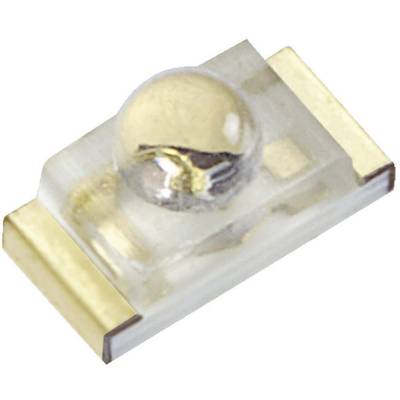

Kingbright KPTD-1608QBC-D SMD LED 0603 Blue 200 mcd 40 ° 20 mA 3.3 V
EAN:
Part number:
Item no:
Product type
SMD LED
Forward voltage U(F)
3.3 V
Forward current I(F)
20 mA
Type
0603
Light intensity I(V)
200 mcd
Datasheet (PDF)
Number
Total (€ 0.08 / piece)
€ 0.46
-83 %
€ 0.08
plus VAT.
14-day return policy included
Chip LED
Technical specifications
- Product type
SMD LED
- Type
KPTD-1608QBC-D
- Factory colour
Blue
- Forward voltage U(F)
3.3 V
- Forward current I(F)
20 mA
- Type
0603
- Light intensity I(V)
200 mcd
- Wavelength
465 nm
- Radiation angle
40°
- Dim
(L x W x H) 0.8 x 1.6 x 0.95 mm
- Length
0.8 mm
- Width
1.6 mm
- Height
0.95 mm
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 1050385 Kingbright KPTD-1608QBC-D SMD LED 0603 Blue 200 mcd 40 ° 20 mA 3.3 V
User & Safety Instructions
User & Safety Instructions 1050385 Kingbright KPTD-1608QBC-D SMD LED 0603 Blue 200 mcd 40 ° 20 mA 3.3 V
Description
Hints
All standard LED chips require a current-limiting resistor/constant current power source.
