Kingbright L-1043 YD LED wired Yellow Rectangular 3.65 x 6.15 mm 4 mcd 100 ° 20 mA 2 V
EAN:
Part number:
Item no:
Product type
LED wired
Forward voltage U(F)
2 V
Forward current I(F)
20 mA
Casing
3.65 x 6.15 mm
Type
Radial lead
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
7
-
€ 0.48
21
8% = € 0.04
€ 0.44
35
13% = € 0.06
€ 0.42
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 7
Total (€ 0.48 / piece)
€ 0.65
-26 %
€ 3.36
plus VAT.
Technical specifications
- Light area 6.15 x 3.65 mm
- Product type
LED wired
- Type
L-1043 YD
- Factory colour
Yellow
- Forward voltage U(F)
2 V
- Forward current I(F)
20 mA
- Casing
3.65 x 6.15 mm
- Type
Radial lead
- Light intensity I(V)
4 mcd
- Radiation angle
100°
- Type (LEDs)
Diffused
- Lens type
Rectangular
- Dim
(L x W) 6.15 mm x 3.65 mm
- Length
6.15 mm
- Width
3.65 mm
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 183091 Kingbright L-1043 YD LED wired Yellow Rectangular 3.65 x 6.15 mm 4 mcd 100 ° 20 mA 2 V
User & Safety Instructions
User & Safety Instructions 183091 Kingbright L-1043 YD LED wired Yellow Rectangular 3.65 x 6.15 mm 4 mcd 100 ° 20 mA 2 V
Description
Hints

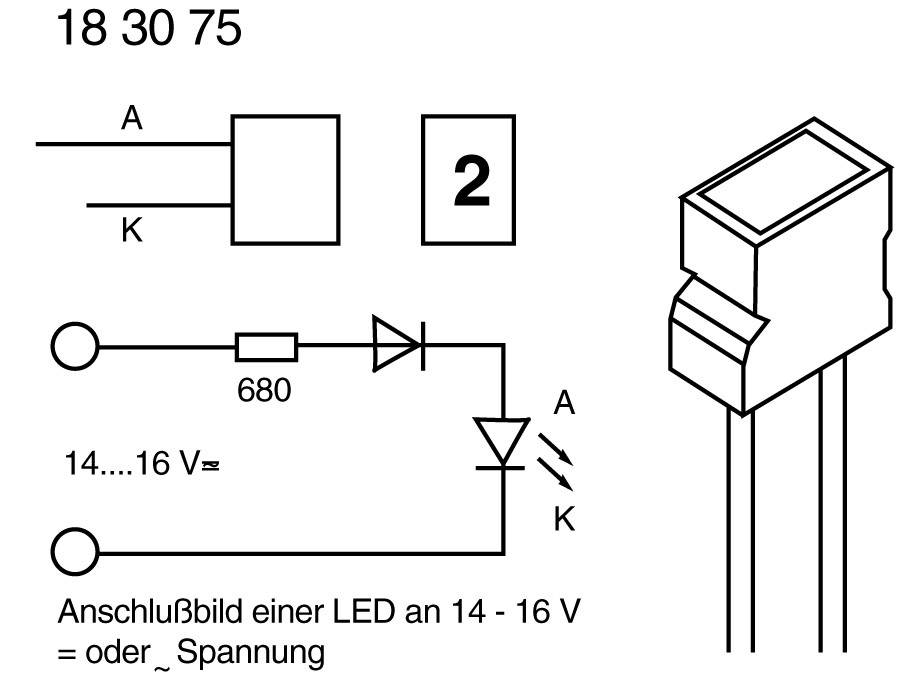

All standard LED chips require a current-limiting resistor/constant current power source.
