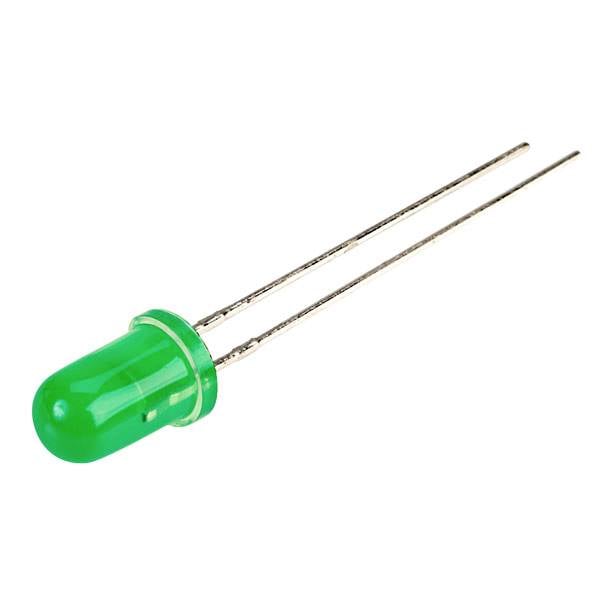

Kingbright L-7113GD-12V LED wired Green Circular 5 mm 20 mcd 30 ° 8.5 mA 12 V
EAN:
Part number:
Item no:
Product type
LED wired
Forward voltage U(F)
12 V
Forward current I(F)
8.5 mA
Casing
5 mm
Type
Radial lead
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
7
-
€ 0.45
21
11% = € 0.05
€ 0.40
35
13% = € 0.06
€ 0.39
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 7
Total (€ 0.45 / piece)
€ 3.15
plus VAT.
14-day return policy included
Technical specifications
- Product type
LED wired
- Type
L-7113GD-12V
- Factory colour
Green
- Forward voltage U(F)
12 V
- Forward current I(F)
8.5 mA
- Operating voltage
12 V
- Operating current
8.5 mA
- Casing
5 mm
- Type
Radial lead
- Light intensity I(V)
20 mcd
- Wavelength
568 nm
- Radiation angle
30°
- Type (LEDs)
Diffused
Tinted
- Lens type
Circular
- Dim
(Ø) 5 mm
- Min. temperature
-40 °C
- Max. temperature
+70 °C
- (Ø)
5 mm
- RoHS-compliant
Yes
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2888796 Kingbright L-7113GD-12V LED wired Green Circular 5 mm 20 mcd 30 ° 8.5 mA 12 V
User & Safety Instructions
User & Safety Instructions 2888796 Kingbright L-7113GD-12V LED wired Green Circular 5 mm 20 mcd 30 ° 8.5 mA 12 V
Description
Hints
All standard LED chips require a current-limiting resistor/constant current power source.
