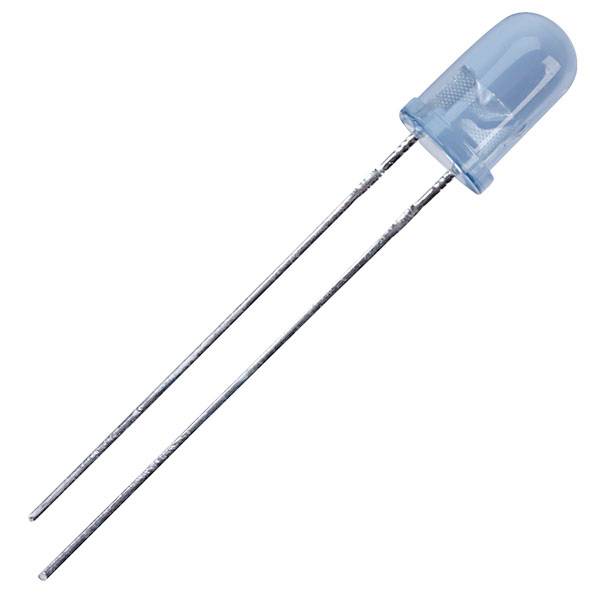

Kingbright LED wired Blue Circular 5 mm 60 mcd 20 ° 30 mA 3.8 V
EAN:
Part number:
Item no:
Product type
LED wired
Forward voltage U(F)
3.8 V
Forward current I(F)
30 mA
Casing
5 mm
Type
Radial lead
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
5
-
€ 0.56
15
7% = € 0.04
€ 0.52
25
11% = € 0.06
€ 0.50
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 5
Total (€ 0.56 / piece)
€ 2.80
plus VAT.
14-day return policy included
Highlights & Details
Kingbright L-7113MBD 5mm 3.8V Blue LED 60mcd
Our service for you
Technical specifications
- Product type
LED wired
- Type
L-7113BD
- Factory colour
Blue
- Forward voltage U(F)
3.8 V
- Forward current I(F)
30 mA
- Operating voltage
3.8 V
- Operating current
30 mA
- Casing
5 mm
- Type
Radial lead
- Light intensity I(V)
60 mcd
- Wavelength
466 nm
- Radiation angle
20°
- Type (LEDs)
Diffused
Tinted
- Lens type
Circular
- Dim
(Ø) 5 mm
- Min. temperature
-40 °C
- Max. temperature
+85 °C
- (Ø)
5 mm
- RoHS-compliant
Yes
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 2888787 Kingbright LED wired Blue Circular 5 mm 60 mcd 20 ° 30 mA 3.8 V
User & Safety Instructions
User & Safety Instructions 2888787 Kingbright LED wired Blue Circular 5 mm 60 mcd 20 ° 30 mA 3.8 V
Description
Features
- Cathode identified by flat on body
- Suitable for signalling applications and as an alternative to filament lamps
- General purpose leads
- Reliable and rugged
- Long life - solid state reliability
- IC compatible
- RoHS compliant
- This text is machine translated.
Hints
All standard LED chips require a current-limiting resistor/constant current power source.
