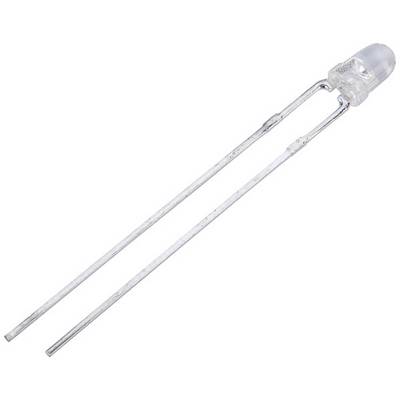

Kingbright LED wired Orange Circular 3 mm 1300 mcd 34 ° 30 mA 2 V
EAN:
Part number:
Item no:
Product type
LED wired
Forward voltage U(F)
2 V
Forward current I(F)
30 mA
Casing
3 mm
Type
Radial lead
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
15
-
€ 0.20
45
10% = € 0.02
€ 0.18
75
15% = € 0.03
€ 0.17
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 15
Total (€ 0.20 / piece)
€ 3.00
plus VAT.
14-day return policy included
Highlights & Details
Kingbright L-7104SEC 3mm Super Bright Orange LED 2000mcd
Our service for you
Technical specifications
- Product type
LED wired
- Type
L-7104SEC
- Factory colour
Orange
- Forward voltage U(F)
2 V
- Forward current I(F)
30 mA
- Operating voltage
2 V
- Operating current
30 mA
- Casing
3 mm
- Type
Radial lead
- Light intensity I(V)
1300 mcd
- Wavelength
601 nm
- Radiation angle
34°
- Type (LEDs)
Water clear
- LED features
LED 3 mm
- Lens type
Circular
- Dim
(Ø) 3 mm
- Min. temperature
-40 °C
- Max. temperature
+85 °C
- (Ø)
3 mm
- RoHS-compliant
Yes
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 2888764 Kingbright LED wired Orange Circular 3 mm 1300 mcd 34 ° 30 mA 2 V
User & Safety Instructions
User & Safety Instructions 2888764 Kingbright LED wired Orange Circular 3 mm 1300 mcd 34 ° 30 mA 2 V
Description
Features
- Cathode identified by short leg
- Particularly suitable for signalling applications and as an alternative to filament lamps
- Kingbright L-7104 series (Formerly L-934 series)
- This text is machine translated.
Hints
All standard LED chips require a current-limiting resistor/constant current power source.
