Kingbright LED wired Red Planar 2 mm 20 mcd 70 ° 30 mA 2 V
EAN:
Part number:
Item no:
Product type
LED wired
Forward voltage U(F)
2 V
Forward current I(F)
30 mA
Casing
2 mm
Type
Radial lead
Quantity (Piece(s))
Savings
Package size (plus VAT.)
20
-
€ 0.15
60
13% = € 0.02
€ 0.13
100
20% = € 0.03
€ 0.12
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 20
Total (€ 0.15 / piece)
€ 3.00
plus VAT.
14-day return policy included
Highlights & Details

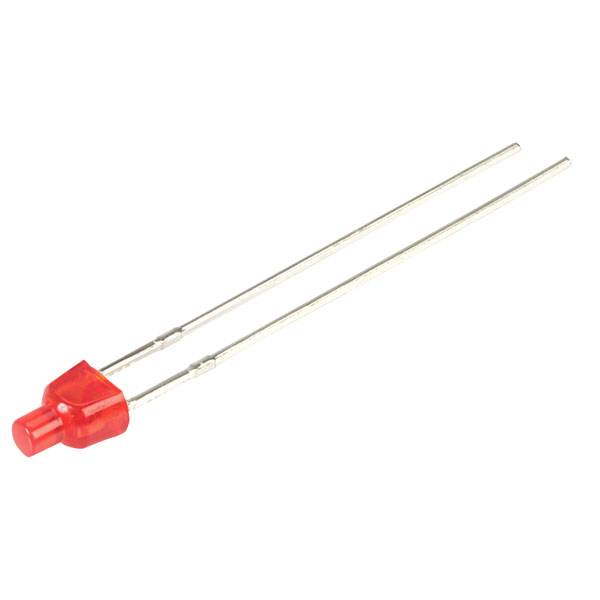

Kingbright L-1034ID 2mm High Efficiency Red LED Flat Top 20mcd
Our service for you
Technical specifications
- Product type
LED wired
- Type
L-1034ID
- Factory colour
Red
- Forward voltage U(F)
2 V
- Forward current I(F)
30 mA
- Operating voltage
2 V
- Operating current
30 mA
- Casing
2 mm
- Type
Radial lead
- Light intensity I(V)
20 mcd
- Wavelength
625 nm
- Radiation angle
70°
- Type (LEDs)
Diffused
Tinted
- LED features
blends in control panel
- Technology
GaP
- Lens type
Planar
- Dim
(Ø) 2 mm
- Min. temperature
-40 °C
- Max. temperature
+85 °C
- (Ø)
2 mm
- RoHS-compliant
Yes
- Content
1 pc(s)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2888860 Kingbright LED wired Red Planar 2 mm 20 mcd 70 ° 30 mA 2 V
Description
Features
- GaP emitting colour material
- Low power consumption
- Cathode identified by shorter lead
- Mounts flush with panel
- Suitable for audio panel indicator
- Long life - solid state reliability
- Kingbright L-1034 series
- This text is machine translated.
Hints
All standard LED chips require a current-limiting resistor/constant current power source.
