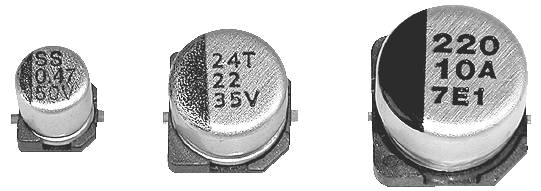

KJ Electronics Electrolytic capacitor SMD 47 µF 50 V 20 % (Ø x H) 8 mm x 10.5 mm 1 pc(s) Tape
Part number:
Item no:
Packaging type
Tape
Product type
Electrolytic capacitor
Type
SMD
Capacity (elec.)
47 µF
Nominal voltage
50 V
Datasheet (PDF)
Highlights & Details
KJ electronics SMD electrolytic capacitor 47UF 50V 8x10.5mm
Our service for you
Technical specifications
- ESD Packaging: No ESD
- Series: LZ
- Technology: Aluminium electrolytic capacitor
- Mounting type_1: SMD
- Delivery form_1: Taped
- Properties_1: • Low impedance
- Capacity 47 µF
- Capacity_1: 47
- Unit of capacity: µF
- Capacity Tolerance 20%
- Loss factor tan δ: 0.12
- Ripple current 300 mA
- Nominal voltage DC 50 V
- Lifetime_1: 2,000 h
- Packaging type
Tape
- Product type
Electrolytic capacitor
- Type
SMD
- Dim
(Ø x H) 8 mm x 10.5 mm
- Capacity (elec.)
47 µF
- Nominal voltage
50 V
- Tolerance ±
20 %
- Height
10.5 mm
- (Ø)
8 mm
- Content
1 pc(s)
- Material
Aluminium
- Width
8 mm
- Length
10.5 mm
- RoHS-compliant
Yes
- Max. temperature
105 °C
- Type
50LZ470MLC8X10.5EC
- Operating temperature (max.)
105 °C
- Operating temperature (min.)
-55 °C
- Certification marks
JIS C-5141, JIS C-5102 HE
Documents & Downloads
Datasheet
Datasheet 3463080 KJ Electronics Electrolytic capacitor SMD 47 µF 50 V 20 % (Ø x H) 8 mm x 10.5 mm 1 pc(s) Tape
User & Safety Instructions
User & Safety Instructions 3463080 KJ Electronics Electrolytic capacitor SMD 47 µF 50 V 20 % (Ø x H) 8 mm x 10.5 mm 1 pc(s) Tape
Description
SMD electrolytic capacitors 16-50V 20% 105°C low ESR
