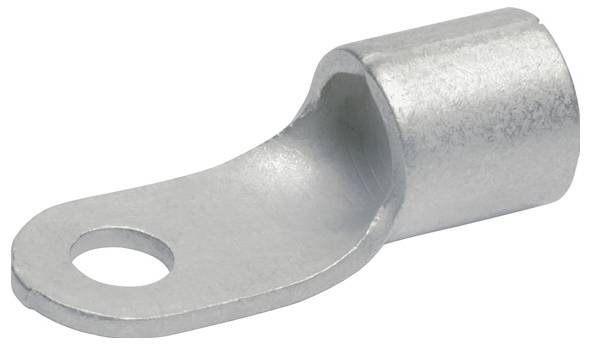

Klauke 16578 Ring terminal tin-plated Cross section (max.)=70 mm² Hole Ø=8 mm Not insulated 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Ring terminal
Thread size
M8
Hole Ø
8 mm
Insulation type
Not insulated
Highlights & Details
Crimp terminal 70QMM ring form
- - 70 mm²
Technical specifications
- Flange shape: Ring-shaped
- Flange length 22 mm
- Sleeve shape: Short
- Insulation: Without
- Total length 49 mm.
- Conforms to DIN: Yes
- For secure connections: No.
- Suitable for solid conductor: No.
- Suitable for multi-wire conductors: Yes
- Suitable for fine-wire conductors: Yes
- Suitable for high temperatures (up to 650 °C): No.
- Suitable for paint wire: No.
- Suitable for round wire: Yes
- Suitable for flat conductor: No.
- Bandware: No.
- Halogen-free: Yes
- Nominal cross-section: 70 mm²
- Bolt dimension (Imperial) 8
- Surface protection: Tin-plated
- Packaging type
Piece
- Product type
Ring terminal
- Thread size
M8
- Hole Ø
8 mm
- Insulation type
Not insulated
- Content
1 pc(s)
- Contact material
Copper silver plated
- Manufacturer part #
16578
- Type
16578
- max. cross section
70 mm²
- Cross-section range
70 mm² (max)
- Features
tin-plated
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3430773 Klauke 16578 Ring terminal tin-plated Cross section (max.)=70 mm² Hole Ø=8 mm Not insulated 1 pc(s) Piece
Description
Crimp terminal DIN 46234, 70 mm², M8, tinned copper. Complies with DIN 46234. For conductors such as VDE 0295 standard, class 2, 5 and 6. High-quality hard soldering process in crimping. Grooved profile for improved contact characteristics. Galvanically tin-plated for protection against corrosion. Material Cu-ETP.
