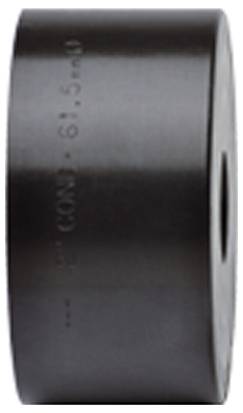

Klauke 50047353 Stencil template
EAN:
Part number:
Item no:
Technical specifications
- Design: Only die
- Hole-shaped: Round
- Splitting hole: No.
- Hydraulic actuation type: Yes
- Mechanical actuation: Yes
- Product type
Stencil template
- Material suitability
Steel
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3429440 Klauke 50047353 Stencil template
Description
Standard Sheetmetal punch system. Suitable for steel sheet (ST37), plastic and aluminum. Sheetmetal punch for manual and hydraulic operation. To use the towing bolt 9.5mm, the diameter hole has to be drilled with the pilot drill (50360183). For the draw bolt 19.0mm, the hole diameter 20.5mm must be drilled with the pilot drill (50344030).
