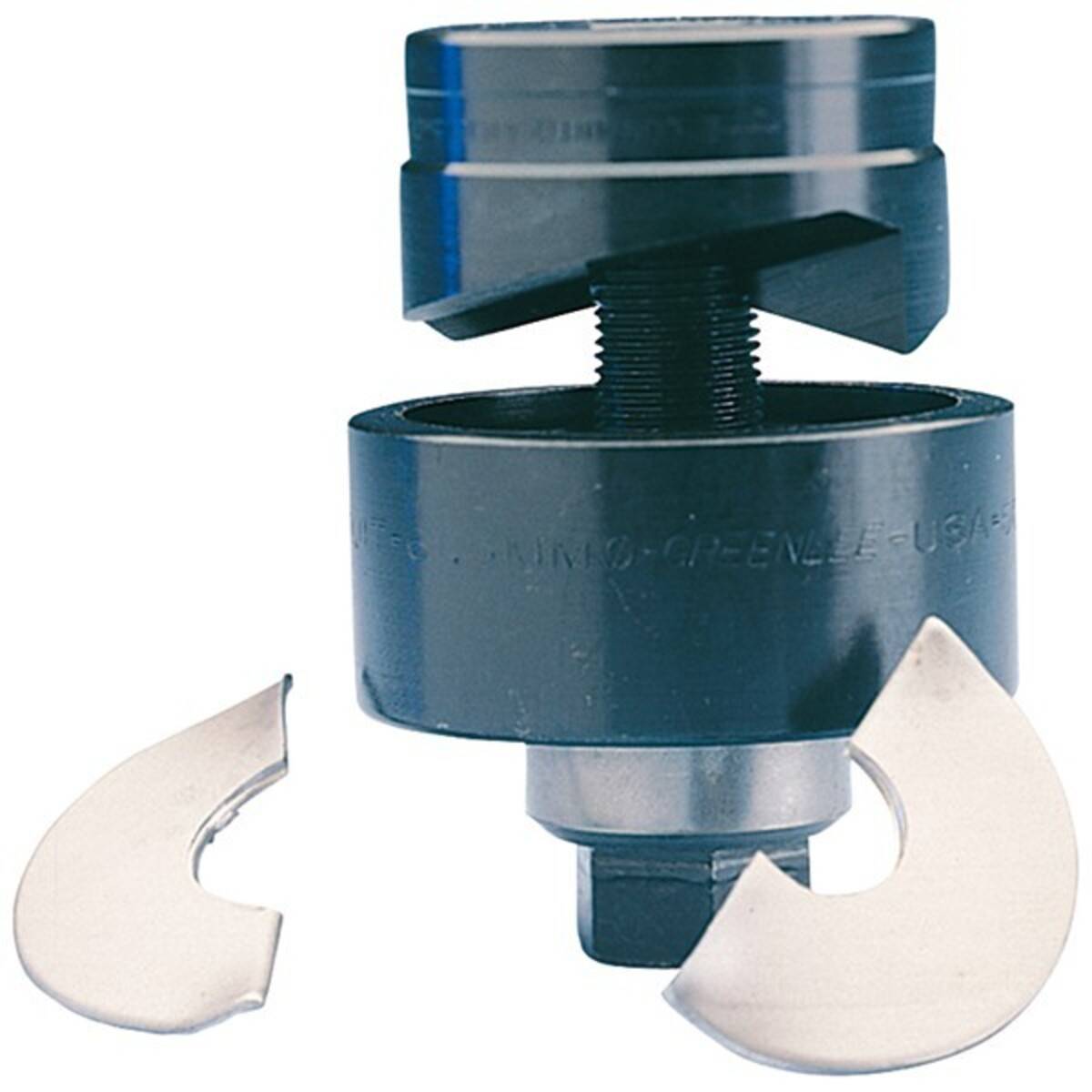

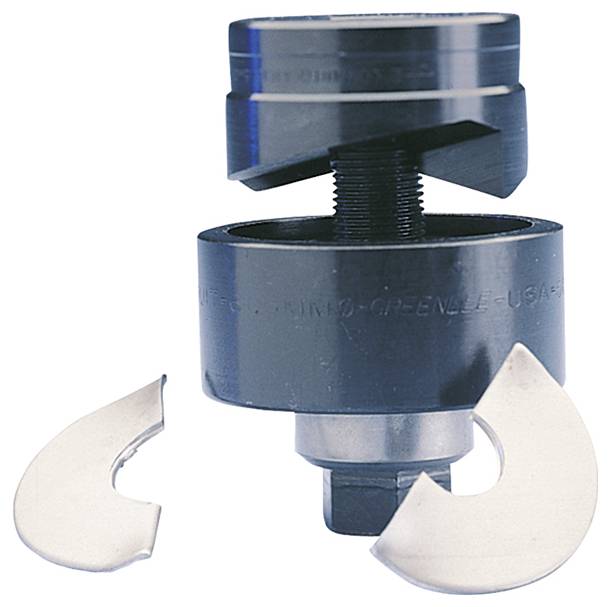

Klauke 50319620 Sheetmetal punch 22.5 mm
EAN:
Part number:
Item no:
Technical specifications
- Design: Stencil and punch
- Hole-shaped: Round
- Hole diameter 22.5 mm
- Splitting hole: Yes
- Hydraulic actuation type: Yes
- Mechanical actuation: Yes
- Product type
Sheetmetal punch
- (Ø)
22.5 mm
- Material suitability
Steel
- Dim
(Ø) 22.5 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3429601 Klauke 50319620 Sheetmetal punch 22.5 mm
Description
For fast, clean, effortless and burr-free punching. Punch waste pieces are split and can be easily removed. Suitable for sheet steel (ST37), plastic and aluminum, complete system comprising of stamp, die plate and traction screw. Manual and hydraulic control, pre-drill diameter 9.7 mm 50360183 for draft screw diameter 9.5 mm, pre-drill diameter 20.5 mm 50344030 for draft screw diameter 19 mm. Maximum material thickness (ST37) 2.0mm.
