Klauke 50366920SET Sheetmetal punch set
EAN:
Part number:
Item no:
Technical specifications
- With tool: Yes
- Splitting hole: Yes
- Hydraulic control type: No.
- Mechanical actuation: Yes
- Hole sizes ISO: 16-40
- Hole sizes PG: 9-30.5
- Number of sheet metal holes: 5
- Number of towing bolts: 2
- With case/bag: Yes
- Product type
Sheetmetal punch set
- Material suitability
Steel
Plastic
Aluminium
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3430191 Klauke 50366920SET Sheetmetal punch set
Description
This high-quality Slug Buster® split-hole punch set has been specially developed for punching fast, clean and burr-free holes according to ISO 16 to 40 in materials such as steel plate (St37), plastic and aluminum up to 3.5 mm.
This text is machine translated.
This text is machine translated.

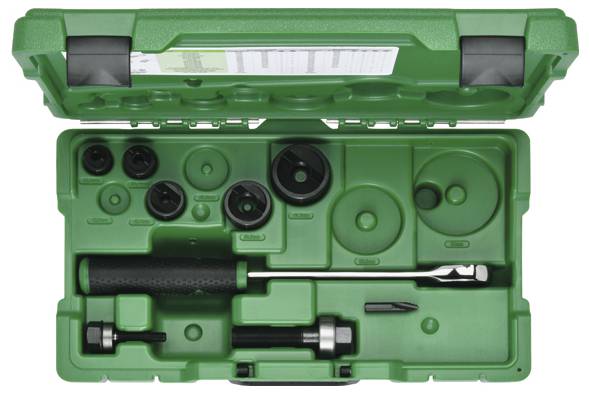

Scope of delivery
- ISO 16 stamp and die (16.2mm)
- ISO 20 stamp and die (20.4 mm)
- ISO 25 stamp and die (25.4 mm)
- ISO 32 stamp and die (32.5 mm)
- ISO 40 stamp and die (40.5 mm)
- Traction screw for manual operation Ø 9.5 x 40 mm (50000420)
- Traction screw for manual operation Ø 19.0 x 55 mm (50040405)
- Ratchet (50349414)
- Kwik Stepper™ Step Drill 9.7 mm (50360183)
- Plastic case (50366858)
