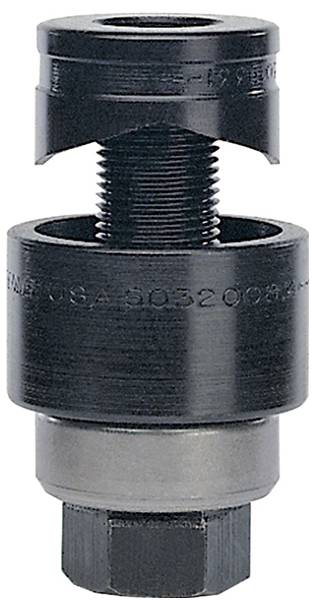

Klauke 50369105 Sheetmetal punch 28.3 mm
EAN:
Part number:
Item no:
Technical specifications
- Design: Complete (with draw bolt)
- Hole-shaped: Round
- Hole diameter 28.3 mm
- Splitting hole: No.
- Hydraulic actuation type: Yes
- Mechanical actuation: Yes
- Product type
Sheetmetal punch
- (Ø)
28.3 mm
- Material suitability
Steel
- Dim
(Ø) 28.3 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3429730 Klauke 50369105 Sheetmetal punch 28.3 mm
Description
Standard Sheetmetal punch system. Suitable for steel sheet (ST37), plastic and aluminum. Sheetmetal punch for manual and hydraulic operation. To use the towing bolt 9.5mm, the diameter hole has to be drilled with the pilot drill (50360183). For the draw bolt 19.0mm, the hole diameter 20.5mm must be drilled with the pilot drill (50344030). Maximum material thickness (ST37), 2.0mm.
