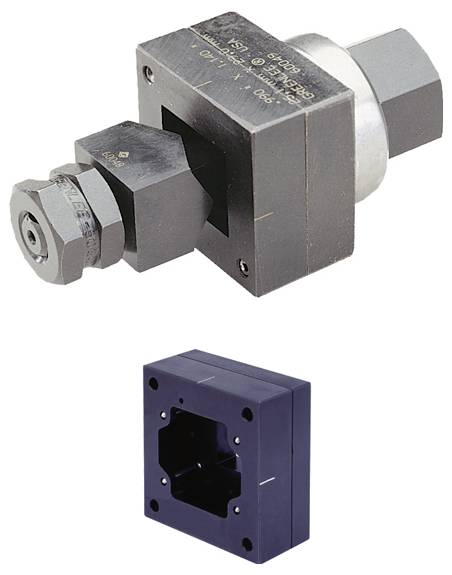

Klauke 52033820 Punch form
EAN:
Part number:
Item no:
Technical specifications
- Design: Complete (with draw bolt)
- Hole diameter 30.2 mm
- Splitting hole: No.
- Hole width 36 mm
- Hole height 112 mm
- Hydraulic actuation type: Yes
- Mechanical actuation: Yes
- Product type
Punch form
- Material suitability
Steel
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3429393 Klauke 52033820 Punch form
Description
The rectangular holes for heavy connectors are equipped with a drilling template integrated into the matrix for drilling the 4 mounting holes. Suitable for steel sheet (ST37) up to 3.0 mm thick and aluminum up to 3.5 mm thickness. Complete system consisting of stamp, die plate, traction screw and lock nut. Hydraulic actuation. Pre-drilling with 30.2 mm diameter pre-drill 50364146.
This text is machine translated.
