Klauke 52055439SET Sheetmetal punch set
EAN:
Part number:
Item no:
Technical specifications
- With tool: Yes
- Splitting hole: Yes
- Hydraulic actuation type: Yes
- Mechanical actuation type: No.
- Hole sizes ISO: 16, 20, 25, 32, 40
- Number of sheet metal holes: 6
- Number of towing bolts: 2
- With case/bag: Yes
- Product type
Sheetmetal punch set
- Material suitability
Steel
Plastic
Aluminium
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3430373 Klauke 52055439SET Sheetmetal punch set
Description
The system is compatible with all Greenlee hand and battery hydraulic punch tools and is excellently suitable for machining steel sheet (ST37), plastic and aluminum up to a thickness of 3.5 mm.
Up to 3-times faster than conventional hole punch tools. The simple and quick handling is ensured by not unscrewing and unscrewing the lock nut.
A clean and fast result is achieved during hydraulic control. The complete system includes draft bolts, clamp, stamp and die. It is available in five common sizes (ISO 16, 20, 25, 32, 40) and is supplied in a practical plastic case.
The following diameters and draw bolts are provided for the pilot hole: The pilot drill Ø 9.7 mm (50360183) for the 9.5 mm draw pin and the pre-drill Ø 20.5 mm (50344030) for the 19 mm draw pin. (PSU/batteries not included.)
This text is machine translated.
Up to 3-times faster than conventional hole punch tools. The simple and quick handling is ensured by not unscrewing and unscrewing the lock nut.
A clean and fast result is achieved during hydraulic control. The complete system includes draft bolts, clamp, stamp and die. It is available in five common sizes (ISO 16, 20, 25, 32, 40) and is supplied in a practical plastic case.
The following diameters and draw bolts are provided for the pilot hole: The pilot drill Ø 9.7 mm (50360183) for the 9.5 mm draw pin and the pre-drill Ø 20.5 mm (50344030) for the 19 mm draw pin. (PSU/batteries not included.)
This text is machine translated.

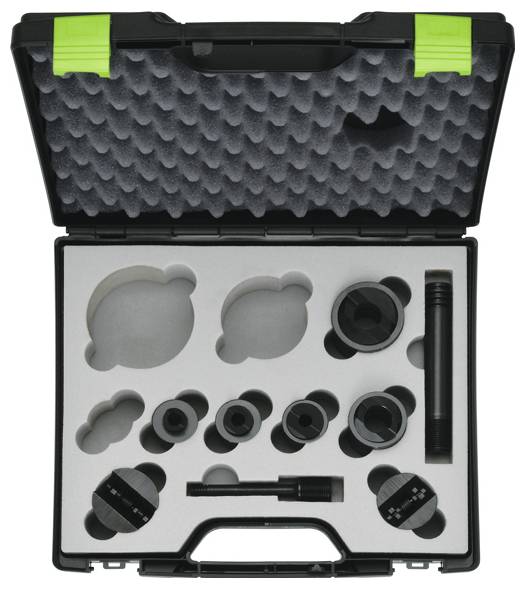

Scope of delivery
- ISO 16 stamp and die (16.2mm)
- ISO 20 stamp and die (20.4 mm)
- ISO 25 stamp and die (25.4 mm)
- ISO 32 stamp and die (32.5 mm)
- ISO 40 stamp and die (40.5 mm)
- Speed Punch™ bracket and 9.5 mm stud for ISO 16/20/25 and PG 16
- Speed Punch™ bracket and 19.0 mm stud for ISO 32/40/50/63
