Klauke 770 Parallel connector 0.50 mm² 1 mm² Insulated Red 1 pc(s)
EAN:
Part number:
Item no:
Product type
Parallel connector
Insulation type
Insulated
Contact material
CU-ETP
Length
17 mm
Content
1 pc(s)
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
10
-
€ 0.31
30
6% = € 0.02
€ 0.29
50
13% = € 0.04
€ 0.27
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 10
Total (€ 0.31 / piece)
€ 3.10
plus VAT.
Highlights & Details
Parallel connector, insulated
Our service for you
Technical specifications
- Product type
Parallel connector
- Factory colour
Red
- Insulation type
Insulated
- Contact material
CU-ETP
- Length
17 mm
- Content
1 pc(s)
- Manufacturer part #
770
- Type
770
- max. cross section
1 mm²
- Min. cross section
0.50 mm²

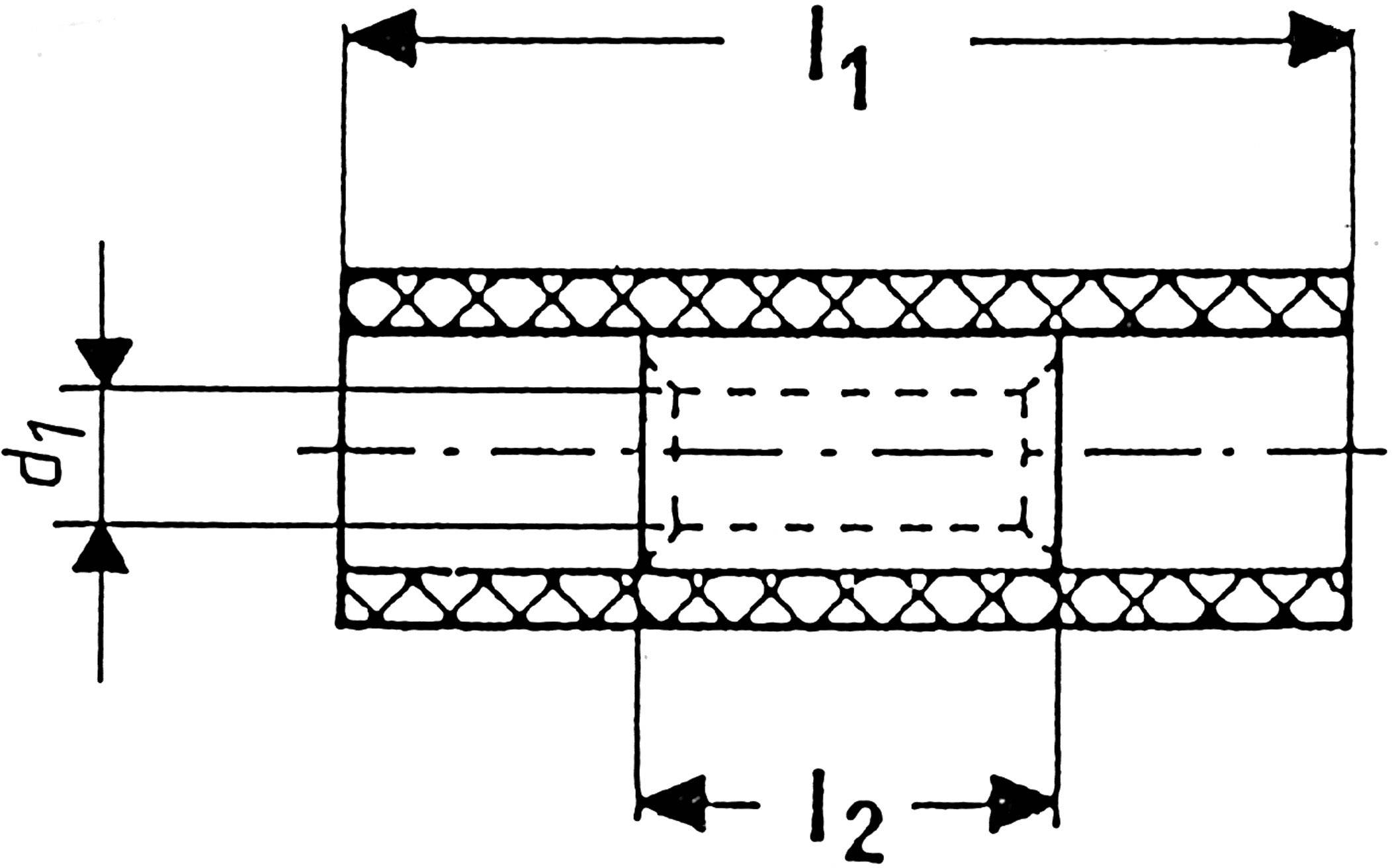

- Dim
(d1 x l1 x l2) 1.6 x 17 x 7 mm
- Inside diameter
1.6 mm
- Insulation material
PA
- Dimensions
(d1 x l1 x l2) 1.6 x 17 x 7 mm
- Cross-section range
0.50 - 1 mm²
- RoHS-compliant
Yes
- Insulation
Halogen-free PA
- Material (details)
Cu-ETP, tin-plated
- Cross section
0,5 - 1 mm²
Documents & Downloads
Datasheet
Datasheet 739388 Klauke 770 Parallel connector 0.50 mm² 1 mm² Insulated Red 1 pc(s)
User & Safety Instructions
User & Safety Instructions 739388 Klauke 770 Parallel connector 0.50 mm² 1 mm² Insulated Red 1 pc(s)
Description
For fine and ultra-fine stranded conductors.
