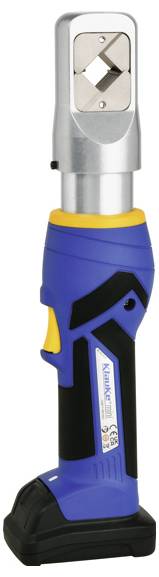

Klauke EKWF120ML EKWF120ML Crimper 6 up to 120 mm²
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Press form: Square pressing
- Execution/activation: Battery-hydraulic
- Inserts can be replaced: No.
- With automatic reverse: Yes
- Cycle time 1 – 5 seconds
- Press force 10 - 40 kN
- Product type
Crimper
- Manufacturer part #
EKWF120ML
- Suitable for
Ferrules
- Crimp area
6 up to 120 mm²
- Crimp area (min.)
6 mm²
- Crimp area (max.)
120 mm²
- Length
32 mm
- Weight
1.96 kg
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3430529 Klauke EKWF120ML EKWF120ML Crimper 6 up to 120 mm²
User & Safety Instructions
User & Safety Instructions 3430529 Klauke EKWF120ML EKWF120ML Crimper 6 up to 120 mm²
Description

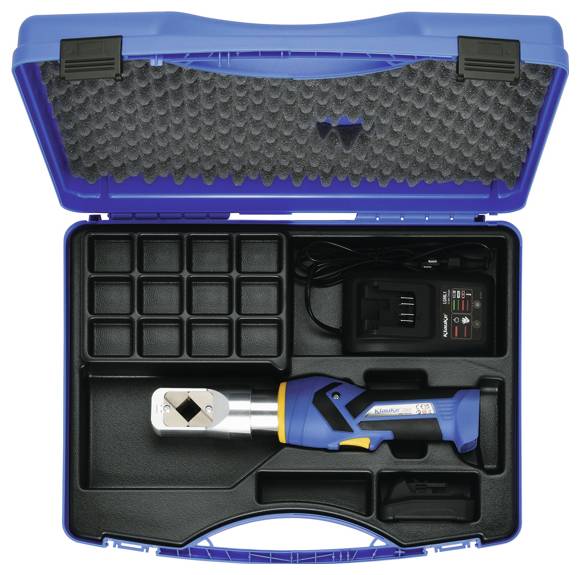

Cordless-hydraulic pressing tool, large cross-section range from 6 mm² to 120 mm², non-working, square crimping, especially for wire-end sleeves, slim press head - Ideal for critical space, closed press head, rotatable, one-button operating concept for controlling all tool functions, ergonomic design for comfortable one-handed operation, low weight for fatigue-free working, powerful 10.8 V Li-ion battery technology with charge status indicator, fast pressing cycles for efficient working, quick motor stop for high safety of use, automatic return after full pressing, manual return stop, manual return when required, multi-function LED for maintenance indication, battery charge status indicator and data transfer via USB adapter, environmentally friendly hydraulic oil, biodegradable
