Buy Klauke ESM25CFM ESM25CFM Cordless hydraulic cutter 25 mm

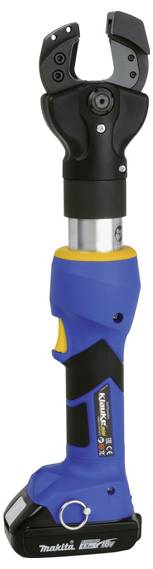

A blue and black handheld mechanical tool with a clamp-like top and battery base. It is used for crimping or cutting cables.

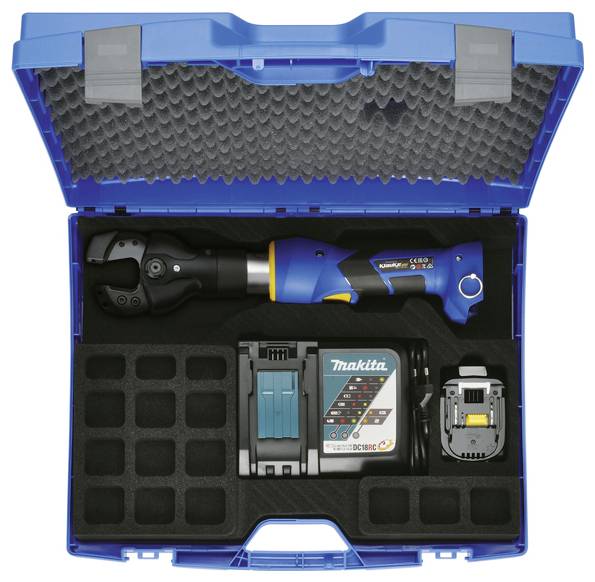

Blue carrying case with foam padding, containing a cordless electric crimping tool and accessories, including a battery and charger.

1/2

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Cutting tool, battery-hydraulic

Suitable for overhead line (ACSR, Aldrey), tensioning cables and high-strength tensioning cables

Technical specifications

Head shape: Scissors open
Cutting range: Overhead line (ACSR, Aldrey) up to Ø 25 mm, tensioning cables up to Ø 12 mm
Cutting force 67 kN
Cutting time: S - 10 s (depending on material thickness)

Product type: Cordless hydraulic cutter

Manufacturer part #: ESM25CFM

Wire hardness diameter (max.): 25 mm

Weight: 3.0 kg

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3429735 Klauke ESM25CFM ESM25CFM Cordless hydraulic cutter 25 mm

Description

ESM 25 battery-hydraulic cutting tool Ø 25 mm, for cutting al/St-ropes (ACSR), round materials (Cu, Al) as well as reinforced cables as also tensioning ropes (stay wire), protected cutting mechanism, all tool data in the view owing to integrated display, comfortably exchangeable cutting blades for uninterrupted working

This text is machine translated.
