Klauke HK252 HK252 Squeezer universal 16 up to 625 mm² Incl. steel case
EAN:
Part number:
Item no:
Technical specifications
- Press-shape: Universal (changeable inserts)
- Design/actuation: Hydraulic press head with unit
- Inserts can be replaced: Yes
- With automatic reverse: Yes
- Number of inserts supplied: 1
- Product type
Squeezer
- Manufacturer part #
HK252
- Range of uses
universal
- Suitable for
Ferrules
Connector
- Crimp area
16 up to 625 mm²
- Crimp area (min.)
16 mm²
- Crimp area (max.)
625 mm²
- Length
2400 mm
- Material
Steel
- Features
Incl. steel case
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3430938 Klauke HK252 HK252 Squeezer universal 16 up to 625 mm² Incl. steel case
Description

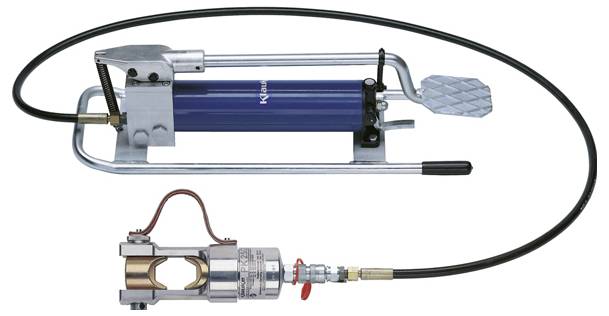

Hydraulic system with 250 kN pressing force. Foot pump with two-stage hydraulics. For replaceable inserts of the 25 series, wide crimping. Pressed head H-shape with quick-coupling, can be rotated 360° in the pressure-free state. Manual return as required, also in the high pressure range. Supplied with hydraulic hose, 2m (HS22), steel box with wheels (MKU).
