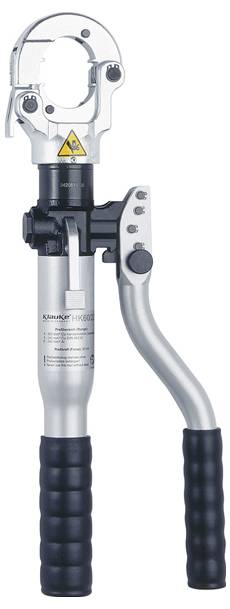

Klauke HK6022 HK6022 Squeezer Crimp cable lugs 6 up to 300 mm²
EAN:
Part number:
Item no:
Technical specifications
- Press-shape: Universal (changeable inserts)
- Execution/actuation: Hand-hydraulic
- Inserts can be replaced: Yes
- With automatic reverse: Yes
- Number of inserts supplied: 1
- Product type
Squeezer
- Manufacturer part #
HK6022
- Range of uses
Crimp cable lugs
- Suitable for
Ferrules
Connector
- Crimp area
6 up to 300 mm²
- Crimp area (min.)
6 mm²
- Crimp area (max.)
300 mm²
- Length
460 mm
- Material
Aluminium
- Suitable for
Klauke
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3429960 Klauke HK6022 HK6022 Squeezer Crimp cable lugs 6 up to 300 mm²
Description
Slim head - Ideal with critical space requirements. For replaceable inserts from the 22 series, narrow press. Closed press head, foldable, rotatable. Low weight through high-quality aluminum casing. 2-stage hydraulics with fast forward and power stroke. Automatic rewind after complete crimping Manual reverse if required. Environmentally friendly hydraulic oil, rapidly biodegradable. Delivery: Steel sheet box for HK 60/22 or HK 60/22 W with space for 17 pair of crimp inserts (MK6022).
