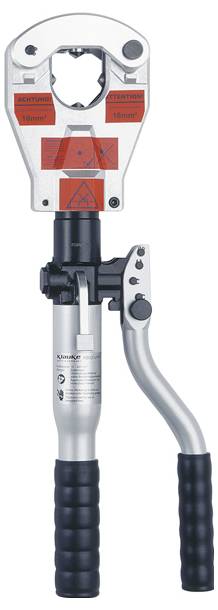

Klauke HK60VPFT HK60VPFT Squeezer Spade terminals 16 up to 300 mm² w/o crimp inset
EAN:
Part number:
Item no:
Technical specifications
- Press form: Four-punch press
- Execution/actuation: Hand-hydraulic
- Inserts can be replaced: No.
- With automatic reverse: Yes
- Number of inserts supplied: 1
- Product type
Squeezer
- Manufacturer part #
HK60VPFT
- Range of uses
Spade terminals
- Suitable for
Ferrules
Connector
- Crimp area
16 up to 300 mm²
- Crimp area (min.)
16 mm²
- Crimp area (max.)
300 mm²
- Length
535 mm
- Material
Aluminium
- Suitable for
Klauke
- Features
w/o crimp inset
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3430554 Klauke HK60VPFT HK60VPFT Squeezer Spade terminals 16 up to 300 mm² w/o crimp inset
Description
Suitable for crimping of cable lugs and connectors of normal version as well as fine and ultra-fine stranded conductors up to 300 mm 2. The patented centering system ensures optimum pressing results at all times. Closed press head - Ideal in open cable construction. Four-punch pressing with patented centering system, no inserts needed. Closed press head with bolt lock, foldable, rotatable. Low weight through high-quality aluminum casing. 2-stage hydraulics with fast forward and power stroke. Automatic rewind after complete crimping Manual reverse if required. Environmentally friendly hydraulic oil, rapidly biodegradable. Delivery: Steel sheet box for HK 60 VP or HK 60 VP/FT (MK60VP), gauge and 10 test cylinder (TS10B).
