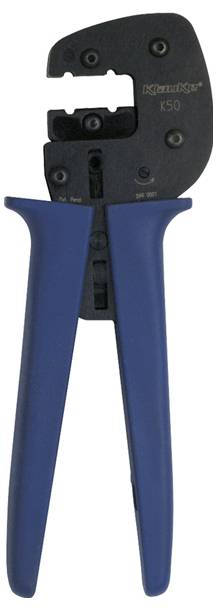

Klauke K50 K50 Squeezer universal 0.14 up to 50 mm² incl. exchangeable crimp insets
EAN:
Part number:
Item no:
Technical specifications
- Press-shape: Universal (changeable inserts)
- With locking device: Yes
- Construction/actuating: Mechanical
- Inserts can be replaced: Yes
- With automatic reverse: No.
- Product type
Squeezer
- Manufacturer part #
K50
- Range of uses
universal
- Crimp area
0.14 up to 50 mm²
- Crimp area AWG
26 up to 10 awg
- Crimp area (min.)
0.14 mm²
- Crimp area (max.)
50 mm²
- Crimp area AWG (min.)
10 awg
- Crimp area AWG (max.)
26 awg
- Length
220 mm
- Suitable for
Klauke
- Features
incl. exchangeable crimp insets
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3430941 Klauke K50 K50 Squeezer universal 0.14 up to 50 mm² incl. exchangeable crimp insets
Description
Parallel-set crimping jaws. Quick crimp insert change without readjustment thanks to special fixing system. Exact positioning of the crimp inserts by fixing pins of the inserts. Optimal power transmission. With locking device. Handles with sliding protection.
