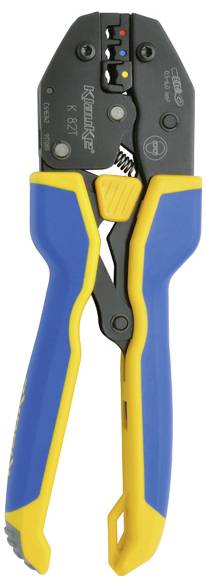

Klauke K82T K82T Squeezer Insulated wire connectors 0.5 up to 6 mm²
EAN:
Part number:
Item no:
Technical specifications
- Press form: Oval press
- With locking device: Yes
- Construction/actuating: Mechanical
- Inserts can be replaced: No.
- With automatic reverse: No.
- Number of inserts supplied: 1
- Product type
Squeezer
- Manufacturer part #
K82T
- Range of uses
Insulated wire connectors
- Suitable for
Ferrules
Connector
- Crimp area
0.5 up to 6 mm²
- Crimp area AWG
22 up to 10 awg
- Crimp area (min.)
0.5 mm²
- Crimp area (max.)
6 mm²
- Crimp area AWG (min.)
10 awg
- Crimp area AWG (max.)
22 awg
- Length
225 mm
- Suitable for
Klauke
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3429737 Klauke K82T K82T Squeezer Insulated wire connectors 0.5 up to 6 mm²
Description
Pressing tool for insulated cable connections 0.5 - 6 mm², also suitable for the processing of insulated connectors with vibration protection (PIDG - connector), highest material quality for long service life, precise adjustment of the pre-tension for holding a constant pressing power, less effort thanks to new lever mechanics, 3K-grip: YELLOW: Hard Kern for power transmission, BLUE: Soft ergonomic grip surface, GRAY: soft slip protection, easy handling thanks to reduced opening width of the tool, optimum ergonomics through joint-protecting position of the hand surface and finger, extremely high vibration protection through special pressing of the cable insulation (Diamond-Crimp)
