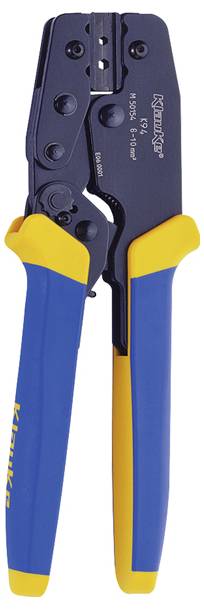

Klauke K94 K94 Squeezer Crimp terminal 6 up to 10 mm²
EAN:
Part number:
Item no:
Technical specifications
- Press-shape: Hexagonal (hexagonal)
- With locking device: Yes
- Construction/actuating: Mechanical
- Inserts can be replaced: No.
- With automatic reverse: No.
- Number of inserts supplied: 1
- Product type
Squeezer
- Manufacturer part #
K94
- Range of uses
Crimp terminal
- Suitable for
Ferrules
Connector
- Crimp area
6 up to 10 mm²
- Crimp area AWG
10 up to 7 awg
- Crimp area (min.)
6 mm²
- Crimp area (max.)
10 mm²
- Crimp area AWG (min.)
7 awg
- Crimp area AWG (max.)
10 awg
- Length
220 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3430147 Klauke K94 K94 Squeezer Crimp terminal 6 up to 10 mm²
Description
Adjustable tool fixing system Precision drive With locking device for evenly controlled crimping results. Accurate cross section assignment due to permanent marking on the press tool. Handles with sliding protection. Adjustment wheel for balancing the natural tool wear.
