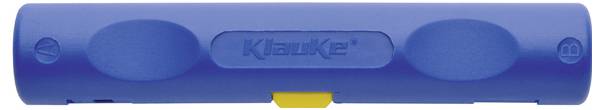

Klauke KL720 KL720 Cable stripping pliers 0.75 up to 16 mm² 12 up to 24 awg 4.8 up to 7.5 mm
EAN:
Part number:
Item no:
Technical specifications
- Notch depth adjustable: No.
- Longitudinal cut: No.
- Round cut: Yes
- Spiral cut: No.
- Changeable blades: No.
- Product type
Cable stripping pliers
- Suitable for
Coaxial cables
- Operating range (diameter)
4.8 up to 7.5 mm
- Working area diameter (min.)
4.8 mm
- Operating range (diameter) (max.)
7.5 mm
- Working area (cross section)
0.75 up to 16 mm²
- Working area cross section (min.)
0.75 mm²
- Operating range (cross section) (max.)
16 mm²
- Operating range (AWG diameter)
12 up to 24 awg
- Operating range (AWG cross section) (min.)
24 awg
- Operating range (AWG cross section) (max.)
12 awg
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3429532 Klauke KL720 KL720 Cable stripping pliers 0.75 up to 16 mm² 12 up to 24 awg 4.8 up to 7.5 mm
Description
Adjustment of cutting depth is not necessary. Step-by-step stripping of all common coaxial cables (e.g. antennas and transmission cables) from 4.8 - 7.5 mm external diameter, flexible cables such as 3 x 0.75 mm², 10 mm² and 16 mm².
