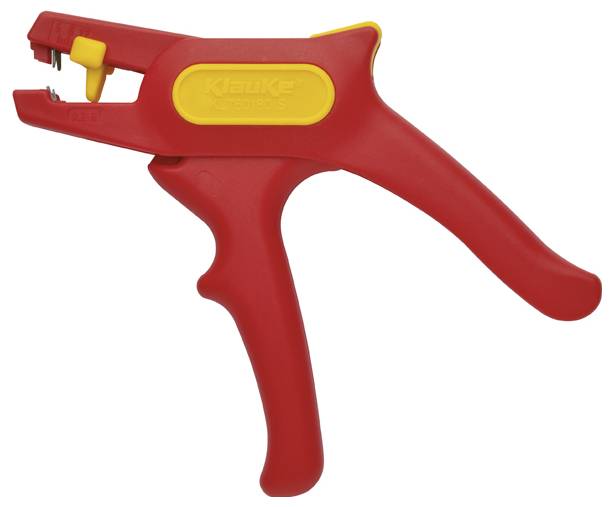

Klauke KL760180IS KL760180IS VDE Cable stripping pliers 0.2 up to 6 mm² 5 up to 12 mm
EAN:
Part number:
Item no:
Technical specifications
- Stripping length adjustable: Yes
- Notch depth adjustable: Yes
- Self-adjusting: Yes
- Longitudinal: Yes
- Round cut: No.
- Spiral cut: No.
- With wire cutter: No.
- Insulated: Yes
- Protective insulation 1000 V: Yes
- VDE tested: Yes
- ESD tested: No.
- With impact protection: No.
- Grip cover: Without
- Surface treatment: Sandblasted
- Product type
Cable stripping pliers
- Operating range (diameter)
5 up to 12 mm
- Working area diameter (min.)
5 mm
- Operating range (diameter) (max.)
12 mm
- Working area (cross section)
0.2 up to 6 mm²
- Working area cross section (min.)
0.2 mm²
- Operating range (cross section) (max.)
6 mm²
- Range of use
VDE
- Length stop range
5 up to 12 mm
- Length stop (min.)
5 mm
- Length stop (max.)
12 mm
- Length
215 mm
- Weight
130 g
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3429433 Klauke KL760180IS KL760180IS VDE Cable stripping pliers 0.2 up to 6 mm² 5 up to 12 mm
Description
Tested according to VDE standard for works on live conductors up to 1000 V. Adjustable length stop from 5 - 12 mm. For flexible and solid conductors from 0.2 - 6 mm². Locking function for protecting the blades.
