Buy Klauke SC105B Cable cutting scissors Suitable for (cable stripping) Single/multi-core aluminium and copper cables 105 mm

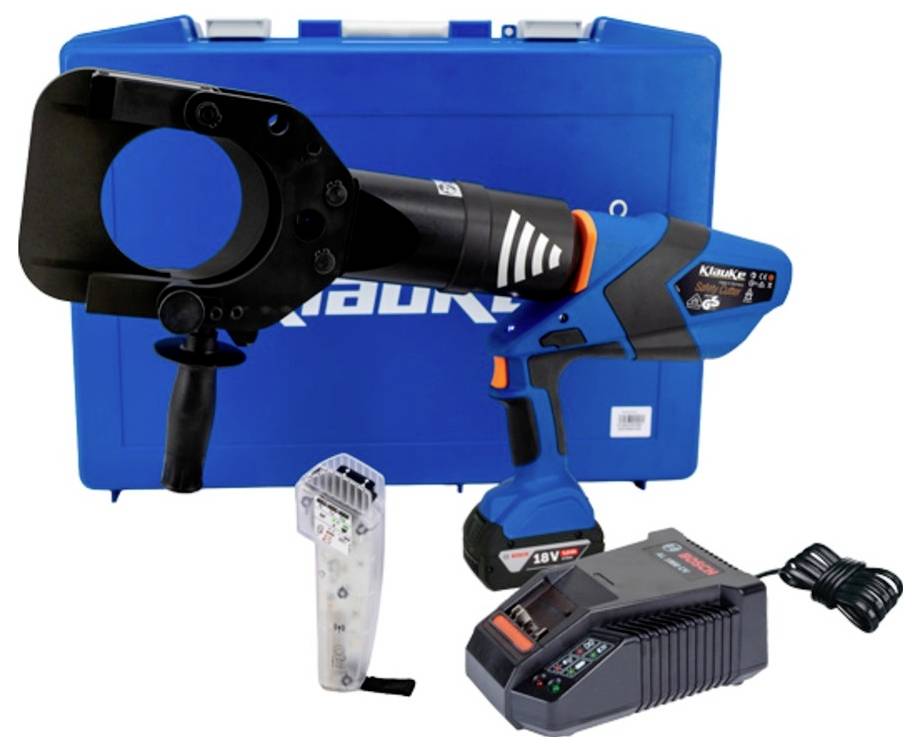

Blue cordless hydraulic crimping tool kit with carrying case, battery, charger, and accessory dies displayed on white background.

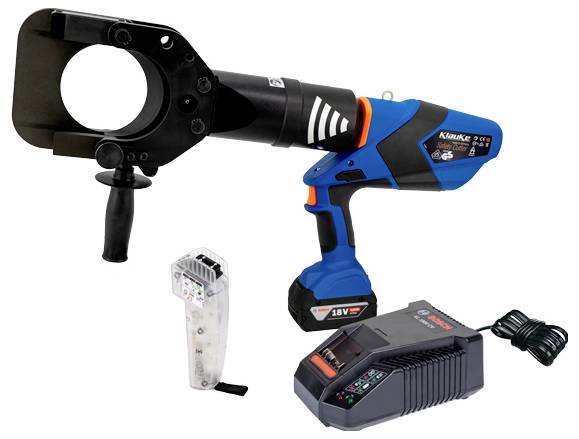

Cordless hydraulic cable cutter set with blue-and-black cutting tool, battery, charger, and accessory, shown on white background.

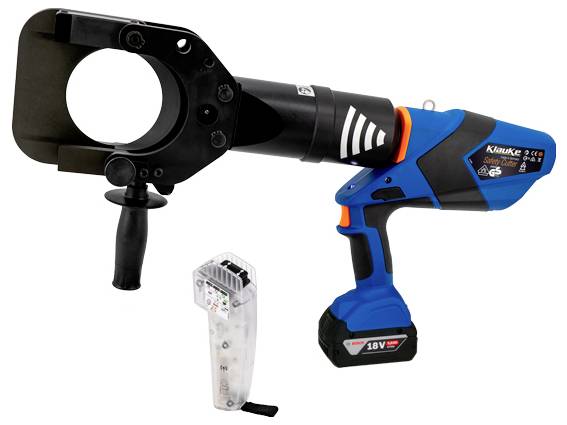

Battery-powered hydraulic cable cutter with blue-and-black handle, black cutting head, and a separate clear plastic case/accessory below.

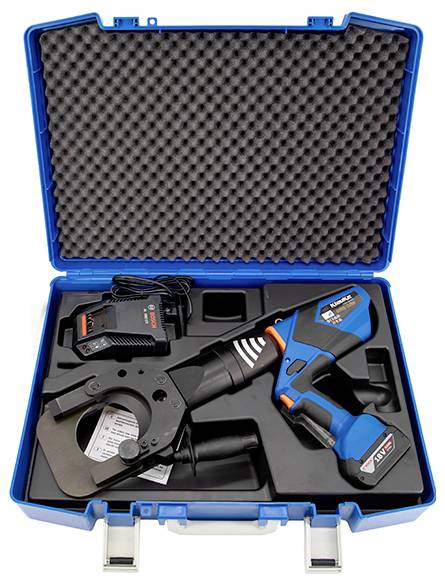

Open blue hard case with foam holding a battery-powered hydraulic cable cutter, charger, battery, and accessories.

1/4

Datasheet (PDF)

Dispatches on Thu, 1 Oct

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 10,175.63 / piece)

€ 10,175.63

plus VAT.

14 days return policy included

Report legal concerns

Highlights & Details

Safety cutter, Ø 105mm, Bosch battery 5 Ah

Tested and certified according to GS-ET-23 by the VDE testing and certification institute
Can be used exclusively via remote control
Worldwide unique true limit position detection
For cutting copper and aluminum cables according to EN 60228 class 1 and 2 also with light steel armoring

Technical specifications

Product type: Cable cutting scissors

Manufacturer part #: SC105B

Suitable for: Single/multi-core aluminium and copper cables

Wire hardness diameter (max.): 105 mm

Weight: 10.5 kg

: 105 mm

: FALSE

: 1000 mm²

: FALSE

: FALSE

: 620 mm

: Accumulator-hydraulic

: FALSE

: FALSE

: TRUE

: TRUE

: 2-components

: FALSE

: FALSE

: FALSE

: TRUE

Documents & Downloads

Datasheet

Datasheet 3778184 Klauke SC105B Cable cutting scissors Suitable for (cable stripping) Single/multi-core aluminium and copper cables 105 mm

User & Safety Instructions

User & Safety Instructions 3778184 Klauke SC105B Cable cutting scissors Suitable for (cable stripping) Single/multi-core aluminium and copper cables 105 mm

Information

Information 3778184 Klauke SC105B Cable cutting scissors Suitable for (cable stripping) Single/multi-core aluminium and copper cables 105 mm

Description

Safety cutting device certified in accordance with GS-ET-23 for the first cut of potentially live cables up to Ø 105mm, 60kV (multi-phase) and 110kV (single-phase). Only to be operated using a remote control with integrated distance measurement to signal the prescribed safety distance of 10m. The real and safe cutting recognition is transmitted to the remote control via a reed sensor at the tool head and signaled acoustically and visually. The battery status monitoring provides for no unfinished cuts. Very compact and light for easy handling and storage. The tool weighs 10.5 kg with battery. High user safety through cutting head with bolt lock. Closed cutting head, foldable, rotatable. Electronic control and monitoring of cutting process. Ergonomic 2-component plastic housing with soft inserts Powerful 18V lithium-ion rechargeable battery Powerful motors for maximum working speed. LED display for displaying tool data. Multi-functional LED for maintenance display, charging status display of rechargeable battery Environmentally friendly hydraulic oil, rapidly biodegradable.

This text is machine translated.
