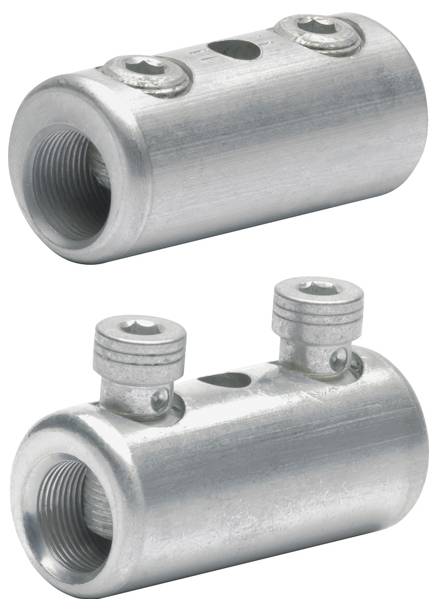

Klauke SV300 SV300 Screw connector flexible: 6-25 mm² fixed: 6-35 mm² 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Screw connector
Cross section (flexible) (min.)
6 mm²
Cross section (flexible) (max.)
25 mm²
Cross section (inflexible) (min.)
6 mm²
Technical specifications
- Voltage range: Up to 15 kV
- Oil stop/center bridge: No.
- Nominal cross-section aluminum. Right: 6-35 mm²
- Nominal cross-section aluminum. RM: 6-25 mm²
- Nominal cross-section aluminum. SE: 6-35 mm²
- Nominal cross-section aluminum. SM: 6-25 mm²
- Nominal cross-section copper. Right: 6-35 mm²
- Nominal cross-section copper. RM: 6-25 mm²
- Nominal cross-section copper. SM: 6-25 mm²
- Material of conductor: Aluminium/copper
- Number of screws: 2
- With insulation: No.
- With solder hole: No.
- Surface protection: Plain
- Packaging type
Piece
- Product type
Screw connector
- Cross section (flexible) (min.)
6 mm²
- Cross section (flexible) (max.)
25 mm²
- Cross section (inflexible) (min.)
6 mm²
- Cross section (inflexible) (max.)
35 mm²
- Content
1 pc(s)
- Manufacturer part #
SV300
- Connection
Screw terminal
- Contact material
Aluminium alloy
- Connector clip features
Test window
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3429643 Klauke SV300 SV300 Screw connector flexible: 6-25 mm² fixed: 6-35 mm² 1 pc(s) Piece
Description
Ideal for connecting equal and unequal conductor cross-sections. For connecting different types of conductor and materials according to VDE 0295 class 1 and 2 and Al conductor according to DIN 48201 part 5. With inspection hole for cable insertion control (different materials must not come into contact). Special groove profile inside for destroying the oxidation layer during screwing. Design with 2 screws. Clamp body: High strength aluminum alloy.
