Name: Klingspor 325379 DS 600 B diamond grinding plate, 180 x 8 x 22.23 mm 24 segments 8 x 5.5 mm, 2-row Diameter 180 mm
Brand: Klingspor
SKU: 3530174
Availability: BackOrder

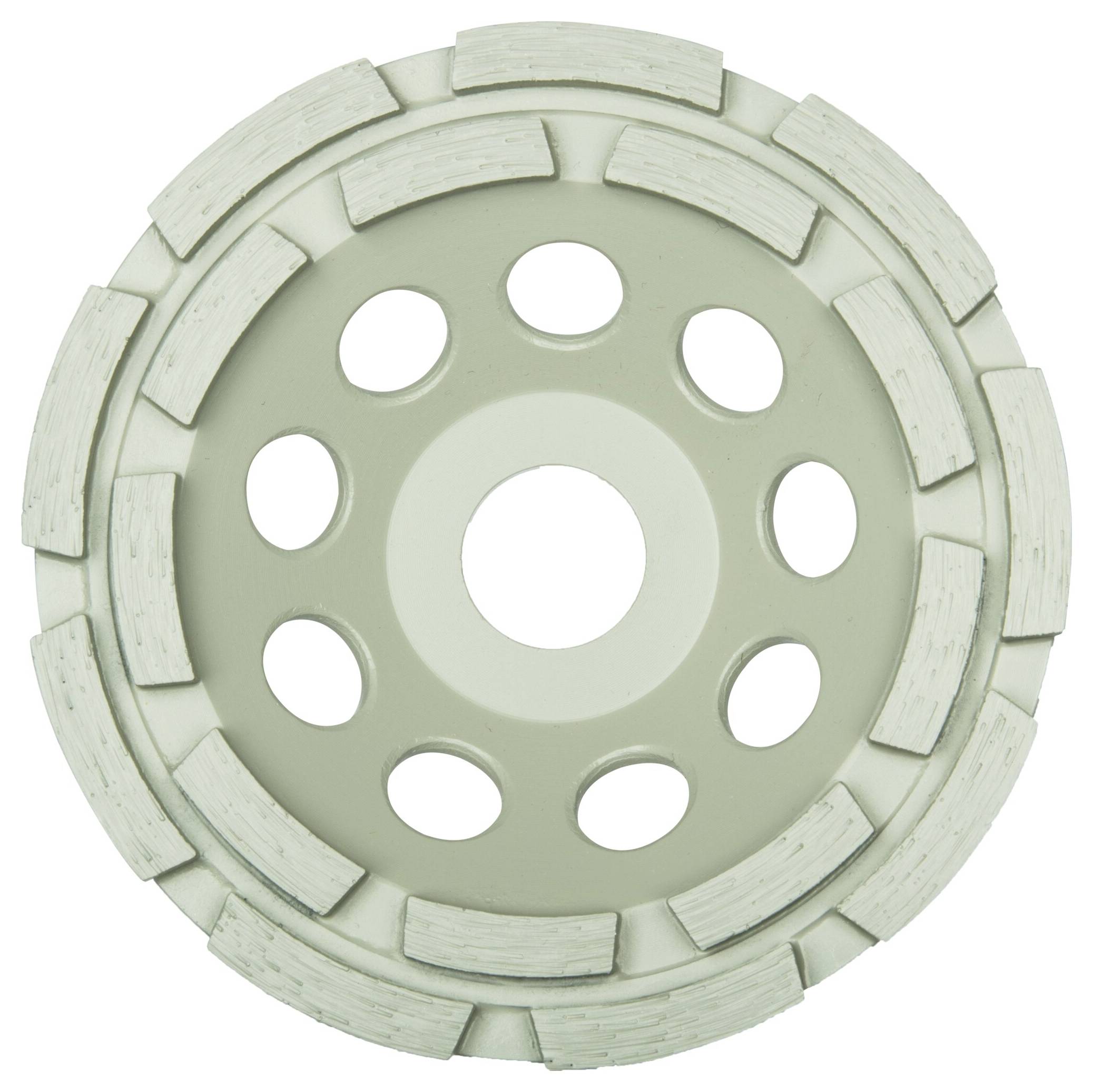

A circular grinding wheel with multiple oval holes and segmented edges for effective cutting and grinding tasks.

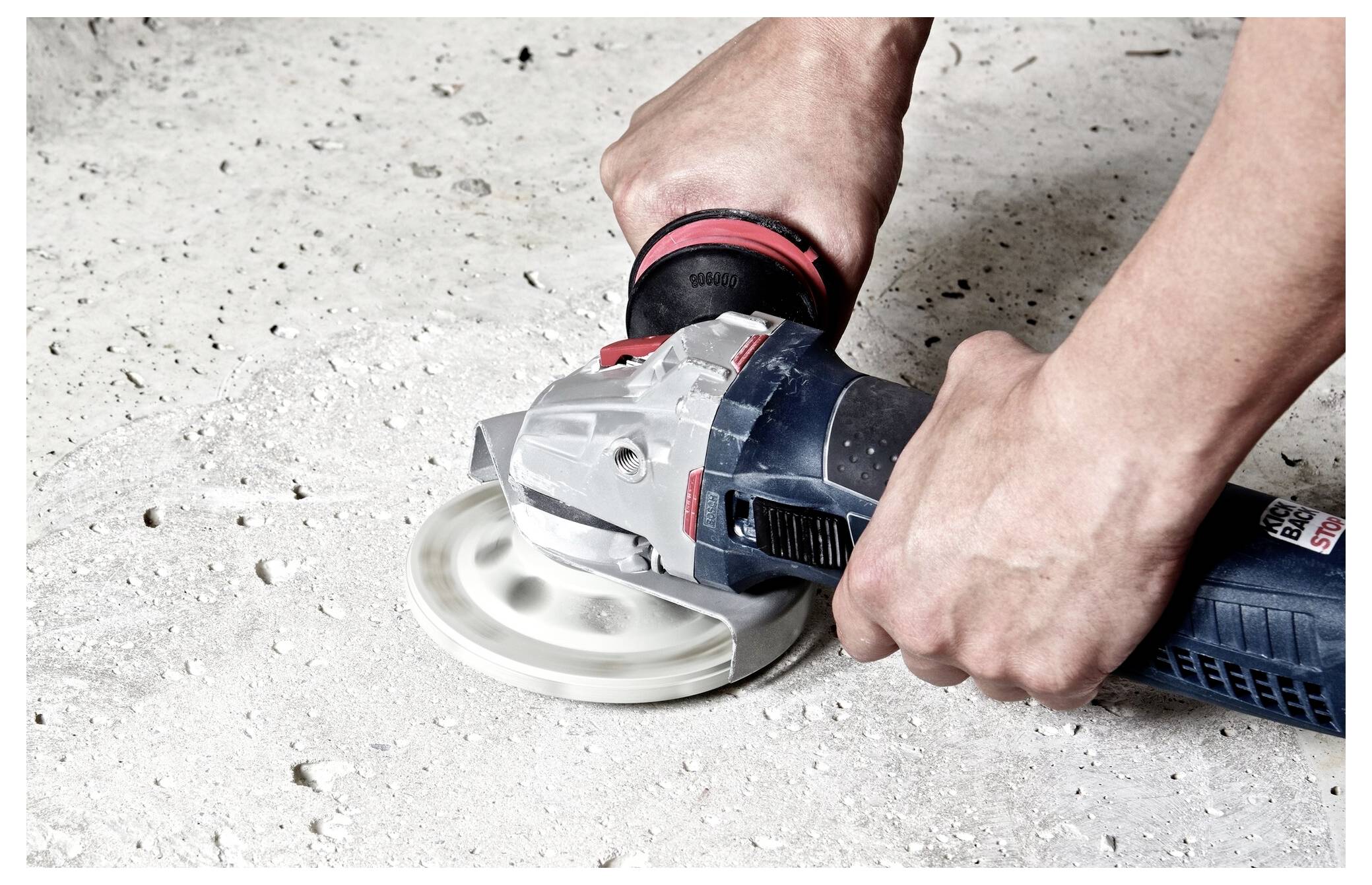

Hands holding a power grinder smoothing a concrete surface, emitting dust. Focus on the tool and action, suggesting construction work.

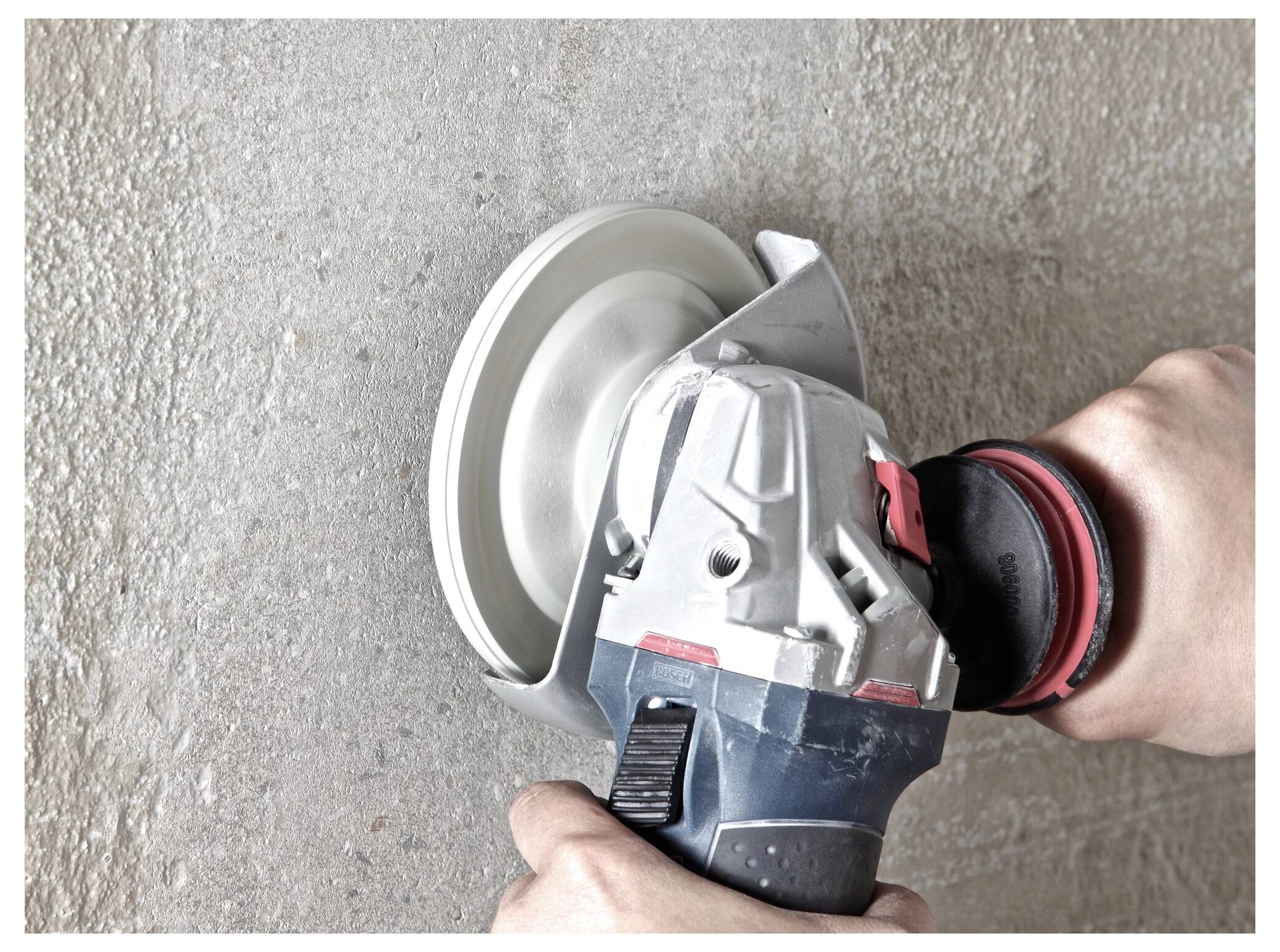

A person uses an angle grinder to grind a rough concrete surface, focusing on a smooth, even finish. Safety gloves are worn.

1/3

Image similar

Datasheet (PDF)

Dispatches on Thu 22 Oct

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 144.99 / piece)

€ 144.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

DS 600 B diamond grinding plate, 180 x 8 x 22.23 mm 24 segments 8 x 5.5 mm, 2-row

Two-row grinding disc for processing concrete and abrasive materials
Good dust removal
Aggressive grinding performance
High service time
M14 adapter available, see DZ 114

Technical specifications

Main application area: Concrete, screed, construction site materials
Usage: Angle grinder
Aggressivity: High
Design: Soldered
Segmentation: Standard
Service life: Very high
Top speed 80 m/s.
Maximum speed 8500 rpm
Machine type: Angle grinder
Edge version: 2-row
Hole diameter 22.23 mm
Number of segments: 24 pcs
Segment width 8 mm
Segment height 5.5 mm

Product type: Sanding disc mount

(Ø): 180 mm

Content: 1 pc(s)

Features: Diamond

Material suitability: Concrete

Bore Ø: 22.23 mm

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3530174 Klingspor 325379 DS 600 B diamond grinding plate, 180 x 8 x 22.23 mm 24 segments 8 x 5.5 mm, 2-row Diameter 180 mm

User & Safety Instructions

User & Safety Instructions 3530174 Klingspor 325379 DS 600 B diamond grinding plate, 180 x 8 x 22.23 mm 24 segments 8 x 5.5 mm, 2-row Diameter 180 mm

Information

Information 3530174 Klingspor 325379 DS 600 B diamond grinding plate, 180 x 8 x 22.23 mm 24 segments 8 x 5.5 mm, 2-row Diameter 180 mm

Description

DS 600 B Supra is Ideal for fast, dust-free absorption of concrete, screed and other building materials. The professional grinding disc for everyday use offers very long service life and aggressive grinding performance.
