Buy Klingspor 336609 DT 900 UX Special Diamond cutting disc Diameter 300 mm Bore diameter 25.4 mm Concrete (multi-purpose),

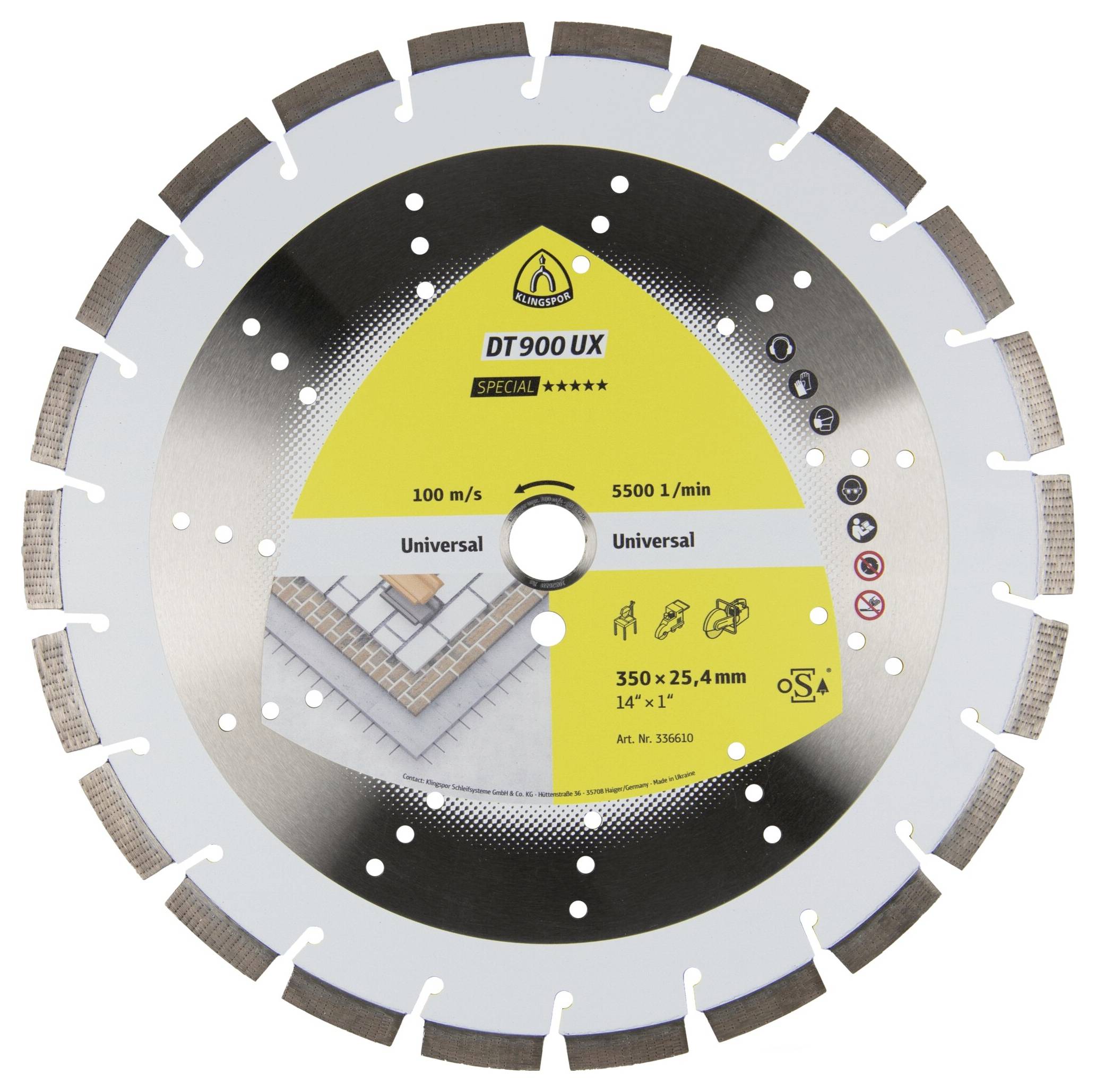

Circular saw blade with yellow label. It shows model 'DT900 UX', 'Universal', speed '5500 1/min', and diameter '350 x 25.4mm'.

Image similar

Datasheet (PDF)

Dispatches on Thu, 1 Oct

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 172.26 / piece)

€ 172.26

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

DT 900 UX diamond cutting discs, 300 x 2.8 x 25.4 mm 20 segments 40 x 2.8 x 12 mm, standard toothing

Titanium-coated diamonds for first-class cutting action
Specially developed matrix segments with optimized diamond arrangement ensure very high cutting speed and good service life
Ideally suited for almost all construction site materials

Technical specifications

Useable: Petrol separator, joint cutter, table saw
Aggressivity: Highest
Design: Laser welded
Segmentation: Standard
Service life: Highest
Top speed 100 m/s.
Maximum speed 6400 rpm
Machine type: Joint cutter
Edge design: Standard teeth
Number of segments: 20 pcs
Segment width 2.8 mm
Segment height 12 mm
Segment length 40 mm

Product type: Diamond cutting disc

Material suitability: Concrete (multi-purpose)
Construction materials
Recycled waste concrete (reinforced)

Bore Ø: 25.4 mm

Dim: (Ø) 300 mm

(Ø): 300 mm

Rotational speed (max.): 6400 U/min

Features: Diamond

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3530247 Klingspor 336609 DT 900 UX Special Diamond cutting disc Diameter 300 mm Bore diameter 25.4 mm Concrete (multi-purpose),

User & Safety Instructions

User & Safety Instructions 3530247 Klingspor 336609 DT 900 UX Special Diamond cutting disc Diameter 300 mm Bore diameter 25.4 mm Concrete (multi-purpose),

Information

Information 3530247 Klingspor 336609 DT 900 UX Special Diamond cutting disc Diameter 300 mm Bore diameter 25.4 mm Concrete (multi-purpose),

Description

Specially developed matrix segments with performance-optimized arrangement of diamonds provide a very high cutting speed and good service life - Ideally suited to almost all construction materials

This text is machine translated.
