Buy Klingspor 355720 DT 600 ACM Supra Diamond cutting disc Diameter 115 mm Bore diameter 22.23 mm Steel, Stainless steel, Me

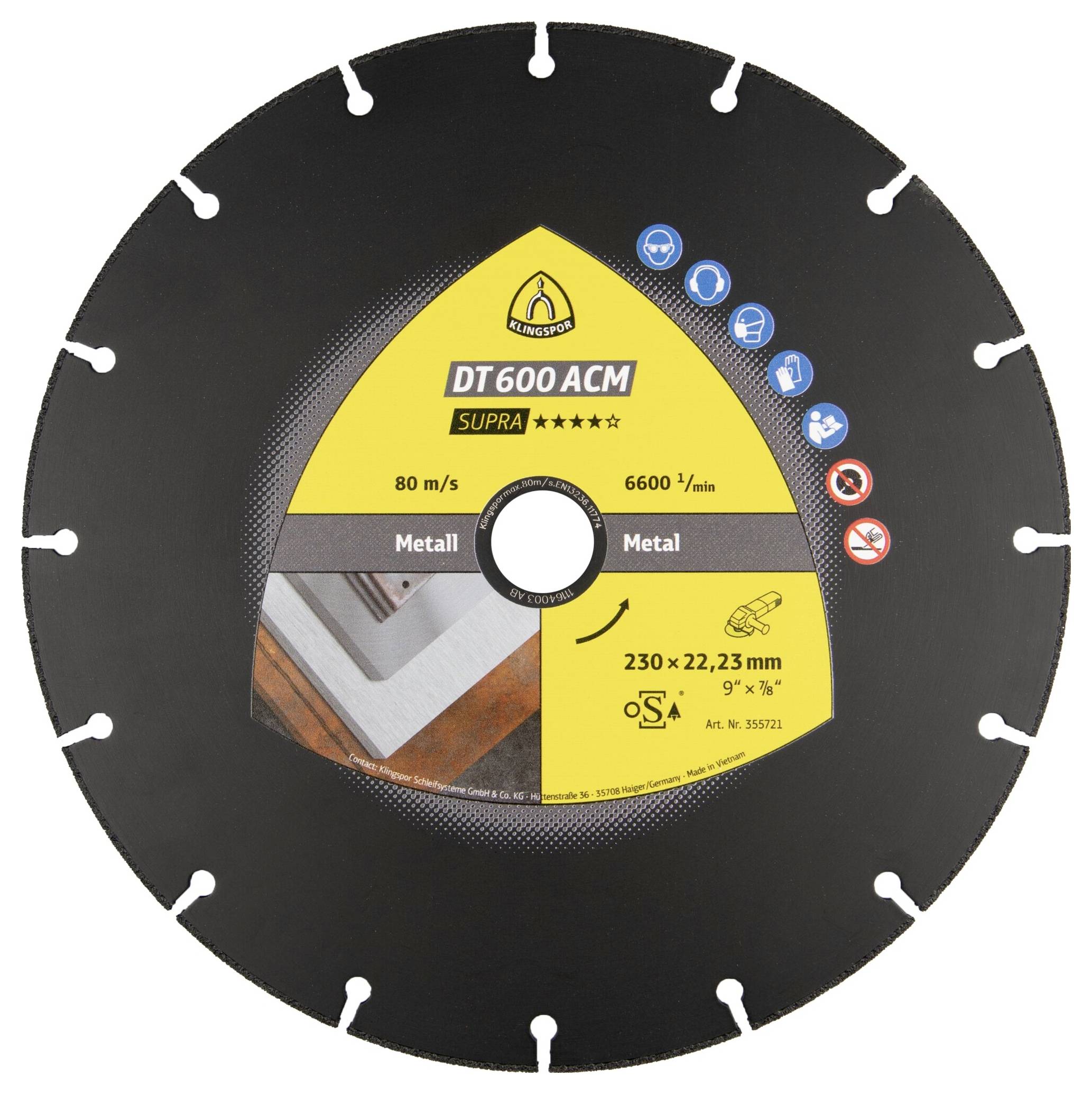

Circular metal cutting blade labeled 'DT 600 ACM Supra'. Designed for 80 m/s, 6600 rpm. Used for metal, 230 x 22.23 mm dimensions.

Image similar

A person wearing gloves uses a blue angle grinder to cut a metal rail, held by a vise, in an industrial setting.

A person operates an angle grinder, cutting metal with sparks flying. They wear protective gloves, demonstrating safe handling in a workshop.

A close-up of a person using an angle grinder, emitting bright sparks, to cut a metal piece in a workshop setting.

Person wearing gloves uses an angle grinder on a metal pipe, creating bright sparks in a workshop setting.

1/5

Image similar

Datasheet (PDF)

Dispatches on Thu, 1 Oct

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 39.49 / piece)

€ 39.49

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

DT 600ACM diamond cutting discs, 115 x 1.3 x 22.23 mm 8 segments 42 x 1.3 x 1.8 mm, VG vacuum soldered

Vacuum soldered disc for almost all metallic materials
No wear resistance as with standard diamond cutting discs and therefore almost odorless and dirt free
Extra thin main sheet for high cut and aggressiveness

Technical specifications

Usage: Angle grinder
Aggressivity: Very high
Design: Vacuum soldered
Segmentation: Standard
Service life: Very high
Top speed 80 m/s.
Maximum speed 13300 rpm
Machine type: Angle grinder
VG/vacuum-soldered edge version
Number of segments: 8 pcs
Segment width 1.3 mm
Segment height 1.8 mm
Segment length 42 mm

Product type: Diamond cutting disc

Material suitability: Steel
Stainless steel
Metal
Non-ferrous metal
Die-cast

Bore Ø: 22.23 mm

Dim: (Ø) 115 mm

(Ø): 115 mm

Rotational speed (max.): 13300 U/min

Features: Diamond

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 3530150 Klingspor 355720 DT 600 ACM Supra Diamond cutting disc Diameter 115 mm Bore diameter 22.23 mm Steel, Stainless steel, Me

User & Safety Instructions

User & Safety Instructions 3530150 Klingspor 355720 DT 600 ACM Supra Diamond cutting disc Diameter 115 mm Bore diameter 22.23 mm Steel, Stainless steel, Me

Information

Information 3530150 Klingspor 355720 DT 600 ACM Supra Diamond cutting disc Diameter 115 mm Bore diameter 22.23 mm Steel, Stainless steel, Me

Description

Vacuum-soldered disc for almost all metallic materials - No wear-resistant as with the conventional diamond cutting discs and thus almost odorless and dirt-neutral - Extra thin main blade for high cut and aggressiveness
