Buy Klingspor 355721 DT 600 ACM Supra Diamond cutting disc Diameter 230 mm Bore diameter 22.23 mm Steel, Stainless steel, Me

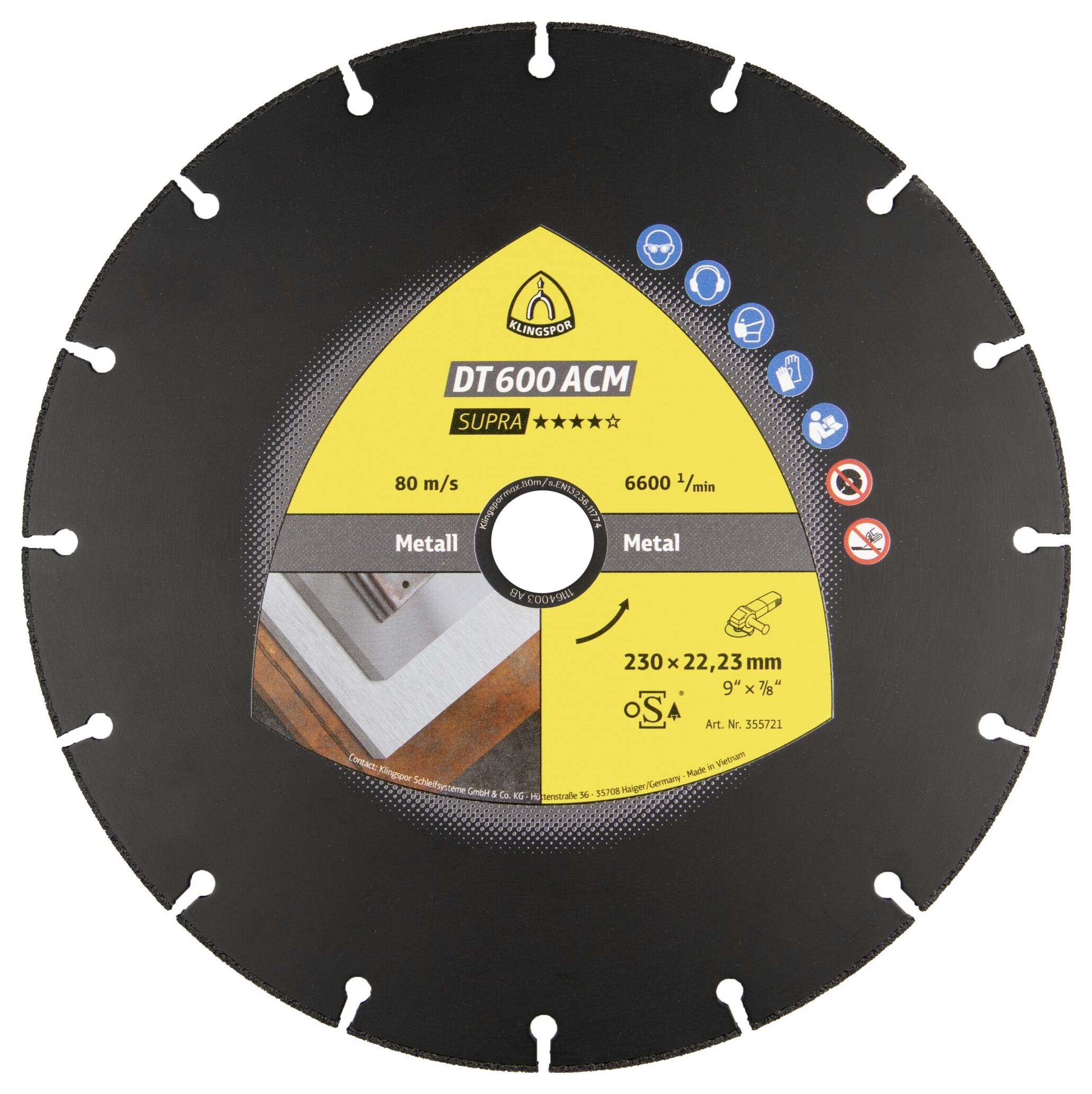

A circular saw blade labeled 'DT 600 ACM SUPRA' for cutting metal, detailing specs: 80 m/s max speed, 230 x 22.23 mm size, 6600 rpm.

Image similar

'A person in gloves uses a power tool to cut a metal piece securely held in a vise in an industrial setting.'

A worker uses an angle grinder on metal, creating bright sparks. The worker wears safety gloves and holds the tool firmly against the metal.

A worker uses a power grinder, causing sparks to fly as metal is being cut, indicating a metalworking process.

A person is using an angle grinder to cut through a metal pipe, with sparks flying. The pipe is held by a vice on a workbench.

1/5

Image similar

Datasheet (PDF)

Dispatches on Tue, 13 Oct

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 88.23 / piece)

€ 88.23

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

DT 600ACM diamond cutting discs, 230 x 1.6 x 22.23 mm 16 segments 42 x 1.6 x 1.8 mm, VG vacuum soldered

Vacuum soldered disc for almost all metallic materials
No wear resistance as with standard diamond cutting discs and therefore almost odorless and dirt free
Extra thin main sheet for high cut and aggressiveness

Technical specifications

Usage: Angle grinder
Aggressivity: Very high
Design: Vacuum soldered
Segmentation: Standard
Service life: Very high
Top speed 80 m/s.
Maximum speed 6650 rpm
Machine type: Angle grinder
VG/vacuum-soldered edge version
Number of segments: 16 pcs
Segment width 1.6 mm
Segment height 1.8 mm
Segment length 42 mm

(Ø): 230 mm

Features: Diamond

Material suitability: Steel
Stainless steel
Metal
Non-ferrous metal
Die-cast

Bore Ø: 22.23 mm

Rotational speed (max.): 6650 U/min

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3530152 Klingspor 355721 DT 600 ACM Supra Diamond cutting disc Diameter 230 mm Bore diameter 22.23 mm Steel, Stainless steel, Me

User & Safety Instructions

User & Safety Instructions 3530152 Klingspor 355721 DT 600 ACM Supra Diamond cutting disc Diameter 230 mm Bore diameter 22.23 mm Steel, Stainless steel, Me

Information

Information 3530152 Klingspor 355721 DT 600 ACM Supra Diamond cutting disc Diameter 230 mm Bore diameter 22.23 mm Steel, Stainless steel, Me

Description

Vacuum-soldered disc for almost all metallic materials - No wear-resistant as with the conventional diamond cutting discs and thus almost odorless and dirt-neutral - Extra thin main blade for high cut and aggressiveness
