Buy Klingspor 355722 DT 600 ACM Supra Diamond cutting disc Diameter 125 mm Bore diameter 22.23 mm Steel, Stainless steel, Me

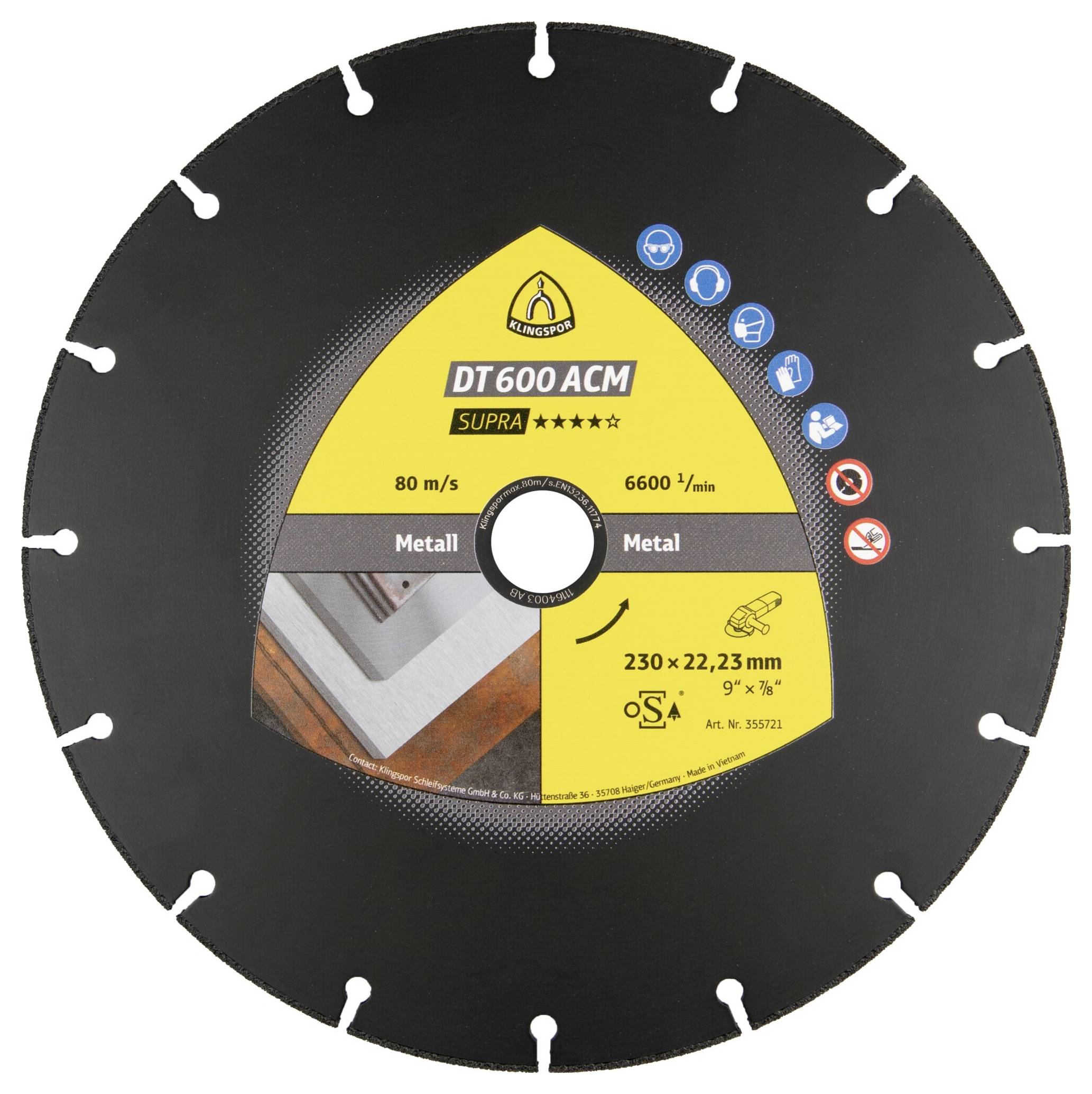

A circular saw blade labeled 'DT 600 ACM Supra' for metal cutting, with specifications of 230 x 22,23 mm, 6600 rev/min, 80 m/s.

Image similar

A person wearing gloves uses an angle grinder to cut metal, with sparks flying. They are working on a clamped piece in a workshop.

A worker grinds metal with a power tool, creating bright sparks.

A person wearing gloves uses a handheld grinder to cut a metal pipe, causing sparks to fly. The pipe is secured in a vice.

1/5

Image similar

Datasheet (PDF)

Dispatches on Thu, 1 Oct

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 47.05 / piece)

€ 47.05

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

DT 600ACM diamond cutting discs, 125 x 1.3 x 22.23 mm 10 segments 36 x 1.3 x 1.8 mm, VG vacuum soldered

Vacuum soldered disc for almost all metallic materials
No wear resistance as with standard diamond cutting discs and therefore almost odorless and dirt free
Extra thin main sheet for high cut and aggressiveness

Technical specifications

Usage: Angle grinder
Aggressivity: Very high
Design: Vacuum soldered
Segmentation: Standard
Service life: Very high
Top speed 80 m/s.
Maximum speed 12250 rpm
Machine type: Angle grinder
VG/vacuum-soldered edge version
Number of segments: 10 pcs
Segment width 1.3 mm
Segment height 1.8 mm
Segment length 36 mm

Product type: Diamond cutting disc

Material suitability: Steel
Stainless steel
Metal
Non-ferrous metal
Die-cast

Bore Ø: 22.23 mm

Dim: (Ø) 125 mm

(Ø): 125 mm

Rotational speed (max.): 12250 U/min

Features: Diamond

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 3530151 Klingspor 355722 DT 600 ACM Supra Diamond cutting disc Diameter 125 mm Bore diameter 22.23 mm Steel, Stainless steel, Me

User & Safety Instructions

User & Safety Instructions 3530151 Klingspor 355722 DT 600 ACM Supra Diamond cutting disc Diameter 125 mm Bore diameter 22.23 mm Steel, Stainless steel, Me

Information

Information 3530151 Klingspor 355722 DT 600 ACM Supra Diamond cutting disc Diameter 125 mm Bore diameter 22.23 mm Steel, Stainless steel, Me

Description

Vacuum-soldered disc for almost all metallic materials - No wear-resistant as with the conventional diamond cutting discs and thus almost odorless and dirt-neutral - Extra thin main blade for high cut and aggressiveness

This text is machine translated.
