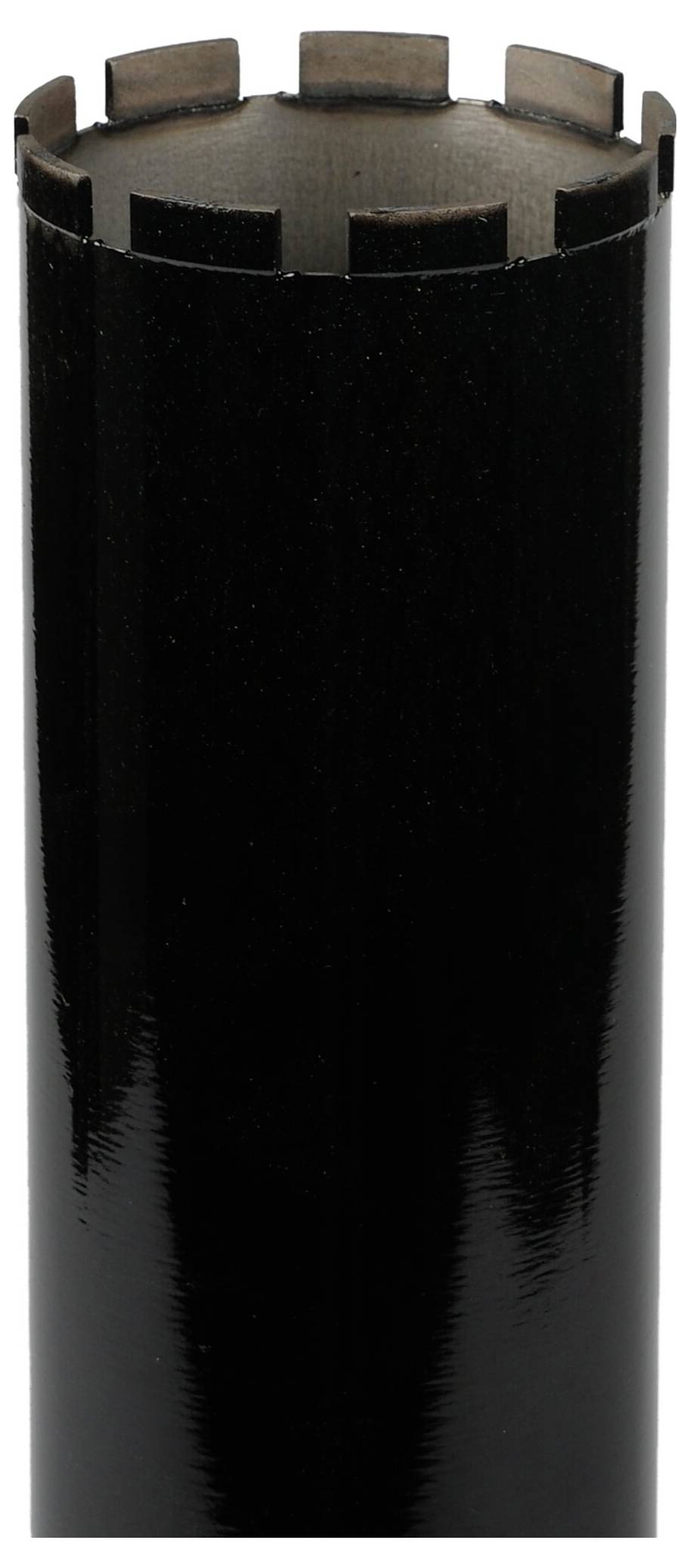

Klingspor DK 612 B Supra 325724 Drill bit 71 mm 1 pc(s)
EAN:
Part number:
Item no:
Product type
Drill bit
Drill hole Ø
71 mm
Material suitability
Concrete
Working length
300 mm
Tool holder
1/2" (12.5 mm)
Datasheet (PDF)
Number
Total (€ 151.25 / piece)
€ 151.25
plus VAT.
Highlights & Details
DK 612 B Drilling crowns, 71 x 2.5 x 300 mm 7 segments 24 x 2.5 x 10 mm, standard teeth thread 1/2"
- Core bit for universal use
- High cutting speed and service life
- Roof segments for fast cutting
- Can be used on electric drills
- For replacement segments see DE 600 B
Technical specifications
- Usage: Drilling stand
- Aggressivity: Very high
- Design: Laser welded
- Mounting: Thread 1/2"
- Edge design: Standard teeth
- Hole diameter 12.7 mm
- Diameter 71 mm
- Number of segments: 7 pcs
- Segment width 2.5 mm
- Segment height 10 mm
- Segment length 24 mm
- Usable length 300 mm
- Product type
Drill bit
- Drill hole Ø
71 mm
- Material suitability
Concrete
- Working length
300 mm
- Tool holder
1/2" (12.5 mm)
Documents & Downloads
Datasheet
Datasheet 3530355 Klingspor DK 612 B Supra 325724 Drill bit 71 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3530355 Klingspor DK 612 B Supra 325724 Drill bit 71 mm 1 pc(s)
Information
Information 3530355 Klingspor DK 612 B Supra 325724 Drill bit 71 mm 1 pc(s)
Description
The laser-welded DK 612 B Supra drill crown is Ideal for fast drilling of all types of concrete. The versatile professional drill crown for daily use offers high aggressiveness and very long shelf life.
