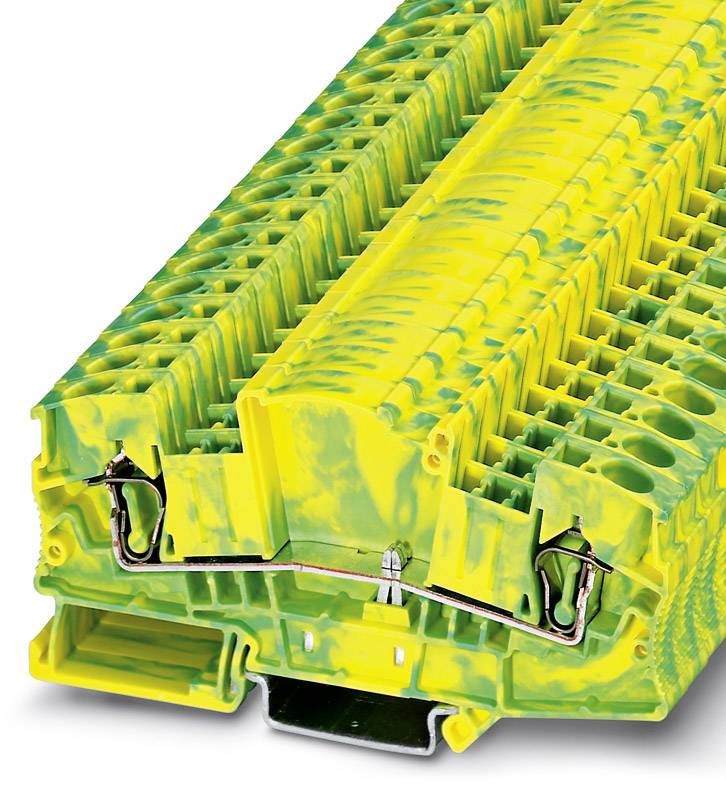

Image similar
Image similar
Knife disconnect terminal block MTKD-P/P 3100020 Phoenix Contact
EAN:
Part number:
Item no:
Product type
Continuity
Connection
Screws
Cross section (flexible) (max.)
2.5 mm²
Cross section (inflexible) (max.)
4 mm²
Nominal current - rounded value
16 A
Datasheet (PDF)
Number (Package size 50 pc(s))
Total (€ 3.70 / piece)
€ 184.87
plus VAT.
14-day return policy included
Technical specifications
- Product type
Continuity
- Connection
Screws
- Cross section (flexible) (min.)
0.2 mm²
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (min.)
0.2 mm²
- Cross section (inflexible) (max.)
4 mm²
- AWG (min.)
24
- AWG max.
14
- Clamp width
5.2 mm
- No. of rows
1
- Number of pins
2
- Factory colour
Grey
- Nominal current
16 A
- Nominal current - rounded value
16 A
- Nominal voltage
400 V
- Stripping length (max.)
7 mm
- Manufacturer part #
3100020
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
MTKD-P/P
- Dim
(L x W x H) 46.2 x 5.2 x 39.9 mm
- Width
5.2 mm
- Height
39.9 mm
- Length
46.2 mm
- Contamination level
3
- Flammability rating
V0
- Insulation material
PA
- Insulation
PA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 565263 Knife disconnect terminal block MTKD-P/P 3100020 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 565263 Knife disconnect terminal block MTKD-P/P 3100020 Phoenix Contact
Description
Knife disconnect terminal block, Connection type: Screw connection, Cross section: 0.2 mm² - 4 mm², AWG: 24 - 12, Nominal current: 16 A, Nominal voltage: 400 V, Length: 46 mm, Width: 5.2 mm, Color: gray, Assembly: NS 35/7,5, NS 35/15, NS 32
Hints
Special order, no right of withdrawal.
