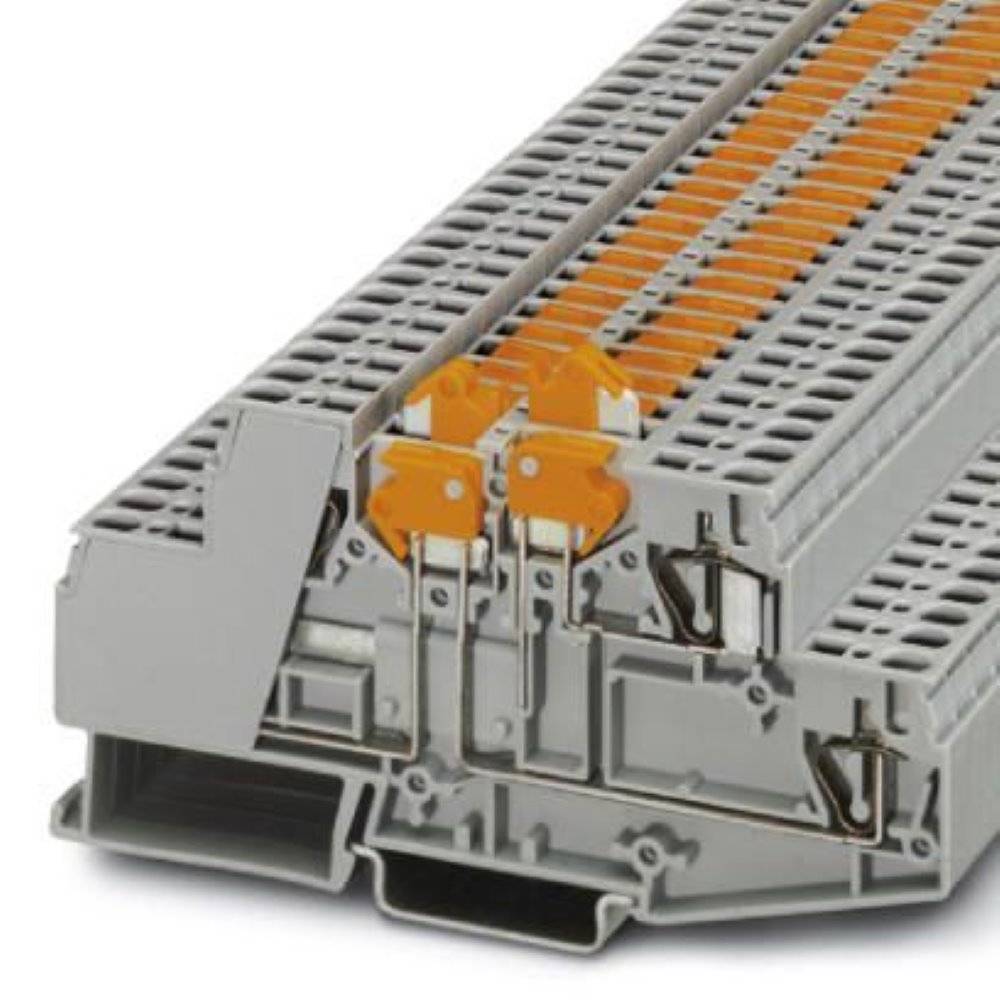

Image similar

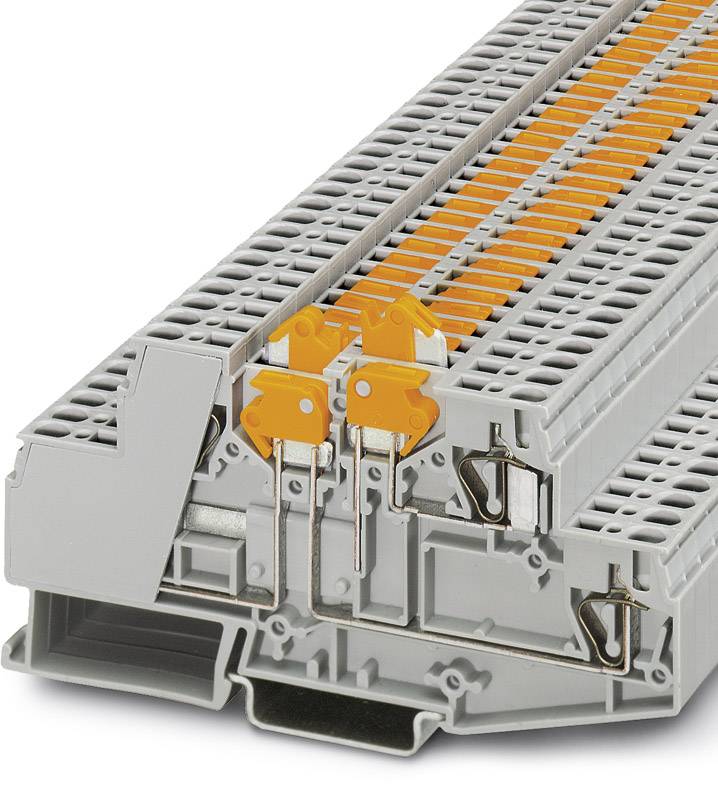

Image similar
Knife disconnect terminal block ZDMTK 2,5 3005798 Phoenix Contact
EAN:
Part number:
Item no:
Product type
N terminal
Connection
Pull spring
Cross section (flexible) (max.)
2.5 mm²
Cross section (inflexible) (max.)
4 mm²
Nominal current - rounded value
16 A
Datasheet (PDF)
Number (Package size 50 pc(s))
Total (€ 13.87 / piece)
€ 693.28
plus VAT.
14-day return policy included
Highlights & Details
Knife disconnect terminal block ZDMTK 2,5
- ZDMTK 2,5
Technical specifications
- Product type
N terminal
- Connection
Pull spring
- Cross section (flexible) (min.)
0.2 mm²
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (min.)
0.2 mm²
- Cross section (inflexible) (max.)
4 mm²
- AWG (min.)
24
- AWG max.
12
- Clamp width
6.2 mm
- No. of rows
2
- Number of pins
4
- Factory colour
Grey
- Nominal current
16 A
- Nominal current - rounded value
16 A
- Nominal voltage
400 V
- Min. stripping length
8 mm
- Stripping length (max.)
10 mm
- Manufacturer part #
3005798
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
ZDMTK 2,5
- Dim
(L x W x H) 107 x 6.2 x 55 mm
- Width
6.2 mm
- Height
55 mm
- Length
107 mm
- Contamination level
3
- Flammability rating
V0
- Insulation material
PA
- Insulation
PA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 565333 Knife disconnect terminal block ZDMTK 2,5 3005798 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 565333 Knife disconnect terminal block ZDMTK 2,5 3005798 Phoenix Contact
Description
Knife disconnect terminal block, Connection type: Spring-cage connection, Cross section: 0.2 mm² - 4 mm², AWG: 24 - 12, Nominal current: 16 A, Nominal voltage: 400 V, Length: 107 mm, Width: 6.2 mm, Color: gray, Assembly: NS 35/7,5, NS 35/15
