Buy Knipex 00 11 06 V01 Universal Key "Construction" for all standard cabinets and shut-off systems 90 mm Switchboard wrench

A hand holds a metal locking mechanism on a post, secured with a chain. The background is out of focus.

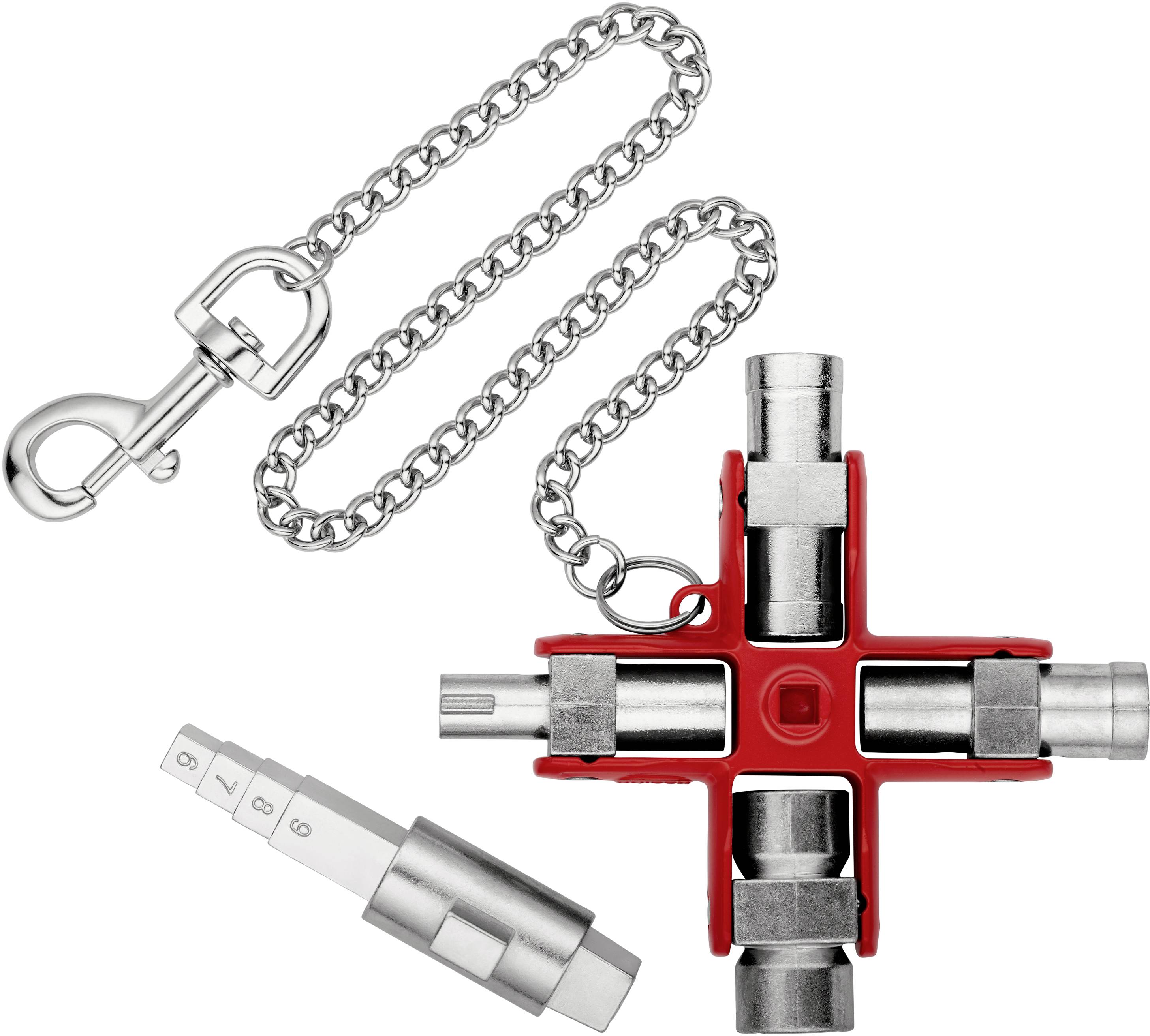

A multi-functional square key with a keyring and removable insert, suitable for various locking systems.

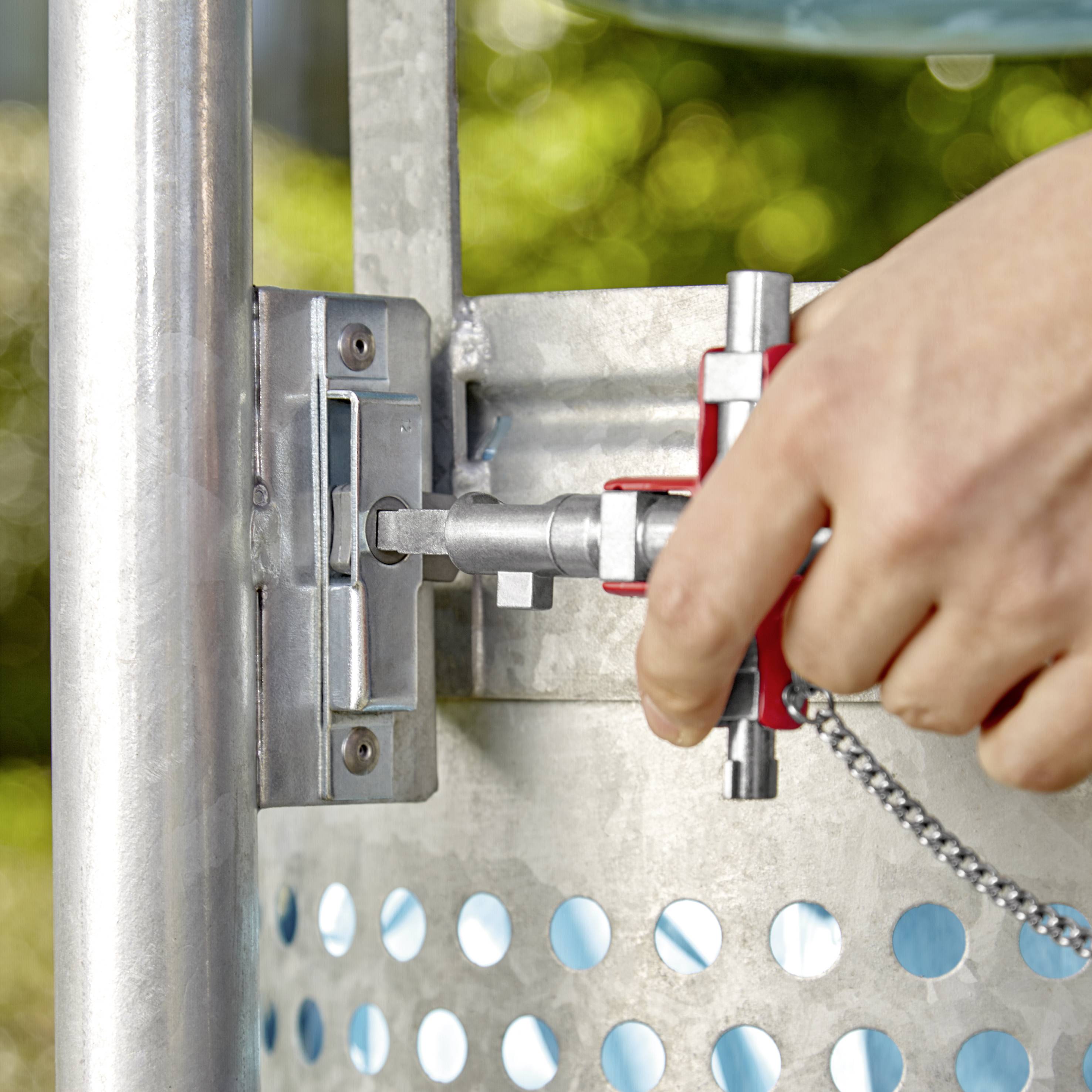

A hand slides a lever into a metal lock. The background is blurred, suggesting an outdoor setting.

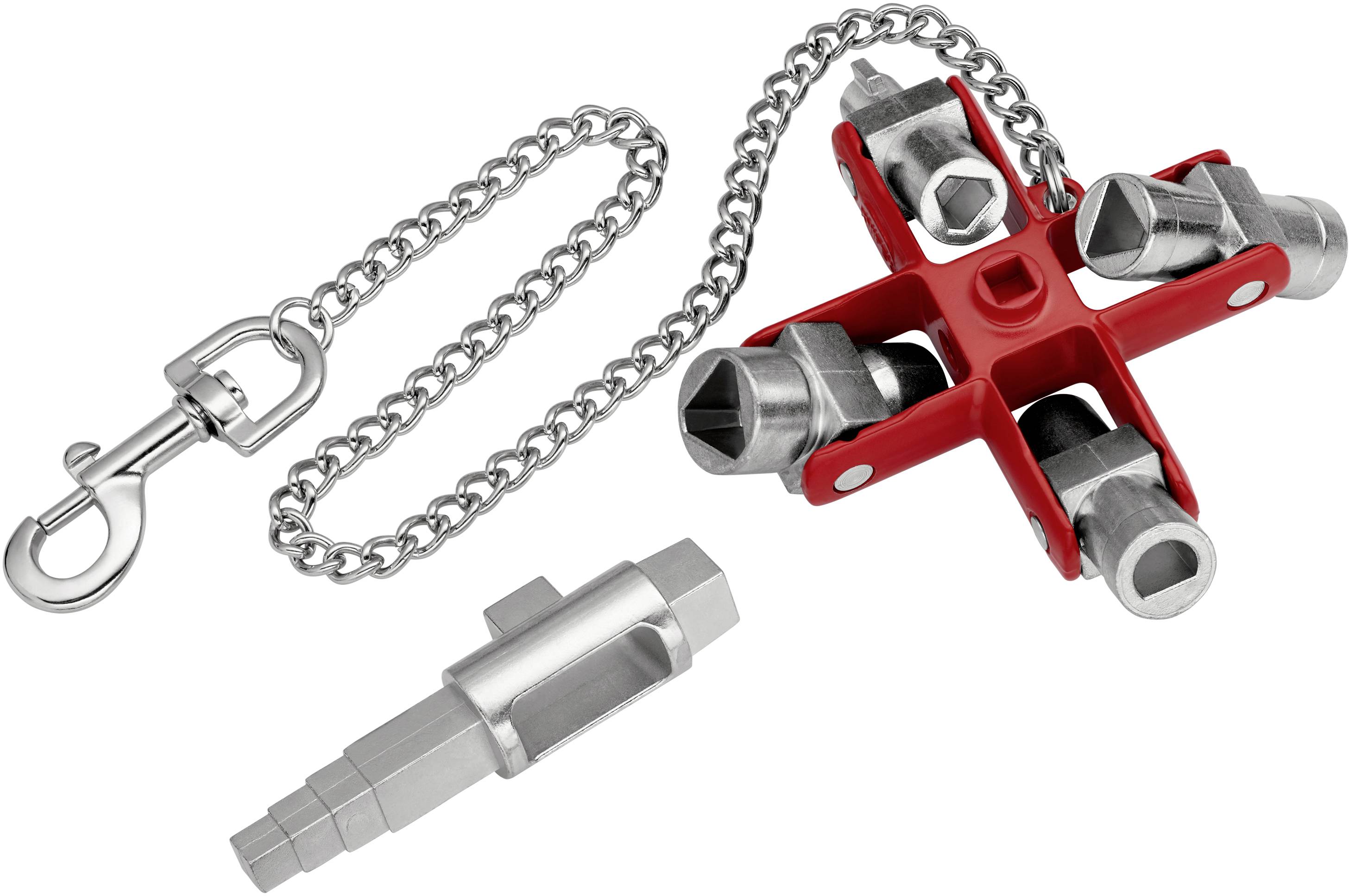

Tool with four different adapters and a chain wrench, typically used for heating valves or water connections.

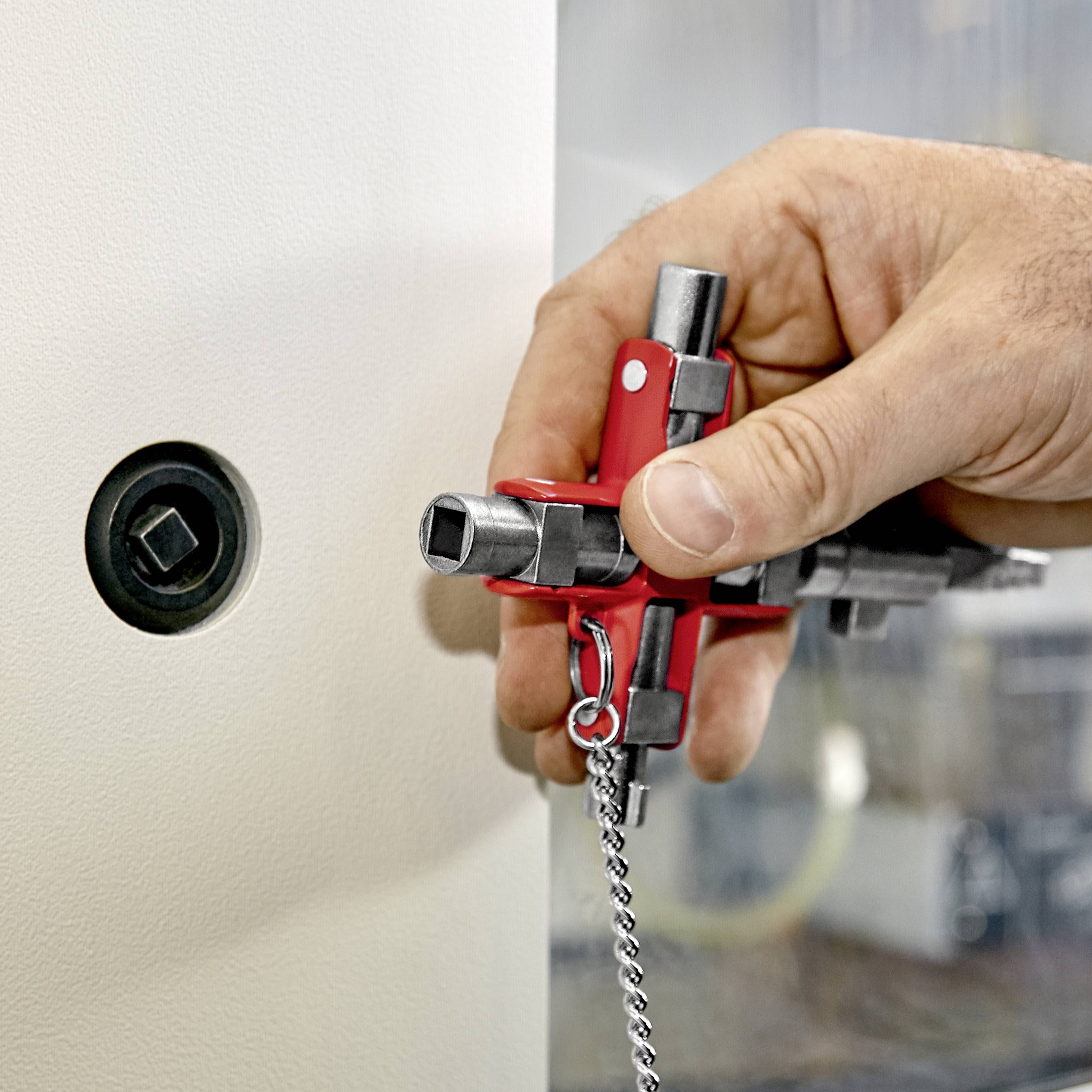

An open cupboard door is being operated with a square-headed key using one hand, with the lock visible.

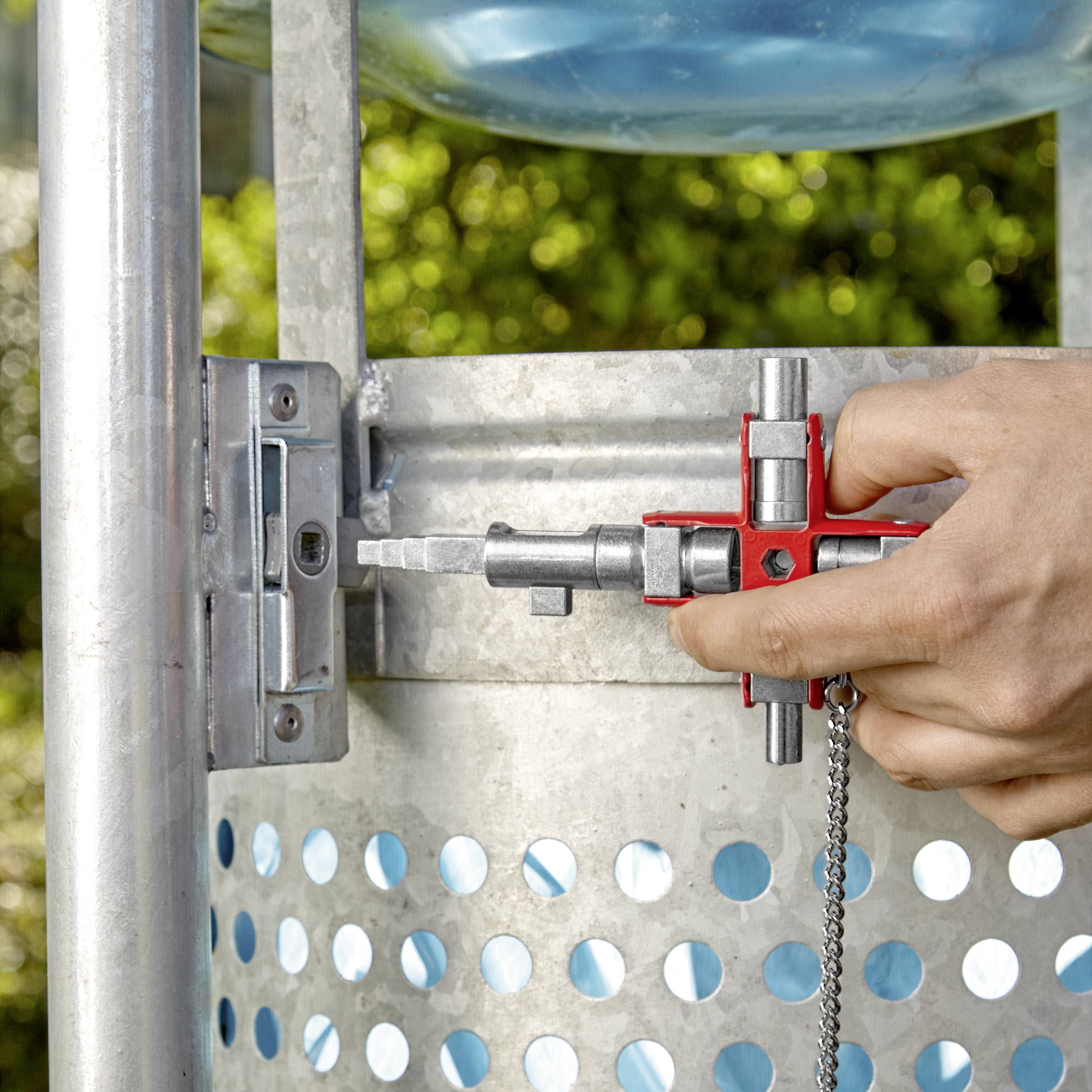

A hand opening a metal lock on a dustbin. The lock is red and the metal bin has round ventilation holes.

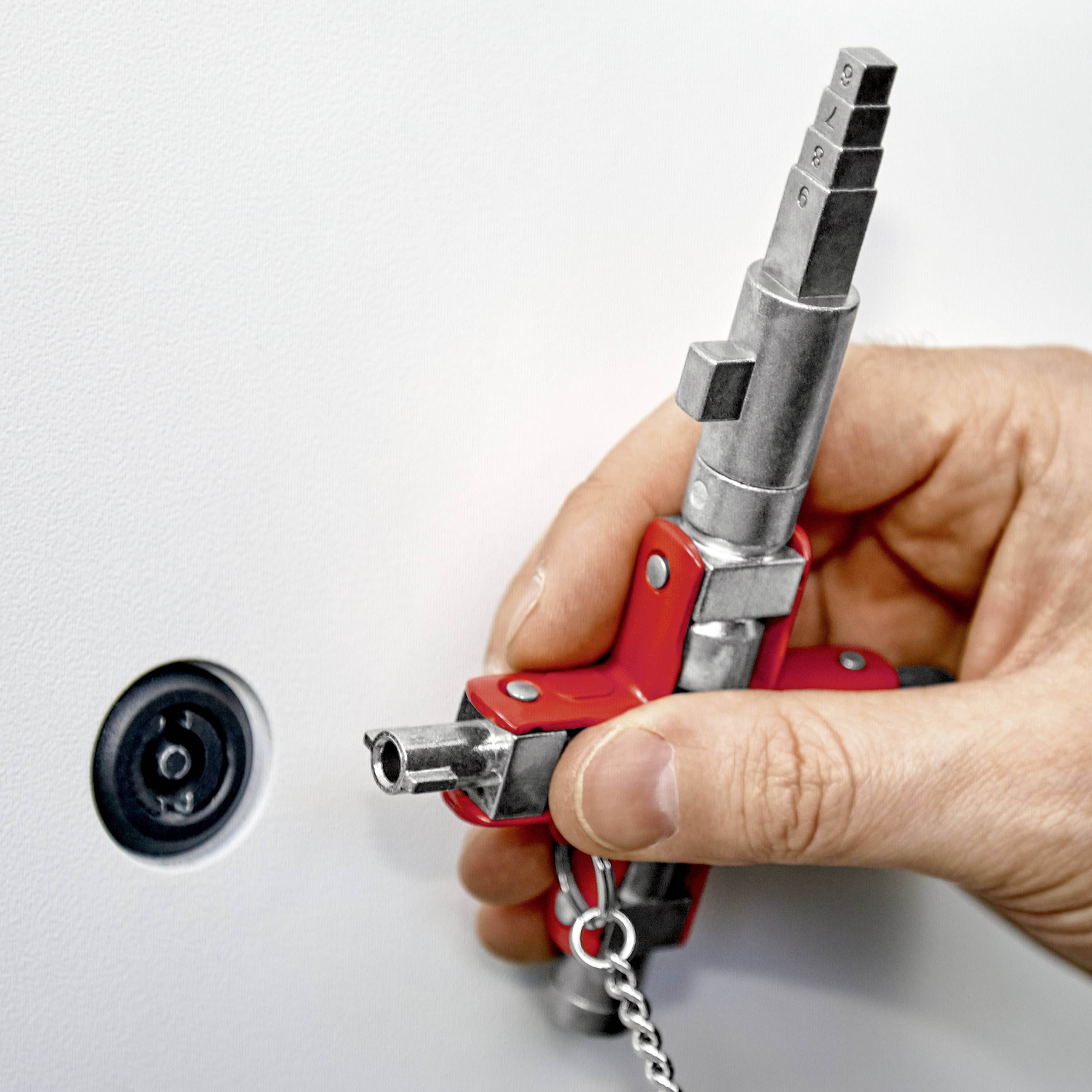

A man is holding a silver security key with multiple cuts, ready to unlock a black circular padlock.

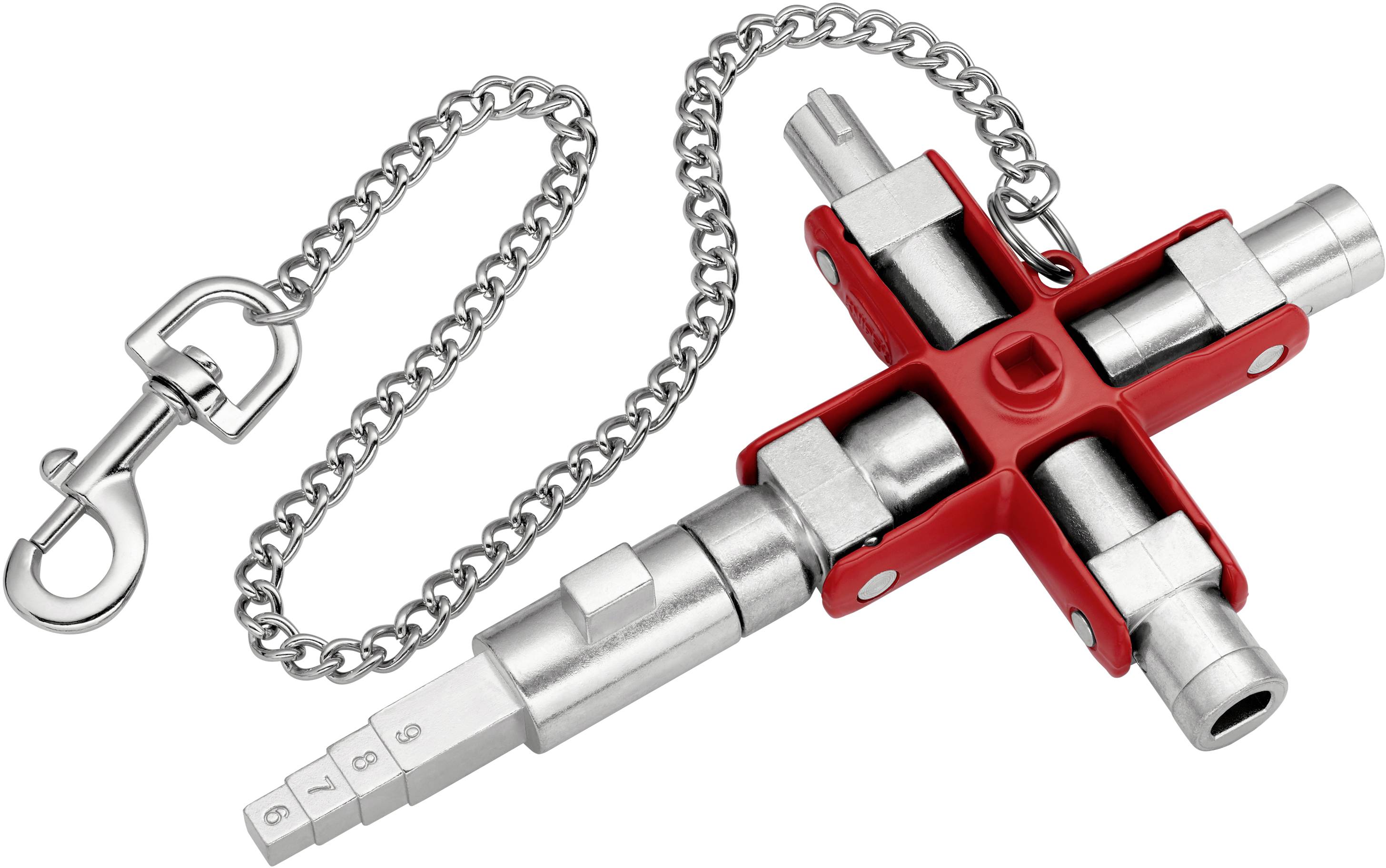

A multifunctional tool with four tubular inserts and a chain with a carabiner. Primarily used for technical and service applications.

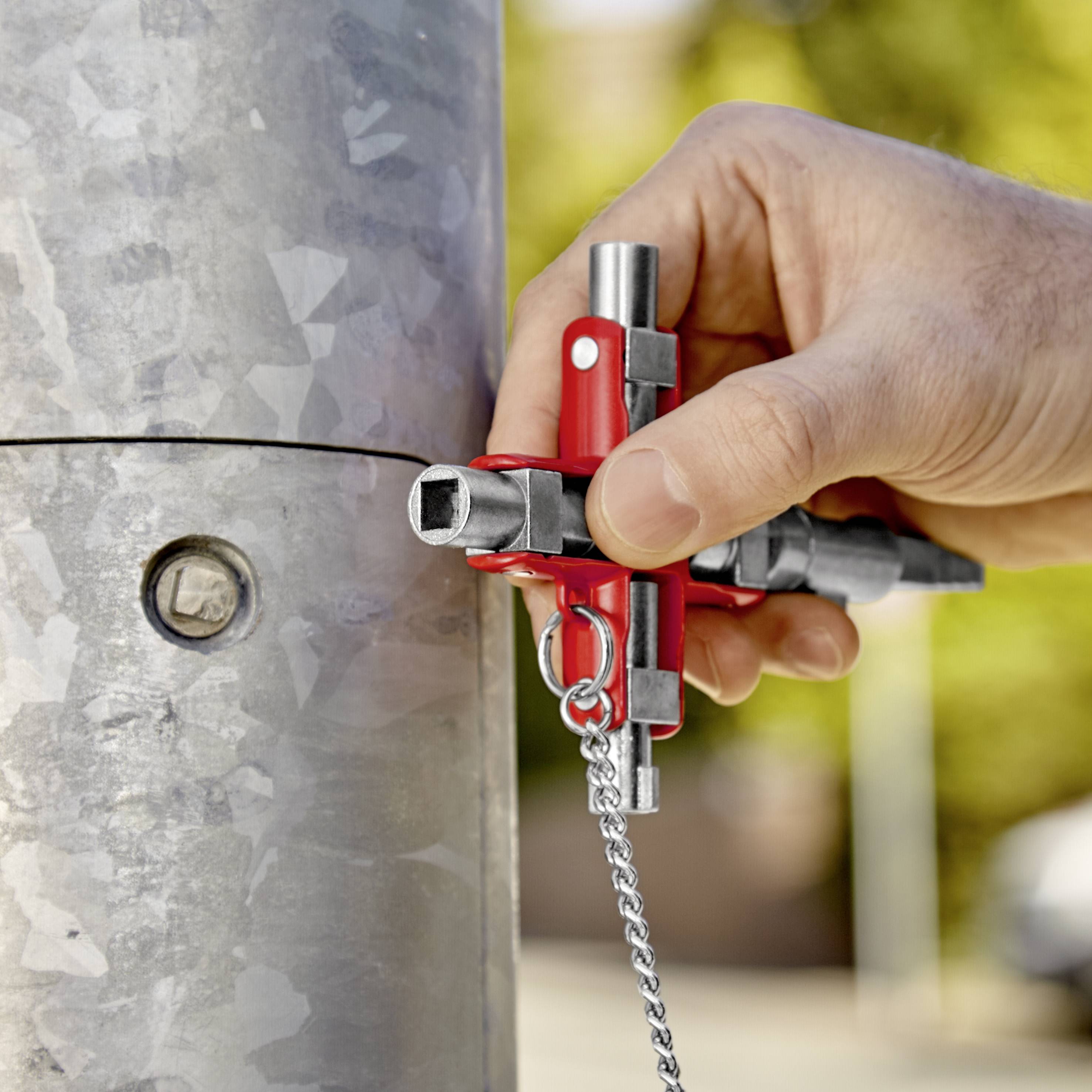

A hand is holding a multi-functional key turner against a metal post. The key is red and has several attachments.

1/9

Product type

Switchboard wrench

Dim

(L x W) 90 mm x 96 mm

Content

1 pc(s)

Width

96 mm

Length

90 mm

Fast track dispatch on Wed, 30 Sep

19 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 36.13 / piece)

€ 36.13

plus VAT.

14-day return policy included

Report legal concerns

Universal Key "Construction" for all standard cabinets and shut-off systems 90 mm

Highlights & Details

For locking systems in electrical engineering, gas and water supply, air conditioning and ventilation technology, industry, building technology, etc.
Nine different closures from zink-druckgu ss in a key
"Construction" with pluggable, magnetic braced attachment: trailer for locks with PZ hole punch and step-square
With bit holder for 1/4" bits with magnet
With removable chain and carabiner hooks

Technical specifications

Capacity square: 5 / 6 / 7 - 8 / 9 - 10 mm
Capacity triangular: 7 / 8 - 9 / 10 - 11 mm
Capacity double-bit key: 3 - 5 mm
Capacity step-like square: 6 / 7 / 8 / 9 / 10 mm
Capacity half-moon: 6 mm
Length: 160 mm
Length: 90 mm

Product type: Switchboard wrench

Dim: (L x W) 90 mm x 96 mm

Content: 1 pc(s)

Width: 96 mm

Length: 90 mm

Weight: 255 g

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 816243 Knipex 00 11 06 V01 Universal Key "Construction" for all standard cabinets and shut-off systems 90 mm Switchboard wrench

Description

For locking systems in electrical engineering, the supply of gas and water, air conditioning and ventilation systems, industry, technical installations in buildings, etc.
9 different die-cast zinc key-profiles in 1 tool
"Construction" version with plug-in, magnetically held support: catch for locks with profile cylinder hole and male square in steps
With bit adapter for 1/4" bits with magnet
With detachable chain and snap hook
Total length: 157 / 95 mm
Zinc die-casted

Features

For locking systems in electrical engineering, gas and water supply, air conditioning and ventilation technology, industry, building technology, etc.
"Construction" with pluggable, magnetic braced attachment: trailer for locks with PZ hole punch and step-square
Removable chain and carabiner hooks
Zinc diecast
Arm length: 157/5 mm.
