Knipex 0303413 Crimper 0.5 up to 2.5 mm²
EAN:
Part number:
Item no:
Technical specifications
- Design/operation: Mechanical
- Press form: Notch
- Product type
Crimper
- Manufacturer part #
0303413
- Range of uses
Insulated cable lugs
- Suitable for
Ferrules
- Crimp area
0.5 up to 2.5 mm²
- Crimp area AWG
10 up to 20 awg
- Crimp area (min.)
0.5 mm²
- Crimp area (max.)
2.5 mm²
- Crimp area AWG (min.)
20 awg
- Crimp area AWG (max.)
10 awg
- Length
230 mm
- Material
Special steel
- Material properties
burnished
- Suitable for
Knipex
- Width
85 mm
- Weight
310 g
- Features
PVC-coated
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2381288 Knipex 0303413 Crimper 0.5 up to 2.5 mm²

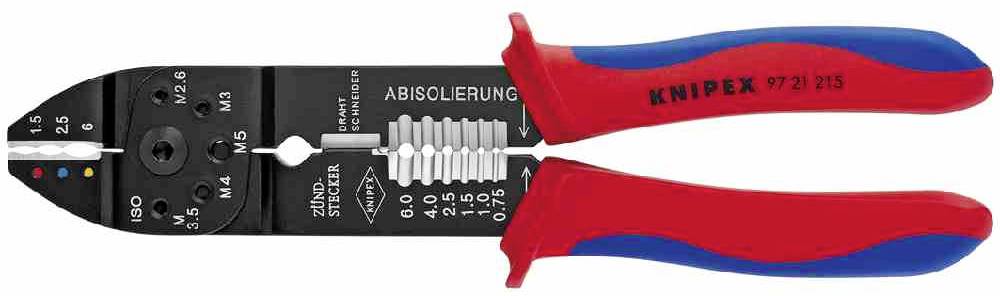

Description
Knipex
Crimping pliers
For cutting cables, stripping wires and crimping insulated and uninsulated cable lugs, connectors and open connectors
With threaded holes for cutting off Cu or MS threaded pins with M 2.6 / 3.0 /3.5 /4.0 and 5.0mm
High-strength special steel
Bronzed head
With plastic grip covers
This text is machine translated.
Crimping pliers
For cutting cables, stripping wires and crimping insulated and uninsulated cable lugs, connectors and open connectors
With threaded holes for cutting off Cu or MS threaded pins with M 2.6 / 3.0 /3.5 /4.0 and 5.0mm
High-strength special steel
Bronzed head
With plastic grip covers
This text is machine translated.
