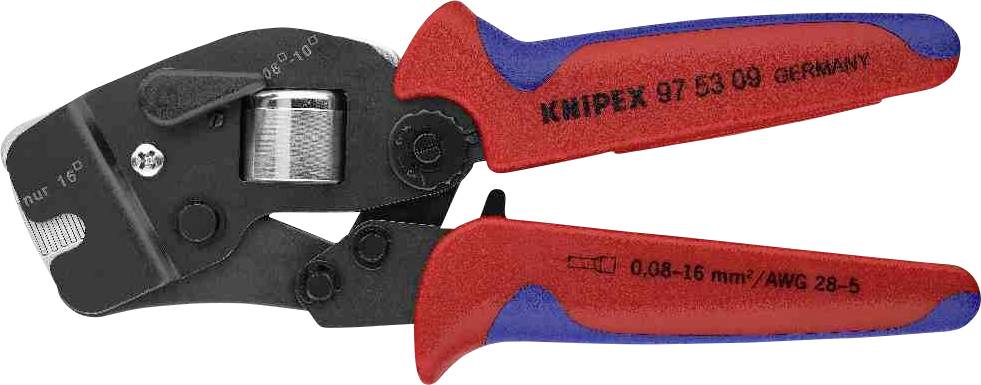

Knipex 0304475 Crimper Ferrules 0.08 up to 16 mm²
EAN:
Part number:
Item no:
Technical specifications
- Design/operation: Mechanical
- Press form: Notch
- Product type
Crimper
- Manufacturer part #
0304475
- Range of uses
Ferrules
- Crimp area
0.08 up to 16 mm²
- Crimp area AWG
0 up to 0 awg
- Crimp area (min.)
0.08 mm²
- Crimp area (max.)
16 mm²
- Crimp area AWG (min.)
0 awg
- Crimp area AWG (max.)
0 awg
- Length
190 mm
- Width
115 mm
- Height
115.0000 mm
- Weight
480 g
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2381363 Knipex 0304475 Crimper Ferrules 0.08 up to 16 mm²
Description
For pressing of wire end sleeves DIN 46228 Part 1 + 4 Self-adjusting to the desired wire end sleeve size: No crimping errors by using the wrong crimp insert. Frontal introduction of the wire end sleeves into the tool. consistently high crimping quality through locking device (can be unlocked) Crimp pressure is precisely set (calibrated) at the factory, adjustable. Power strengthening through lever transmission for fatigue-free working High operating comfort through handy design and low weight. Crimping from 0.08 to 10.0 mm² and 16.0 mm² in a profile. With lever for setting the crimp range 0.08 to 10 or 16.0 mm². Particularly suitable for all twin wire-end sleeves up to 2 x 6 mm² or 2 x AWG 8. Chromium-vanadium electro-steel in special quality, oil-hardened
