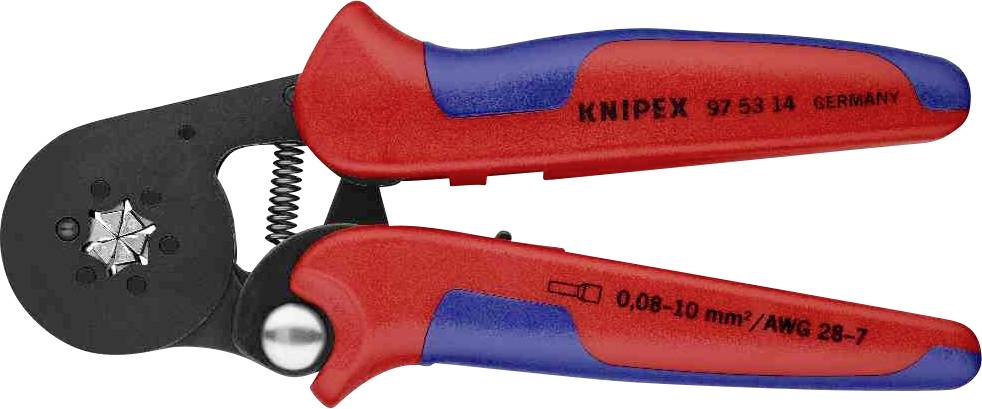

Knipex 0304849 Crimper Ferrules 0.08 up to 6 mm²
EAN:
Part number:
Item no:
Technical specifications
- Design/operation: Mechanical
- Press form: Notch
- Product type
Crimper
- Manufacturer part #
0304849
- Range of uses
Ferrules
- Crimp area
0.08 up to 6 mm²
- Crimp area AWG
0 up to 20 awg
- Crimp area (min.)
0.08 mm²
- Crimp area (max.)
6 mm²
- Crimp area AWG (min.)
20 awg
- Crimp area AWG (max.)
0 awg
- Length
180 mm
- Width
176.0000 mm
- Height
74.0000 mm
- Weight
410 g
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2380879 Knipex 0304849 Crimper Ferrules 0.08 up to 6 mm²
Description
Less grip. For pressing of wire end sleeves DIN 46228 Part 1 + 4 Self-adjusting adjustment to the desired wire sleeve size. consistently high crimping quality through locking device (can be unlocked) Crimp-pressure is set precisely ex-factory (calibrated) Power strengthening through lever transmission for fatigue-free working High operating comfort through handy design and low weight. Hexagonal pressing with a capacity expansion up to 10 mm². Hexagonal pressing for cramped connection dimensions. Particularly suitable for all twin wire-end sleeves up to 2 x 4 mm² or 2 x AWG 10. Chromium-vanadium electro-steel in special quality, oil-hardened
This text is machine translated.
This text is machine translated.
